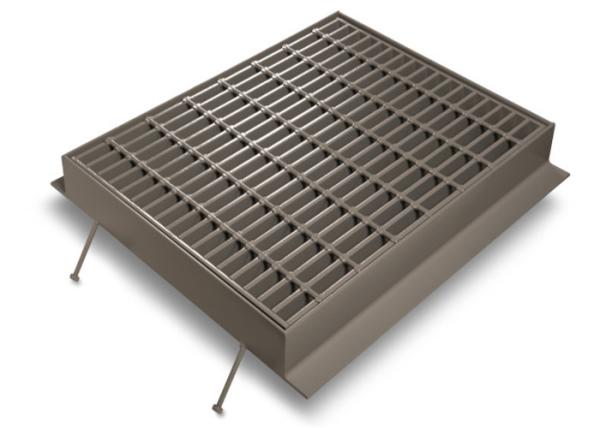

Silver Channel Drain Grate Cover , Low Carbon Galvanised Drainage Grates
Silver Channel Drain Grate Cover , Low Carbon Galvanised Drainage Grates
Silver Channel Drain Grate Cover , Low Carbon Galvanised Drainage Grates
Silver Channel Drain Grate Cover , Low Carbon Galvanised Drainage Grates
Specifications
Model Number :
galvanized grating ditch gutter cover
Certification :
ISO9001
MOQ :
50 pieces
Supply Ability :
1000t per month
Delivery Time :
3-8 days
Packaging Details :
Pallets in containers packed by steel strap and worthy sea-shipping, or according to the customers' requirements
Product name :
Low Carbon Trench Gutter Ditch Sidewalk Grating Trench Cover Galvanized
Cross bar pitch :
38,50,80,100mm
Beraing bar pitch :
12.5,15,20,25,30,35,40,50mm
Manufacture name :
Baosheng
Color :
Silver
Mesh :
Rectangle, square
Surface treatment :
Untreated, hot galvanized, painted
Advantage :
Easy mantance,heavy duty,anti - sliding
Description

Low Carbon Trench Gutter Ditch Sidewalk Grating Trench Cover Galvanized

Specification

We produce three kinds of steel gratings, they are Plain Style Steel Grating, Serrated Style Steel Grating

and I Bar Type Steel Grating.

We can design and manufacture standard steel grating and in customized shapes per client's

requirements.

They are widely used in steel structure platforms, stair treads, sidewalks,drainages and well covers etc.

Silver Channel Drain Grate Cover , Low Carbon Galvanised Drainage Grates

Tolerance of grating steel

The allowed deviation of length is +0/-5mm, while the allowed deviation of width is +/-5 mm.


The non-perpendicularity of bearing bar is allowed no more than 10% of width of bearing bar.


Cross bar surface should not surpass bearing bar surface 1mm, beginning & end of cross bar should not

surpass the end surfaces of two sides of grating 2mm.

Standard size trench cover details

NO. Bearing
bar pitch

Cross bar

pitch

 Specification of bearing bar load( width × thickness )
20×3 25×3 32×3 40×3 20×5 25×5
1 30 100 G203/30/100 G253/30/100 G323/30/100 G403/30/100 G205/30/100 G255/30/100
50 G203/30/50 G253/30/50 G323/30/50 G403/30/50 G205/30/50 G255/30/50
2 40 100 G203/40/100 G253/40/100 G323/40/100 G403/40/100 G205/40/100 G255/40/100
50 G203/40/50 G253/40/50 G323/40/50 G403/40/50 G205/40/50 G255/40/50
3 60 50 - G253/60/50 G253/60/50 G403/60/50 G205/60/50 G255/60/50
NO. Bearing
bar pitch

Cross bar

pitch

 Specification of bearing bar load( width × thickness )
32×5 40×5 45×5 50×5 55×5 60×5
1 30 100 G325/30/100 G405/30/100 G455/30/100 G505/30/100 G555/30/100 G605/30/100
50 G325/30/50 G405/30/50 G455/30/50 G505/30/50 G555/30/50 G605/30/50
2 40 100 G325/40/100 G405/40/100 G455/40/100 G505/40/100 G555/40/100 G605/40/100
50 G325/40/50 G405/40/50 G455/40/50 G505/40/50 G555/40/50 G605/40/50
3 60 50 G325/60/50 G405/60/50 G455/60/50 G505/60/50 G555/60/50 G605/60/50

Type of saddle clips

Proper grating specifications
A-20 B-20 C-20 Bearing bars at 20mm pitch
A-25 B-25 C-25 Bearing bars at 25mm pitch
A-30 B-30 C-30 Bearing bars at 30mm pitch
A-40 B-40 C-40 Bearing bars at 40mm pitch
A-60 B-60 C-60 Bearing bars at 60mm pitch

Features

1. Anti-corrosive, resisting to acid and alkali

2. Light weight, great load-bearing capacity, on-slip and safe, easy installation

3. Being economical of materials, being sturdy and durable, ventilation

4. Easy to clean and attractive appearance.
