T6 Steel Grating Stair Treads With Yellow Nonskid Nosing Low Carbon Steel
T6 Steel Grating Stair Treads With Yellow Nonskid Nosing Low Carbon Steel
T6 Steel Grating Stair Treads With Yellow Nonskid Nosing Low Carbon Steel
T6 Steel Grating Stair Treads With Yellow Nonskid Nosing Low Carbon Steel
T6 Steel Grating Stair Treads With Yellow Nonskid Nosing Low Carbon Steel
T6 Steel Grating Stair Treads With Yellow Nonskid Nosing Low Carbon Steel
Specifications
Model Number :
Stair Treads
Certification :
sgs
MOQ :
10
Price :
FOB 50-200 USD/PIECE
Payment Terms :
T/T , Western Union, MoneyGram
Supply Ability :
100 tons per week
Delivery Time :
15 days
Packaging Details :
steel belt with square pipe
Type: :
T6 Stair treads
Function: :
Non-slip
End Plates: :
Pre-Punched and Slotted Plates
Twisted Cross Bar Size: :
6mm or 8mm
Cross Bar Pitch: :
50mm, 100mm and etc.
Bearing Bar Pitch: :
25mm, 30mm, 35mm, and 40mm, etc.
Specification: :
G325/40/100
Grating bar type: :
Serrated bar, plain bar, I-bar, Serrated I-bar
Description

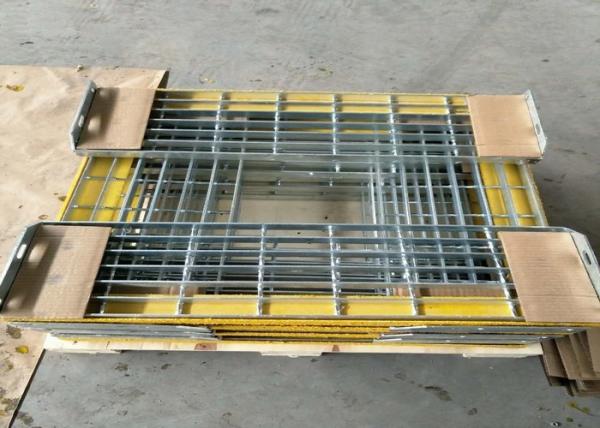

T6 Galvanized Bar Grating Safety Steel Stair Treads with Yellow Nonskid Nosings

Product Description

Product name:
T6 galvanized bar grating safety steel stair treads with yellow nonskid nosings

Product details:
T6 steel stair treads by pressure welding are available in low carbon steel.

They can be made to suit any stair or tread opening and are furnished complete with pre-punched and slotted End Plates (65mmX5mm or 83mmX5mm, etc) ready to bolt to the stringers.

The End Plates can also be custom made as per the customer's requirements.

T6 steel stair treads are supplied with 70mmX30mmX3mm abrasive nosings, which are yellow to give high definition in low light.

T6 steel stair treads are usually hot-dip galvanized, except for nosings.

T6 Steel Bar Grating Stair Treads are used in many architectural, commercial, and industrial applications.

Pitch of Bearing bar (mm)

Cross-bar Pitch
(mm)		 Specification of bearing bar (depth × thickness) mm
32×5 40×5 45×5 50×5 55×5 60×5
30 100 G325/30/100 G405/30/100 G455/30/100 G505/30/100 G555/30/100 G605/30/100
50 G325/30/50 G405/30/50 G455/30/50 G505/30/50 G555/30/50 G605/30/50
40 100 G325/40/100 G405/40/100 G455/40/100 G505/40/100 G555/40/100 G605/40/100
50 G325/40/50 G405/40/50 G455/40/50 G505/40/50 G555/40/50 G605/40/50
60 50 G325/60/50 G405/60/50 G455/60/50 G505/60/50 G555/60/50

G605/60/50


Bearing bar type


Flat bar
I bar
Serrated bar

Cross bar type
Twisted bar
Round bar
flat bar

Production process
welded
Pressure locked

Surface treatment
Self-colour
Galvanized
painted

application
Platform
walkway&floor
Trench cover
Steel stair treads

Suspended ceiling
Barrier fence


4.steel grating standard-- steel platform grating


Steel Grating Standard

Steel Grating Standard
Steel Standard
Galvanizing Standard

China Standard
YB/T 4001.1-2007
GB700-88
GB/T13912-2002

USA Standard
ANSI/NAAMM (MBG531)
ASTM (A36)
ASTM (A123)

U.K. Standard
BS4592
BS4360 (43A)
BS729

Australia Standard
AS1657
AS3679
AS1650

Deutsche Standard
DIN24537
DIN17100-80
DIN50976

ProductsT6 Steel Grating Stair Treads With Yellow Nonskid Nosing Low Carbon Steel

Our safety yellow abrasive nosings have the following beneficial features:
1. Provides long lasting, impact resistant service in industrial applications
2. Extremely hard combined with a tough grit
3. Aggressive non-slip surface even when wet, oily, greasy or dusty
4. Excellent chemical, UV and corrosion resistance
5. Does not introduce a trip hazard, or significantly increase the height of a step
6. Cleans readily with non-solvent cleaner and stiff brush
7. Easily installed either during new construction or as a retrofit item
8. Wide range of standard sizes, surface grits
9. Suitable for both interior and exterior use
10. Protects and highlights leading edge of step
