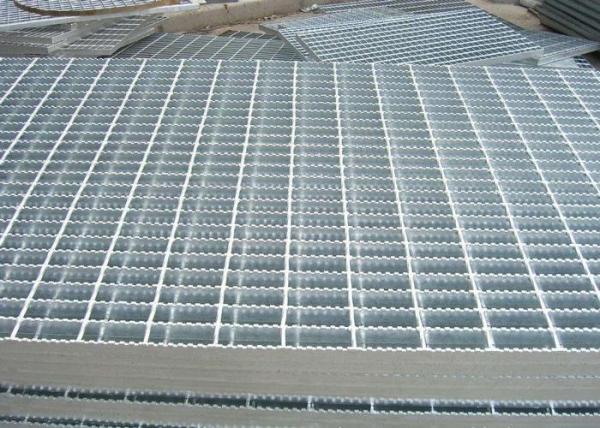

Galvanized Serrated Steel Grating For Floor Plate Q235low Cardon Material
Galvanized Serrated Steel Grating For Floor Plate Q235low Cardon Material
Galvanized Serrated Steel Grating For Floor Plate Q235low Cardon Material
Galvanized Serrated Steel Grating For Floor Plate Q235low Cardon Material
Specifications
Model Number :
SSG-01
Certification :
ISO9001:2008
MOQ :
2PCS
Payment Terms :
T/T, L/C
Supply Ability :
2000TONS
Delivery Time :
10DAYS
Packaging Details :
With steel belt and square tube
Welding Way :
Electrical forged welding, hand welding
Cross Bar Pitch :
38mm,50mm,100mm etc
Bearing bar size :
25*3, 30*3,50X5mm
Bearing bar spacing :
30mm,35mm,40mm or customized
Type :
Welded steel grating, pressure-locked,Socket-welding
Cross bar pitch :
100mm
Feature :
Easily assembled
Width :
25 mm ,30 mm, 32 mm, 38 mm,40mm as your request
Description

Q235 Material Galvanized Serrated Steel Bar Grating For Floor Plate

Description:

1. Bearing Bar (Load Bar) Specifications (mm):
The specification of plain type and serrated type bearing bar is 25 x 3 to 100 x 8; The specification of I-section type is 25 x 5 x 3, 32 x 5 x 3, 38 x 5 x 3, 40 x 5 x 3, 50 x 5 x 3, 50 x 7 x 4, 55 x 7 x 4, 60 x 7 x 4, 65 x 7 x 4, 70 x 7 x 4, 75 x 7 x 4, etc.

2. Bearing Bar Pitch (center to center):
12.5, 25, 30, 30.16, 32.5, 34, 40, 41.25, 45, 50, 60, 60.32, 80, 100 mm etc, also be according to client's requirement and 30, 40, 60mm are recommended, America standard is available <1'' x 3/16'', 1 1/4'' x 3/16'', 1-1/2'' x 3/16'', 1'' x 1/4'', 1-1/4'' x 1/4'', 1 1/2'' x 1/4''(19-w-4) and so on. >

3. Material:
Mild Steel (Low Carbon Steel) or Stainless Steel

4. Surface Treatment:
Untreated, Painting or Hot DIP Galvanizing

5. Steel grating standards:
A) China: YB/T4001-1998
B) USA: ANSI/NAAMM (MBG531-88)
C) UK: BS4592-1987
D) Australia: AS1657-1985
E) Japan: JJS

Steel Grating Standard Steel Standard Galvanized Standard
China standard YB/T 4001.1-2007 GB/T 13912-2002
USA standard ANSI/NAAMM(MBG531) ASTM(A123)
U.K.standard
BS4592
 BS729
Australia standard AS1657 AS1650

Product Name Serrated Steel Grating
Material Low Carbon Steel/Stainless Steel
Grade CN:Q235,Q345, US:A36,UK:43A
Standard CN: YB/T4001-1998, US: ANSI/NAAMM, UK: BS4592-1987, AUS1657-1988, JJS
Certification CE, GOST, ISO9001, ISO14001, HSE
Bearing bar size 20X5, 25X3, 25X4, 25X5, 30X3, 30X4, 30X5, 32X3, 32X5, 40X5, 50X4... 75X8, 100X8mm, etc
Bearing bar pitch 20,25,30,32.5,34.3,40,50,60,62,65mm
Bearing bar type Plain, Serrated (tooth-like), I bar (I section), Serrated-I
Cross bar size 5X5, 6X6, 8X8mm (twisted bar)/5, 6, 8mm ( round bar)
Cross bar pitch 40, 50, 60, 65, 76, 100, 101.6, 120, 130mm, etc.
Panel size 3x20ft,3x24ft,3x30ft,5800x1000,6096x1000,7315x1000, as request
Surface treatment Untreated, hot DIP galvanized, cold DIP galvanized, painted, powder coated, pickling, electrolytic polishing, or as customers’ requirement.
Galvanization Standard CN: GB/T13912, US: ASTM (A123), UK: BS729
Color
Silver/Black
Application petroleum and chemical, port, power, transportation, papermaking, medicine, steel and iron, food, municipality, real estate, manufacturing

Galvanized Serrated Steel Grating For Floor Plate Q235low Cardon Material

Galvanized Serrated Steel Grating For Floor Plate Q235low Cardon Material

Application:

Serrated galvanized anti slip grating used in walkway flooring, catwalk, mezzanines/decking, stair tread, fencing, ramps, dock, trench cover, drainage pit cover, maintenance platform, pedestrian/crowded pedestrian, factory, workshop, motor rooms, trolley channel, heavy loading area, boiler equipment and heavy equipment area, office buildings, apartments, train stations, department, stores, hospitals, amusement parks,hoggery, welded bridge grating etc

Packaging and shipping:

1. steel grating panels packed in bundle then fixed by steel or plastic belt onto metal or wooden pallets as the general export package. The pallets size

2. Customers' requirement is accepted.
