Q235 Carbon Steel Bar Grating , Galvanised Steel Grating Flooring ISO9001 Approval
Q235 Carbon Steel Bar Grating , Galvanised Steel Grating Flooring ISO9001 Approval
Q235 Carbon Steel Bar Grating , Galvanised Steel Grating Flooring ISO9001 Approval
Q235 Carbon Steel Bar Grating , Galvanised Steel Grating Flooring ISO9001 Approval
Specifications
Model Number :
SSG-07
Certification :
ISO9001:2008
MOQ :
2PCS
Payment Terms :
T/T, L/C
Supply Ability :
2000TONS
Delivery Time :
10DAYS
Packaging Details :
With steel belt and square tube
steel grating cross bar :
round, twisted bar
Surface Treatment :
Hot dipped galvanized,Painting
Bearing bar size :
25x5,32x5,32x3,35x5,40x3,40x5,55x5 and etc
Cross bar spacing :
50mm,100mm or customized
Color :
Silver, White or as as request
Material :
Q235B, A36, SS400, S235JR, SS301,SS316,SS304L,SS316L
Description

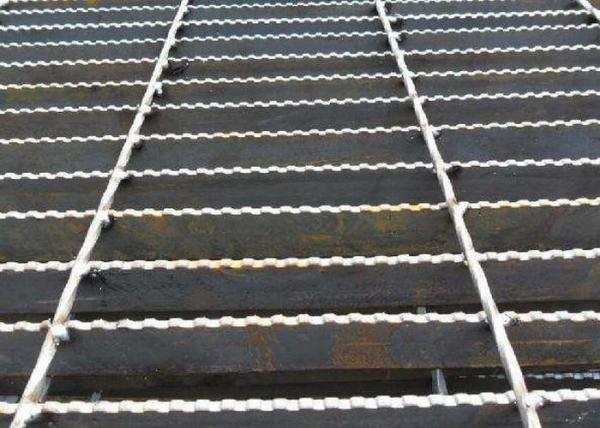

Q235 Iron Hot Dipped Galvanized Surface Finishing Serrated Steel Grating For Walkway

Description:

1. Bearing Bar (Load Bar) Specifications (mm):
The specification of plain type and serrated type bearing bar is 25 x 3 to 100 x 8; The specification of I-section type is 25 x 5 x 3, 32 x 5 x 3, 38 x 5 x 3, 40 x 5 x 3, 50 x 5 x 3, 50 x 7 x 4, 55 x 7 x 4, 60 x 7 x 4, 65 x 7 x 4, 70 x 7 x 4, 75 x 7 x 4, etc.
2. Bearing Bar Pitch (center to center):
12.5, 25, 30, 30.16, 32.5, 34, 40, 41.25, 45, 50, 60, 60.32, 80, 100 mm etc, also be according to client's requirement and 30, 40, 60mm are recommended, America standard is available <1'' x 3/16'', 1 1/4'' x 3/16'', 1-1/2'' x 3/16'', 1'' x 1/4'', 1-1/4'' x 1/4'', 1 1/2'' x 1/4''(19-w-4) and so on. >

Common specifications:

Steel Grating StandardSteel StandardGalvanized Standard
China standardYB/T 4001.1-2007GB/T 13912-2002
USA standardANSI/NAAMM(MBG531)ASTM(A123)
U.K.standard
BS4592
BS729
Australia standardAS1657AS1650

Product NameSerrated Steel Grating
MaterialLow Carbon Steel/Stainless Steel
GradeCN:Q235,Q345, US:A36,UK:43A
StandardCN: YB/T4001-1998, US: ANSI/NAAMM, UK: BS4592-1987, AUS1657-1988, JJS
CertificationCE, GOST, ISO9001, ISO14001, HSE
Bearing bar size20X5, 25X3, 25X4, 25X5, 30X3, 30X4, 30X5, 32X3, 32X5, 40X5, 50X4... 75X8, 100X8mm, etc
Bearing bar pitch20,25,30,32.5,34.3,40,50,60,62,65mm
Bearing bar typePlain, Serrated (tooth-like), I bar (I section), Serrated-I
Cross bar size5X5, 6X6, 8X8mm (twisted bar)/5, 6, 8mm ( round bar)
Cross bar pitch40, 50, 60, 65, 76, 100, 101.6, 120, 130mm, etc.
Panel size3x20ft,3x24ft,3x30ft,5800x1000,6096x1000,7315x1000, as request
Surface treatmentUntreated, hot DIP galvanized, cold DIP galvanized, painted, powder coated, pickling, electrolytic polishing, or as customers’ requirement.
Galvanization StandardCN: GB/T13912, US: ASTM (A123), UK: BS729
Color
Silver/Black
Applicationpetroleum and chemical, port, power, transportation, papermaking, medicine, steel and iron, food, municipality, real estate, manufacturing


Q235 Carbon Steel Bar Grating , Galvanised Steel Grating Flooring ISO9001 Approval

Application:
Serrated galvanized anti slip grating used in walkway flooring, catwalk, mezzanines/decking, stair tread, fencing, ramps, dock, trench cover, drainage pit cover, maintenance platform, pedestrian/crowded pedestrian, factory, workshop, motor rooms, trolley channel, heavy loading area, boiler equipment and heavy equipment area, office buildings, apartments, train stations, department, stores, hospitals, amusement parks,hoggery, welded bridge grating etc

Packaging and shipping:
1. steel grating panels packed in bundle then fixed by steel or plastic belt onto metal or wooden pallets as the general export package. The pallets size
2. Customers' requirement is accepted.
