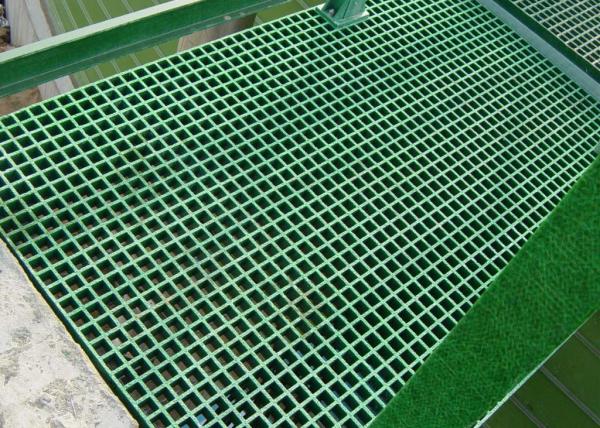

Corrosion Resistance Platic Floor Grating High Strength Customized
Corrosion Resistance Platic Floor Grating High Strength Customized
Corrosion Resistance Platic Floor Grating High Strength Customized
Corrosion Resistance Platic Floor Grating High Strength Customized
Specifications
Model Number :
Q235
Certification :
ISO9001,SGS
MOQ :
5 pcs
Supply Ability :
1000/MONTH
Delivery Time :
6-9 working days
Packaging Details :
1.surface polish 2. bundle package 3. wooden case ,wooden pallet package 4:container or bulk 5. special according to customer request.
Raw material :
Fiberglass and resin
MOQ :
30 pcs
Loading port :
Tianjin
Certificate :
ISO9001 :2008
Anti corrosion: :
Corrosion Resistance
Fire resistance :
ASTME-84
Sample :
free
MSDS :
provided
Fittings :
clips
Description

Corrosion Resistance Platic Floor Grating High Strength Customized

1. Molded Grating

Molded grating is manufactured by laying continuous glass fibres in the mould in the direction of vertical and horizontal, and thoroughly wetted out with resin, layer by layer. When the weaving process is completed, the mould is heated to cure the panel. After curing, the panel is ejected from the mould. The standard panel would have meniscus (concave) top surface. Any process such as post applied grit could be bonded after as a secondary operation. This continuous process produces an integral, one piece panel, which offers excellent corrosion resistance as well as bi-directional strength.

2. Pultruded Grating

Pultruded fiber glass grilles are a kind of profiles with interspace using pultrusion molded type " I " , ' T ',and ' HL ' profiles as load bearing and solid pipe as bar as connection rod, and being assembled by some technical process.

Pultruded FRP grilles has most parts of characters with molded FRP grilles,but the key difference is the brilliant fiber glass content(66%--70%),which will reduce the support strength and project charges under large span than molded FRP grilles.

3. Features of Grating

High anti-fire, High anti-corrosion and anti-aging, High anti-slippery, Light,but high loaded strength, Long service life and maintenance free, Non-conduction or magnetic, Easy installation and rich colors, Various sizes and colors available

Molded FRP grating specidication
No. thickness mesh panel size unit weight
mm mm mm kgs/sq.m
1 13 25x25 1220x3660, 1000x4000 9
25 25x25 1220x3660, 1000x4000 17.3
40 25x25 1220x3660, 1000x4000 27.7
2 13 38x38 1220x3660, 1000x4000 6.8
25 38x38 1220x3660, 1000x4000 13.1
30 38x38 1220x3660, 1000x4000 15.7
38 38x38 1220x3660, 1000x4000 19.9
60 38x38 1220x3660, 1000x4000 31.4
3 13 40x40 1220x3660, 1000x4000 6.5
25 40x40 1220x3660, 1000x4000 12.5
30 40x40 1220x3660, 1000x4000 15
40 40x40 1220x3660, 1000x4000 20
60 40x40 1220x3660, 1000x4000 30
4 13 50x50 1220x3660, 1000x4000 6.1
25 50x50 1220x3660, 1000x4000 11.7
30 50x50 1220x3660, 1000x4000 14
40 50x50 1220x3660, 1000x4000 18.7
50 50x50 1220x3660, 1000x4000 23.4
60 50x50 1220x3660, 1000x4000 28.1
5 25 25x100 1220x3660, 1000x4000 12.8
38 25x100 1220x3660, 1000x4000 19.5
60 25x100 1220x3660, 1000x4000 30.8
6 25 38x100 1220x3660, 1000x4000 9.4
38 38x100 1220x3660, 1000x4000 14.2
60 38x100 1220x3660, 1000x4000

22.5
