Anti Slip Yellow Color Plastic Floor Grating Customized Dimeensions
Anti Slip Yellow Color Plastic Floor Grating Customized Dimeensions
Anti Slip Yellow Color Plastic Floor Grating Customized Dimeensions
Anti Slip Yellow Color Plastic Floor Grating Customized Dimeensions
Specifications
Model Number :
Q235
Certification :
ISO9001,SGS
MOQ :
5 pcs
Price :
USD 500-800 TON
Supply Ability :
1000/MONTH
Delivery Time :
6-9 working days
Packaging Details :
1.surface polish 2. bundle package 3. wooden case ,wooden pallet package 4:container or bulk 5. special according to customer request.
Type :
Molded FRP Grating
Material :
Fiberglass + Resin base (ORTHO,ISO,VE)+Filler(ATH,CAO)
Size :
38*38*38mm，40*40*40mm, etc. can be customized
Color :
Yellow, Orange, Blue, Green, Grey, etc. can be customized
Surface :
Concave,Flat,Gritted
Anti corrosion :
Corrosion Resistance
Sample :
free
Fire resistance :
ASTME-84
Description

Anti Slip Yellow Color Plastic Floor Grating Customized Dimeensions

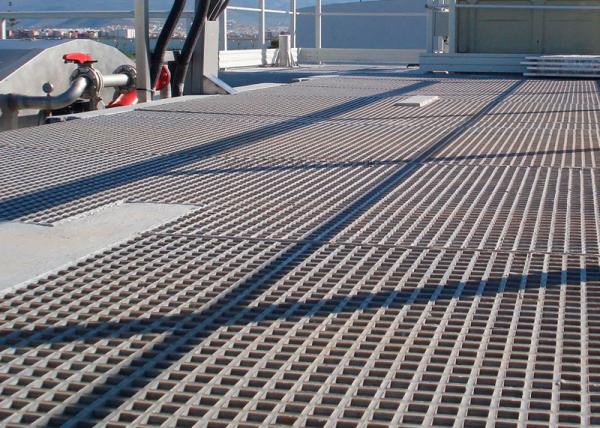

FRP grating is braided through fiberglass and completed casting resin molded as a whole.Widsly used in petroleum,chemicals,electtricity printing and dyeing,it can be served as platform for electroplating,marine exploration,sewage treatment,drilling platform and walkways FRP grating is ideal product for the corrosion environment.

Size:1220*3660mm,1220*2440mm,1000*400mm.

Specification:38*35*38mm,38*38*25mm,50*50*50mm,25*25*30mm

Color:gray,yellow,green,blue,black,red.

Service life span:50years.

Specification

Item no. Height(mm) Mesh Size
(mm)		 Standard Panel Sizes(mm) Bar Thickness
(top/bottom-mm)		 Open Area Weight
(kg/m2)
1 13 50.8×50.8 3660×1220 6.4 / 5.4 76% 5.5
2 15 25.4×25.4 / 50.8×50.8 3660×1220 6.2 / 5 57% 7.2
3 15 38.1×38.1 3660×1225 6.3 / 5.2 69 6.5
4 15 20×20 / 40×40 4047×1247 6.35 / 5.3 47 11.5
5 20 38.1×38.1 3665×1225 6.3 / 5 69 9.3
6 20 12.8×12.8×12.8 / 38.5×38.5 3434×970 7.2 / 6.4 27 18.5
7 25 38.1×38.1 3665×1225 6.35 / 5 69 12.3
8 25 40×40 4047×1007 6.35 / 5 70 12.2
9 25 19×19 / 38×38 4005×1220 6.4 / 5 44 15.5
10 25 25×100(Bearing bars to run width direction) 3007×1009 9.4 / 8(length)
6.4 / 5(width)		 67 13.8
11 25 25.4×101.6(Bearing bars to run width direction) 3660×1220 7 / 5 67 13
12 25 101.6×25.4(Bearing bars to run length direction) 3665×1225 7 / 5 67 13.1
13 30 38.1×38.1 4008×1525 6.6 / 5 68 14.6
14 30 40×40 4047×1007 6.6 / 5 69 14.2
15 30 20×20 / 40×40 4047×1247 7 / 5 42 18.1
16 30 12.7×12.7×12.7 / 38×38 4040×1220 7 / 5 30 23.5
17 30 26×26 / 52×52 4011×1150 6.5/5 56 13.6
18 38 38.1×38.1 3969×1525 7 / 5 66 19.2
19 38 40×40 4047×1007 7 / 5 67 18.8
20 38 152.4×25.4(Bearing bars to run length direction) 3665×1226 7 / 5(length)
9 / 7(width)		 68 20.4
21 38 101.6×38.1(Bearing bars to run length direction) 3660×1220 7 / 5 76 14.5
22 38 19×19 / 38.1×38.1 4045×1220 7 / 5 40 23.5
23 38 20×20 / 40×40 4047×1247 7 / 5 42 22
24 40 40×40 4047×1247 7 / 5 67 20
25 40 220×60 2207×1507 7 / 5 85 9.5
26 40 20×20 / 40×40 4047×1207 7 / 5 42 23.7
27 50 50.7×50.7 3660×1225 8.3 / 5 69 21.5
28 50 50.7×50.7 3660×1225 8.8 / 5 68% 23.5
29 50 25.35×25.35 / 50.7×50.7 3660×1220 8 / 6 47% 26
30 50 152.4×38.1(Bearing bars to run length direction) 3660×1220 9 / 7 72% 20.8
31 50 38.1×38.1 3665×1225 11.5 / 9 48 40.5
32 63 38.1×38.1 3660×1220 9 / 5.8 58% 38.5
33 63 38.1×38.1 3670×1230 12 / 9 46% 52

Anti Slip Yellow Color Plastic Floor Grating Customized Dimeensions
