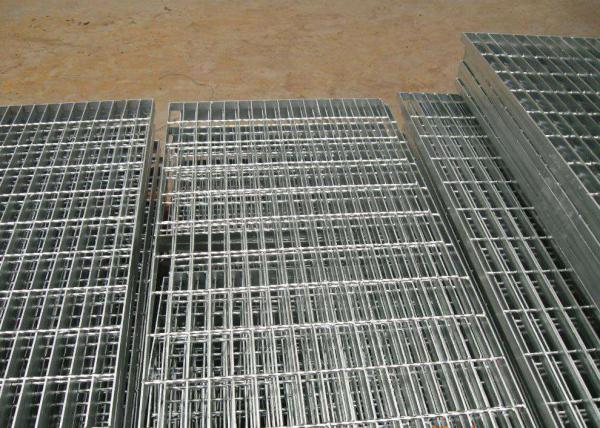

Mild Steel Platform Steel Grating Hot Dipped Galvanized Bar Grating 25mm X 5mm
Mild Steel Platform Steel Grating Hot Dipped Galvanized Bar Grating 25mm X 5mm
Mild Steel Platform Steel Grating Hot Dipped Galvanized Bar Grating 25mm X 5mm
Mild Steel Platform Steel Grating Hot Dipped Galvanized Bar Grating 25mm X 5mm
Specifications
Model Number :
platform steel grating
Certification :
ISO 9001
MOQ :
2pcs
Supply Ability :
300000 Square Meter/Square Meters per Month
Delivery Time :
Shipped in 20 days after payment
Packaging Details :
Fix with metal belt Packing with pallet ,outside wrap with waterproof plastic film Finial in container
Name :
Mild Steel Platform Steel Grating Galvanzied Bearing Bar 25mm x 5mm
Surface treatment :
Hot dipped galvanized,Untreated,painted
Bearing bar size :
20×3,25×3,25×5,30×3,30×4,30×5,32×3,32×5……45×5mm
Cross bar size :
6mm.8mm.10mm
Cross bar pitch :
38,50,80,100mm
Application :
Platform
Feature :
Corrosion Protection
MOQ :
1PCS
Description

Mild Steel Platform Steel Grating Galvanzied Bearing Bar 25mm x 5mm

1. Material:

Q235 or Stainless Steel

2. Sign of the shape of bearing bars.
F- Plain style
S- Serrated style

I- I-section style

3. Sign of surface treatment
G- Hot galvanizing (it is recommended)
P- Painted
U- untreated

4. Steel Grating Application :

steel bar grating is mainly used in chemical industry, food processing, hydro processing and other industries as listed

  • Power plant
  • Chemical plant
  • Oil Refinery
  • Steel plant
  • Machinery plant
  • Paper-making factory
  • Cement plant
  • Civil engineering
  • Wastewater treatment
  • Pharmacy industry
  • Food processing

​

6. Plain Type Steel Bar Grating

  • Its bearing bar is plain surface
  • Simplicity in design is surpassed by its versatility in usage.From mezzanines, platforms, catwalks, and stairs to fences, benches, racking shelves, and ventilation covers

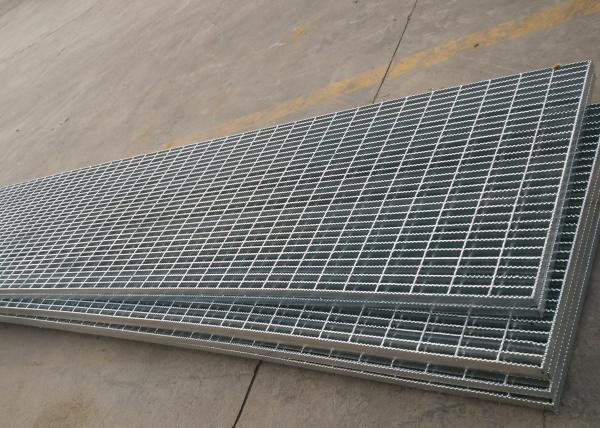

Serrated Type Steel Bar Grating

  • Its bearing bar is serrated surface
  • For applications where extremely slippery conditions prevail,Serrated steel grating weld offers a superior grip surface to the load bearing bars.

7. Steel Grating Application :

steel bar grating is mainly used in chemical industry, food processing, hydro processing and other industries as listed

  • Power plant
  • Chemical plant
  • Oil Refinery
  • Steel plant
  • Machinery plant
  • Paper-making factory
  • Cement plant
  • Civil engineering
  • Wastewater treatment
  • Pharmacy industry
  • Food processing

​

No. Item Description
1 Bearing Bar

25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5,

50x5, 65x5, 75x6, 75x10,100x10mm etc;

I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc

US standard: 1'x3/16', 1 1/4'x3/16', 1 1/2'x3/16',

1'x1/4', 1 1/4'x1/4', 1 1/2'x1/4', 1'x1/8', 1 1/4'x1/8',

1 1/2'x1/8' etc.
2 Bearing Bar Pitch

12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1,

40, 41.25, 60, 80mm etc

US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc.
3 Twisted Cross Bar Pitch 38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2' & 4' etc
4 Material Grade

ASTM A36, A1011, A569, Q235, S275JR, SS304,

Mild steel & Low carbon steel, etc
5 Surface Treatment Black, self colour, hot dip galvanized, painted, spray coating
6 Grating Style Plain / Smooth, Serrated /teeth, I bar, serrated I bar

7

 Standard

China: YB/T 4001.1-2007,

USA: ANSI/NAAMM(MBG531-88),

UK: BS4592-1987,

Australia: AS1657-1985, Japan:JIS
8 Application

-Rotation ways, channels, and platforms for pump rooms and engine rooms in various ships;

-Flooring in various bridges such as railway bridge sidewalks, over-bridges across the street;

-Platforms for oil extraction sites, car washing sites and air towers;

-Fencings for car-parks, buildings and roads; drainage trench covers and drainage pit covers for high strength .

Mild Steel Platform Steel Grating Hot Dipped Galvanized Bar Grating 25mm X 5mm
