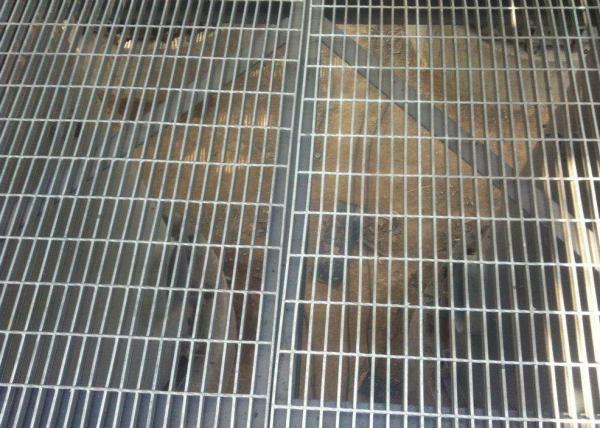

Hot Dipped Galvanized Platform Steel Grating Low Carbon Steel Metal Grate Flooring
Hot Dipped Galvanized Platform Steel Grating Low Carbon Steel Metal Grate Flooring
Hot Dipped Galvanized Platform Steel Grating Low Carbon Steel Metal Grate Flooring
Hot Dipped Galvanized Platform Steel Grating Low Carbon Steel Metal Grate Flooring
Specifications
Model Number :
Platform Steel Grating
Certification :
ISO9001
MOQ :
2PCS
Supply Ability :
300000 Square Meter/Square Meters per Month
Delivery Time :
Shipped in 20 days after payment
Packaging Details :
Fix with metal belt Packing with pallet ,outside wrap with waterproof plastic film Finial in container
Cross bar type :
Twisted bar,Round bar
Cross bar size :
6mm.8mm.10mm
Bearing bar pitch :
20,25,30,35,40,50mm
Cross bar pitch :
38,50,80,100mm
Application :
Platform
Feature :
Corrosion Protection
MOQ :
1PCS
Description

Hot Dipped Galvanized Platform Steel Grating Low Carbon Steel

Floor grating is made of steel flat bars which are placed at a distance of 30mm, 40mm, or 60mm … They are connected together by twist bars to make a solid wire fabric. With high corrosion resistance and 80% open surface, it creates a ventilation of space and light. Therefore, the grating floor is widely used in factories, oil rigs, and ships, …
Material for floor grating:
-Steel flat bar: low carbon steel, such as SS400, A36 …
- Cross steel: 6 × 6 steel bars are twisted to create a non-skid product. All gratings after finishing work are hot dipped galvanized to increase the corrosion resistance for the product.
Floor grating are manufactured from load bearing steel bars which have hot dipped galvanized surfaces so that they have high load bearing capacity and high resistance to harsh environments such as marine environments, acid environments, and so on.
Nowadays, grating is mainly used in some important industries such as petroleum, cement, civil instruction, industrial construction, building construction, … We product grating floor on request.

  • Material:ASTM A36, A1011, A569, Q235, S275JR,SS304, Mild steel & Low carbon steel, etc
  • Type:Welded mesh
  • MOQ:30 sets
  • Surface Treatment: Black, self colour, hot dip galvanized, painted, spray coating
  • Technique: Welded
  • Usage: used in flooring, catwalk, mezzanines/decking, stair tread, fencing, ramp, dock, trench cover
  • Packaging Details:
    Packed with plastic film then on the pallets and then in wooden box
  • Delivery Detail:10-15 days after received
    your deposit
No. Item Description
1 Bearing Bar

25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5,

50x5, 65x5, 75x6, 75x10,100x10mm etc;

I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc

US standard: 1'x3/16', 1 1/4'x3/16', 1 1/2'x3/16',

1'x1/4', 1 1/4'x1/4', 1 1/2'x1/4', 1'x1/8', 1 1/4'x1/8',

1 1/2'x1/8' etc.
2 Bearing Bar Pitch

12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1,

40, 41.25, 60, 80mm etc

US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc.
3 Twisted Cross Bar Pitch 38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2' & 4' etc
4 Material Grade

ASTM A36, A1011, A569, Q235, S275JR, SS304,

Mild steel & Low carbon steel, etc
5 Surface Treatment Black, self colour, hot dip galvanized, painted, spray coating
6 Grating Style Plain / Smooth, Serrated /teeth, I bar, serrated I bar

7

 Standard

China: YB/T 4001.1-2007,

USA: ANSI/NAAMM(MBG531-88),

UK: BS4592-1987,

Australia: AS1657-1985, Japan:JIS
8 Application

-Rotation ways, channels, and platforms for pump rooms and engine rooms in various ships;

-Flooring in various bridges such as railway bridge sidewalks, over-bridges across the street;

-Platforms for oil extraction sites, car washing sites and air towers;

-Fencings for car-parks, buildings and roads; drainage trench covers and drainage pit covers for high strength .

Hot Dipped Galvanized Platform Steel Grating Low Carbon Steel Metal Grate Flooring
