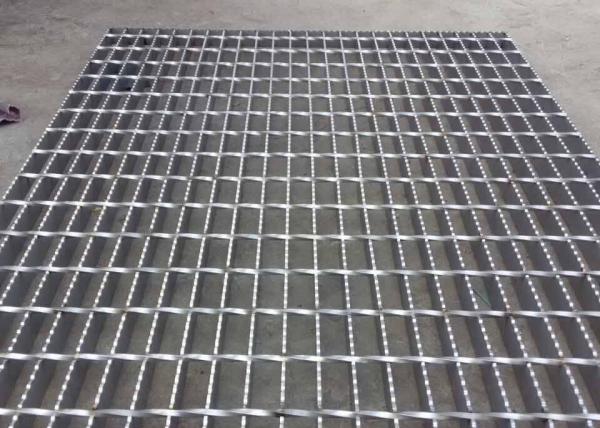

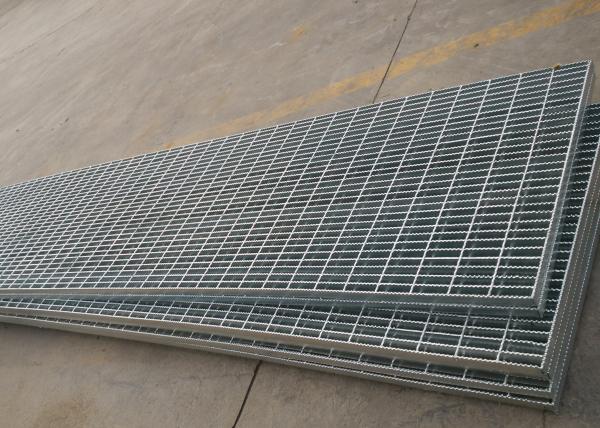

SS Grating Twisted Bar Steel Floor Grating 6 x 6mm Plain Bar 32mm x 5mm
SS Grating Twisted Bar Steel Floor Grating 6 x 6mm Plain Bar 32mm x 5mm
SS Grating Twisted Bar Steel Floor Grating 6 x 6mm Plain Bar 32mm x 5mm
SS Grating Twisted Bar Steel Floor Grating 6 x 6mm Plain Bar 32mm x 5mm
Specifications
Model Number :
Platform steel grating
Certification :
ISO
MOQ :
2pcs
Supply Ability :
300000 Square Meter/Square Meters per Month
Delivery Time :
Shipped in 20 days after payment
Packaging Details :
Fix with metal belt Packing with pallet ,outside wrap with waterproof plastic film Finial in container
Material :
Low carbon steel,Stainless Steel
Surface treatment :
Hot dipped galvanized,Untreated,painted
Bearing bar size :
20×3,25×3,25×5,30×3,30×4,30×5,32×3,32×5……45×5mm
Cross bar type :
Twisted bar,Round bar
Cross bar size :
6mm.8mm.10mm
Bearing bar pitch :
20,25,30,35,40,50mm
Application :
Platform
Feature :
Corrosion Protection
Description

Twisted Bar Platform Steel Grating 6 x 6mm Plain Bar 32mm x 5mm

Platform steel grating consist of a series of bearing bars cross jointed by welding at various intervals with cross bars (twisted square bars, square bars, round bars, flat bars etc.), to form a kind of steel products with square lattices among them.

1. Type :Welded steel grating, pressure locked, socket welding
2. Material:Low carbon steel, stainless steel, aluminum

3. Flat bar specification:

(1)Plain flat bar:

Thickness: 3mm, 5mm.

Height: 25mm, 30mm, 32mm, 40mm, 45mm, 50mm, 60mm, etc.

(2)I-shaped flat bar:

Thickness of both ends: 5mm.

Thickness of the center: 3mm.

Height: 25mm, 32mm, 38mm, 44mm, 50mm, etc.

4. Flat bar spacing: 30mm, 40mm, 60mm,etc.

6. Cross bar sizes: 5x5mm, 6x6mm, 8x8mm, etc.

7. Cross bar spacing: 50mm, 100mm.

8. Length of steel grating plate: common length ≥800mm, some platform cover plate length is 3000-10000mm.

9. Two end types:

Closed end Open end

10. Surface process of gratings: there are three types:hot-dipped galvanized ,electro-galvanized and spraying brushing and soaking.anti-acid and alkali corrosion capacity the range PH6 to PH12.5,a stable protective film will be formed on the zinc surface.it has good anti-corrosive property.

11. Packing conditions of steel grating:normally packed in pilling up ways with two pieces of square wood on both upperand bottom sides.there are four or six pieces of M10 long bolt penetrading the gratings and screwing together.it is suitable for loading and unloading by fork-lift and crane.

12. Steel grating standard:

Country Steel grating standard Steel material standard Hot galvanizing standard
China YB/T4001-1998 GB 700-88 GB/T13912-2002
USA ANSI/NAAMM(MBG531-88) ASTM (A36) ASTM(A123)
England BS4592-1987 BS4360 ( 43A) BS729
Australia AS1657-1992 AS3679 AS1650

No. Item Description
1 Bearing Bar

25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5,

50x5, 65x5, 75x6, 75x10,100x10mm etc;

I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc

US standard: 1'x3/16', 1 1/4'x3/16', 1 1/2'x3/16',

1'x1/4', 1 1/4'x1/4', 1 1/2'x1/4', 1'x1/8', 1 1/4'x1/8',

1 1/2'x1/8' etc.
2 Bearing Bar Pitch

12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1,

40, 41.25, 60, 80mm etc

US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc.
3 Twisted Cross Bar Pitch 38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2' & 4' etc
4 Material Grade

ASTM A36, A1011, A569, Q235, S275JR, SS304,

Mild steel & Low carbon steel, etc
5 Surface Treatment Black, self colour, hot dip galvanized, painted, spray coating
6 Grating Style Plain / Smooth, Serrated /teeth, I bar, serrated I bar

7

 Standard

China: YB/T 4001.1-2007,

USA: ANSI/NAAMM(MBG531-88),

UK: BS4592-1987,

Australia: AS1657-1985, Japan:JIS
8 Application

-Rotation ways, channels, and platforms for pump rooms and engine rooms in various ships;

-Flooring in various bridges such as railway bridge sidewalks, over-bridges across the street;

-Platforms for oil extraction sites, car washing sites and air towers;

-Fencings for car-parks, buildings and roads; drainage trench covers and drainage pit covers for high strength .

SS Grating Twisted Bar Steel Floor Grating 6 x 6mm Plain Bar 32mm x 5mm

SS Grating Twisted Bar Steel Floor Grating 6 x 6mm Plain Bar 32mm x 5mm
