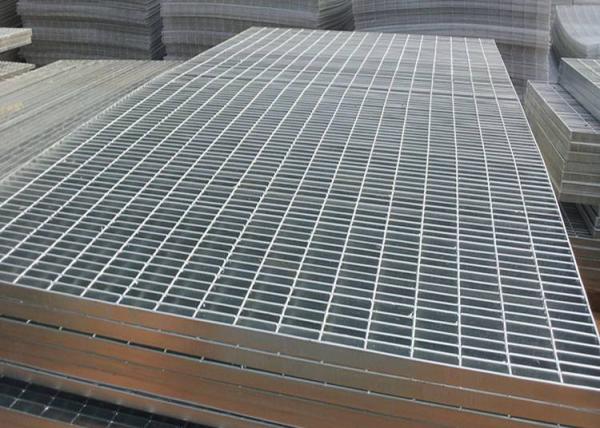

Easy To Install Steel Grating Platform Galvanized Low carbon Steel Mesh Grating Plain Bar
Easy To Install Steel Grating Platform Galvanized Low carbon Steel Mesh Grating Plain Bar
Easy To Install Steel Grating Platform Galvanized Low carbon Steel Mesh Grating Plain Bar
Easy To Install Steel Grating Platform Galvanized Low carbon Steel Mesh Grating Plain Bar
Specifications
Model Number :
Platform steel grating
Certification :
ISO9001
MOQ :
2PCS
Supply Ability :
300000 Square Meter/Square Meters per Month
Delivery Time :
Shipped in10days after payment
Packaging Details :
Fix with metal belt Packing with pallet ,outside wrap with waterproof plastic film Finial in container
Bearing bar type :
Plain type,Serrated type,I type
Bearing bar size :
20×3,25×3,25×5,30×3,30×4,30×5,32×3,32×5…
Cross bar type :
Twisted bar,Round bar
Cross bar size :
6mm.8mm.10mm
Bearing bar pitch :
38,50,80,100mm
Application :
Platform
MOQ :
1PCS
Description

Easy To Install Platform Steel Grating Galvanized Low carbon Steel

1. Plain Type Steel Bar Grating

  • Its bearing bar is plain surface

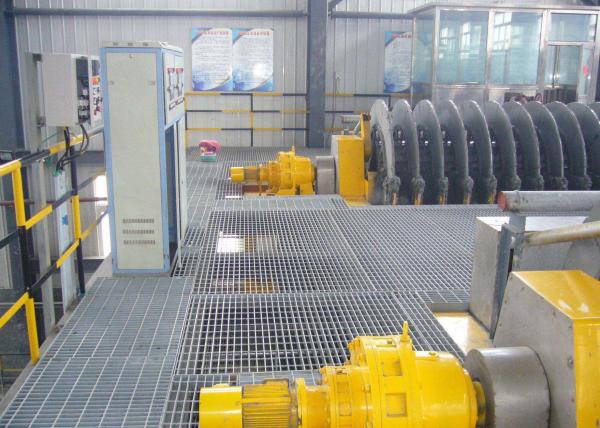

  • Simplicity in design is surpassed by its versatility in usage.From mezzanines, platforms, catwalks, and stairs to fences, benches, racking shelves, and ventilation covers

Serrated Type Steel Bar Grating

  • Its bearing bar is serrated surface
  • For applications where extremely slippery conditions prevail,Serrated steel grating weld offers a superior grip surface to the load bearing bars.

​2. Steel Grating Standard

Country Standard for steel grid Standard for steel material Standard for hot dipped galvanization
China YB/T4001-1998 GB700-88 GB/T13912-92
USA ANSI/NAAMM(MBG531-88) ASTM(A36) ASTM(123)
UK BS4592-1987 BS4360(43A) BS729
Australia AS1657-1985 AS3697 AS1650

3. Advantages

-light weight-easy to install and clean-nodem

-nice appearance-high strength-ventilation and light can pass through

-material saving-slip-resistant and safe

-heavy loading and durable

4. Service

  • 24 hours on-line service
  • Excellent service for pre-sale,on-sale and after-sale
  • Expert at our products
  • Competitive price with superior higher quality products
  • Factory with its own workshop
  • Strict test before its delivery

5. Packing

  • Fix with metal belt
  • Packing with pallet ,outside wrap with waterproof plastic film
  • Finial in container
  • Finial in container
Our Products Steel grating
Material Standard

ASTM A36, A1011, A569, Q235, S275JR,

SS304, Mild steel & Low carbon steel, etc
Bearing Bar

25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5,

40x5, 50x5, 65x5, 75x6, 75x10---100x10mm etc;

I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc

US standard: 1''x3/16'', 1 1/4''x3/16'', 1 1/2''x3/16'', 1''x1/4'',

1 1/4''x1/4'', 1 1/2''x1/4'', 1''x1/8'', 1 1/4''x1/8'', 1 1/2''x1/8'' etc
Bearing Bar Pitch

12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3,

32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc

US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc.
Twisted Cross Bar Pitch 38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2'' & 4'' etc
Surface treatment Black, self colour, hot dip galvanized, painted, spray coating
Grating Style Plain / Smooth, Serrated /teeth, I bar, serrated I bar
Packing 1.LCL: packed with plastic film then on the pallets
2.FCL: Nude packing
3.Other special package according to customers' requirements.
Payment Terms T/T( 30% deposit , 70% balance against BL copy ) ,or L/C, Paypal, Western Union,MoneyGram, Credit Card ,OA
