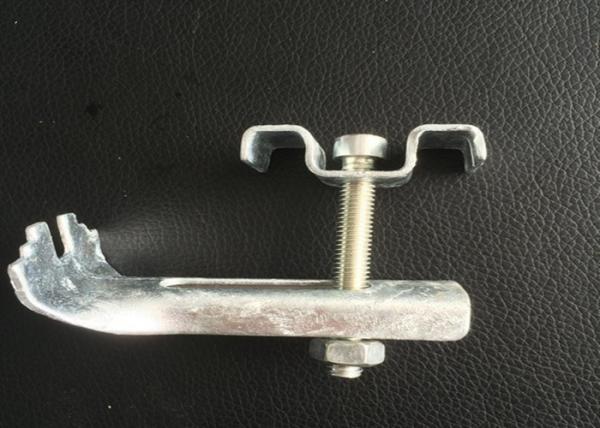

Hot dipped galvanized steel grating clips A type B type C type for install grating
Hot dipped galvanized steel grating clips A type B type C type for install grating
Hot dipped galvanized steel grating clips A type B type C type for install grating
Hot dipped galvanized steel grating clips A type B type C type for install grating
Specifications
Model Number :
steel grating clamps
Certification :
sgs
MOQ :
10 pcs
Price :
FOB 0.3-0.5 USD/PIECE
Payment Terms :
L/C, T/T
Supply Ability :
20000 per month
Delivery Time :
20 days
Packaging Details :
naked or wooden package .
Place of Origin: :
Hebei, China (Mainland)
Model Number: :
Steel grating clamps
Material: :
Iron,Stainless Steel
thickness: :
3mm and 4mm
C-B: :
100mm and 50mm
Bearing Bar: :
5mm and 6mm
China Standards :
YB/T 4001.1-2007
USA Standards: :
ANSI/NAAMM(MBG531-88)
surface: :
untreated, hot dip galvanized, painted
delivery time: :
5days after deposit
Dimensions: :
type A B C
package: :
naked, wood box, as requirement
Description

steel grating clamp for platform

  • Material of steel grating clamp: Low Carbon Steel then galvanized
  • Fabricating Method: The press welded steel grating, requested by the customers, is made of load flat steel

bar and cross rods, placed, horizontally and vertically, and at an equal pitch apart, by welding with 200-ton

hydraulic resistance automatic welding equipment, then cutting, punching and banding ends.

  • Load Bearing Steel Bar Pitch: Pitch between the two neighboring load bearing steel bars is 30mm or 40mm.
  • Cross Rod Pitch: Pitch between two neighboring cross rods is usually 50mm or 100mm.

steel grating clamp standards:

steel grating standrd
steel grating standard steel standard galvanizing standard
China YB/T 4001.1-2007 GB 700-88 GB/T 13912-2002
USA ANSI/NAAMM (MBG531) ASTM (A36) ASTM (A123)
U.K. BS 4592 BS4360 (43A) BS 729
AUS AS 1657 AS 3679 AS 1650

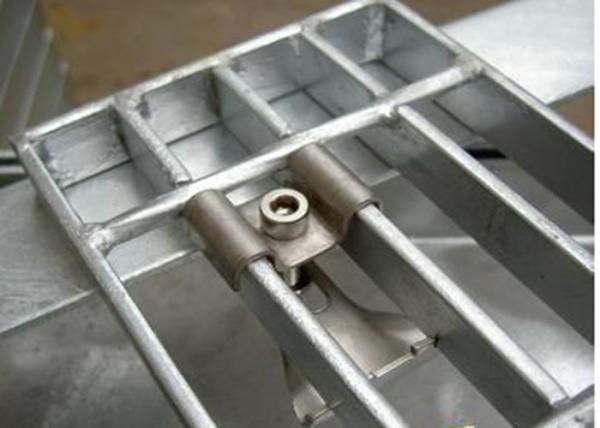

Hot dipped galvanized steel grating clips A type B type C type for install grating
Hot dipped galvanized steel grating clips A type B type C type for install grating
steel grating clamp specifications

  • Bearing Bar (Load Bar) Specifications (mm):

The specification of plain type and serrated type bearing bar is 20 x 3 to 100 x 10;

the specification of I-section type is 25 x 5 x 3, 32 x 5 x 3, 38 x 5 x 3, 40 x 5 x 3, 50 x 5 x 3, 50 x 7 x 4,

55 x 7 x 4, 60 x 7 x 4, 65 x 7 x 4, 70 x 7 x 4, 75 x 7 x 4, etc.

  • Bearing Bar Pitch (center to center):

America standard is available

1'' x 3/16'', 1 1/4'' x 3/16'', 1-1/2'' x 3/16'', 1'' x 1/4'', 1-1/4'' x 1/4'', 1 1/2'' x 1/4''(19-w-4),(19-w-2) and so on.

  • Cross Bar Pitch (center to center):

38, 50, 76, 100, 101.6mm etc.
50, 100mm are recommended

  • Surface Treatment:

Untreated, Painting or Hot dip Galvanizing


steel grating clamp

ries Series distance Traverse line distance Load flat specifications (wide×thick)
20×3 25×3 32×3 40×3 20×5 25×5
1 30 100 G203/30/100 G253/30/100 G323/30/100 G403/30/100 G205/30/100 G255/30/100
50 G203/30/50 G253/30/50 G323/30/50 G403/30/50 G205/30/50 G255/30/50
2 40 100 G203/40/100 G253/40/100 G323/40/100 G403/40/100 G205/40/100 G255/40/100
50 G203/40/50 G253/40/50 G323/40/50 G403/40/50 G205/40/50 G255/40/50
3 60 50 - G253/60/50 G253/60/50 G403/60/50 G205/60/50 G255/60/50

series Series distance Traverse line distance Load flatspecifications (wide×thick)
32×5 40×5 45×5 50×5 55×5 60×5
1 30 100 G325/30/100 G405/30/100 G455/30/100 G505/30/100 G555/30/100 G605/30/100
50 G325/30/50 G405/30/50 G455/30/50 G505/30/50 G555/30/50 G605/30/50
2 40 100 G325/40/100 G405/40/100 G455/40/100 G505/40/100 G555/40/100 G605/40/100
50 G325/40/50 G405/40/50 G455/40/50 G505/40/50 G555/40/50 G605/40/50
3 60 50 G325/60/50 G405/60/50 G455/60/50 G505/60/50 G555/60/50 G605/60/50


steel grating clamp application:
steel grating clamp are widely used by various plants such as

  • electric power
  • petroleum
  • chemical industry
  • metallurgy industry
  • machinery industry
  • shipbuilding
  • oceanographic engineering
  • building materials
  • paper mills
  • cement plant
  • medicine
  • spinning and weaving
  • foodstuff factory
  • transportation
  • municipal administration
Trade Terms
  • Trade terms: FOB, CFR, CIF, L/C
  • Payment term: 30% T/T in advance 70% against B/L copy
  • MOQ: 100pc
  • Port: Tianjin
  • Sample time: 5-7 days
  • Lead time: 10-30 days (Depend on quantity)
  • Shipment: By sea
