Anti Slip Mild steel Steel Bar Grating / Q235 A36 SS304 Stainless Steel Floor Grating
Anti Slip Mild steel Steel Bar Grating / Q235 A36 SS304 Stainless Steel Floor Grating
Anti Slip Mild steel Steel Bar Grating / Q235 A36 SS304 Stainless Steel Floor Grating
Anti Slip Mild steel Steel Bar Grating / Q235 A36 SS304 Stainless Steel Floor Grating
Specifications
Model Number :
CP06
Certification :
ISO9001
MOQ :
100 square meters
Supply Ability :
1000t per month
Delivery Time :
3 - 7work days
Packaging Details :
Ocean shipping in bulk-cargo ship or as customers' requirement
Product name :
Anti Slip Mild steel Serrated Steel Grating Hot Dipped Galvanized
Price term :
25x3,25x4,30x3,30x4,30x5,32x5,40x5,50x5,.....75x10mm
Shipment :
38,50,76,100,101.6mm
Port of loading :
Q235,A36,SS304
Surface :
galvanized,untreated,stainless steel,painted
Technique :
China: YB/T 4001.1-2007
Sample :
Free
Packing :
Customized
Description

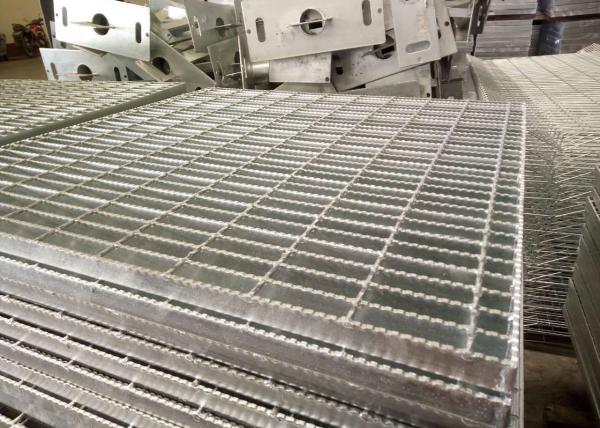

Anti Slip Mild steel Serrated Steel Grating Hot Dipped Galvanized

Anti slip grating is one type of steel bar grating,and can be produced in many designs. It is also know as Serrated steel grating.Due to the slip resistant and durable for all the walking surface in the industry ,which become the most important anti-slip grating in the industry.The slip resistant and durable give the anti slip grating a much higher performance in the walking application.

  • Materials: Mild steel,Stainless steel
  • Surface treatment: Galvanized,Original,Painting

Specification:

  • Cross bars : Dia. 5mm,6mm,8mm (Round bar)/5*5mm,6*6mm,8*8mm (Twist bar)
  • Cross bar spacing : 40,50,60,65,76,100,101.6,120,130mm, etc.
  • Bearing bars : 20*5,25*3,25*4,25*5,30*3,30*4,30*5,32*3,32*5,40*5,50*4… 75*8mm, etc.
  • Bearing bar spacing : 20,25,30,32.5,34.3,40,50,60,62,65mm

Anti slip grating is available in a variety of bearing bar spacing,thicknesses and depth according to the industry applications and walking requirements.

GENERAL FLAT BAR SPECIFICATION
W*T*L W*T*L W*T*L W*T*L
20x1.5x6000mm 30x7.25x6000mm 50x7.5x6000mm 80x7.5x6000mm
20x2.0x6000mm 30x7.5x6000mm 50x7.75x6000mm 80x7.75x6000mm
20x2.2x6000mm 30x7.75x6000mm 50x8.0x6000mm 80x8.0x6000mm
20x2.5x6000mm 30x9.25x6000mm 50x9.25x6000mm 80x9.25x6000mm
20x2.75x6000mm 30x9.5x6000mm 50x9.5x6000mm 80x9.5x6000mm
20x3.0x6000mm 30x9.75x6000mm 50x9.75x6000mm 80x9.75x6000mm
20x3.25x6000mm 40x2.0x6000mm 50x11.5x6000mm 80x11.5x6000mm
20x3.5x6000mm 40x2.2x6000mm 50x11.75x6000mm 80x11.75x6000mm
20x3.75x6000mm 40x2.5x6000mm 60x3.0x6000mm 80x13.5x6000mm
20x4.0x6000mm 40x2.75x6000mm 60x3.25x6000mm 100x2.5x6000mm
20x4.5x6000mm 40x3.0x6000mm 60x3.5x6000mm 100x2.75x6000mm
20x4.75x6000mm 40x3.25x6000mm 60x3.75x6000mm 100x3.0x6000mm
20x5.25x6000mm 40x3.5x6000mm 60x4.0x6000mm 100x3.25x6000mm
20x5.5x6000mm 40x3.75x6000mm 60x4.25x6000mm 100x3.5x6000mm
20x5.75x6000mm 40x4.0x6000mm 60x4.5x6000mm 100x3.75x6000mm
25x2.0x6000mm 40x4.25x6000mm 60x4.75x6000mm 100x4.0x6000mm
25x2.5x6000mm 40x4.5x6000mm 60x5.0x6000mm 100x4.5x6000mm
25x2.75x6000mm 40x4.75x6000mm 60x5.25x6000mm 100x4.75x6000mm
25x3.0x6000mm 40x5.0x6000mm 60x5.5x6000mm 100x5.25x6000mm
25x3.25x6000mm 40x5.25x6000mm 60x5.75x6000mm 100x5.5x6000mm
25x3.5x6000mm 40x5.5x6000mm 60x7.25x6000mm 100x5.75x6000mm
25x3.75x6000mm 40x5.75x6000mm 60x7.5x6000mm 100x7.25x6000mm
25x4.0x6000mm 40x7.25x6000mm 60x7.75x6000mm 100x7.5x6000mm
25x4.25x6000mm 40x7.5x6000mm 60x8.0x6000mm 100x7.75x6000mm
25x4.5x6000mm 40x7.75x6000mm 60x9.25x6000mm 100x8.0x6000mm
25x4.75x6000mm 40x9.25x6000mm 60x9.5x6000mm 100x9.25x6000mm
25x5.0x6000mm 40x9.5x6000mm 60x9.75x6000mm 100x9.5x6000mm
25x5.25x6000mm 40x9.75x6000mm 60x11.5x6000mm 100x9.75x6000mm
25x5.5x6000mm 40x11.5x6000mm 60x11.75x6000mm 100x11.5x6000mm
25x5.75x6000mm 40x11.75x6000mm 70x4.75x6000mm 100x11.75x6000mm
30x2.0x6000mm 50x2.5x6000mm 70x5.25x6000mm 100x13.5x6000mm
30x2.5x6000mm 50x2.75x6000mm 70x5.5x6000mm 120x7.5x6000mm
30x2.75x6000mm 50x3.0x6000mm 70x5.75x6000mm 120x7.75x6000mm
30x3.0x6000mm 50x3.25x6000mm 70x7.25x6000mm 120x9.25x6000mm
30x3.25x6000mm 50x3.5x6000mm 70x7.5x6000mm 120x9.5x6000mm
30x3.5x6000mm 50x3.75x6000mm 70x7.75x6000mm 120x9.75x6000mm
30x3.75x6000mm 50x4.0x6000mm 70x9.25x6000mm 120x11.25x6000mm
30x4.0x6000mm 50x4.25x6000mm 70x9.5x6000mm 120x11.75x6000mm
30x4.25x6000mm 50x4.5x6000mm 70x9.75x6000mm 120x13.5x6000mm
30x4.5x6000mm 50x4.75x6000mm 70x11.5x6000mm 150x9.5x6000mm
30x4.75x6000mm 50x5.0x6000mm 70x11.75x6000mm 150x9.75x6000mm
30x5.0x6000mm 50x5.25x6000mm 80x5.25x6000mm 150x11.5x6000mm
30x5.25x6000mm 50x5.5x6000mm 80x5.5x6000mm 150x11.75x6000mm
30x5.5x6000mm 50x5.75x6000mm 80x5.75x6000mm 150x13.5x6000mm
30x5.75x6000mm 50x7.25x6000mm 80x7.25x6000mm
REMARK: W (width) T (thickness) L (length) unit:mm
