1.2mm Hot Dipped / Electro Galvanized Iron Wire Low Carbon Material
1.2mm Hot Dipped / Electro Galvanized Iron Wire Low Carbon Material
1.2mm Hot Dipped / Electro Galvanized Iron Wire Low Carbon Material
1.2mm Hot Dipped / Electro Galvanized Iron Wire Low Carbon Material
Specifications
Model Number :
GI-7
Certification :
ISO9001,SGS
MOQ :
2 TONS
Price :
$470/ton
Supply Ability :
600ton/month
Delivery Time :
4-8 days
Packaging Details :
plastic inside woven bags outside or plastic inside hessian outside
Products name :
galvanized steel wire
Material :
steel
Coil weight :
5kg , 8kg/coil , 10kg , 25kg/coil , 50kg/coil , 100kg/coil or according to your required.
Tensile :
30-65kg/mm2
Packing :
plastic inside woven bags outside or plastic inside hessian bag outside
Colour :
silver
Loading port :
Tianjin
Shipping time :
within 6-13 days
MOQ :
2 TONS
Sample :
Free
Description

galvanized steel wire

Galvanized iron wire is made with mild steel , hard-drawn , then galvanized . It is rust-resistant , and very versatile in applications . Galvanized iron wire can be supplied in the form of coil wire , spool wire or further processed into straightened cut wire or U type wire .

Surface treatment:Electro galvanized or hot dipped galvanized,black.

Wire diameter : 0.7mm-4.0mm

Zinc coated : 10-15g/m2 ( electro galvanized wire )

30-60g/m2 ( hot dipped galvanized wire )

Coil weight : 1kg, 5kg, 8kg/coil , 10kg, 25kg/coil , 50kg/coil , 100kg/coil or according to your required.

Specification:

Gauge

SWG
(MM )		 BWG
(MM )		 Gauge SWG
(MM )		 BWG
(MM )
0 8.230 8.636 26 0.457 0.457
1 7.620 7.620 27 0.417 0.406
2 7.010 7.214 28 0.376 0.356
3 6.401 6.579 29 0.345 0.330
4 5.893 6.045 30 0.315 0.305
5 5.385 5.588 31 0.295 0.254
6 4.877 5.156 32 0.274 0.229
7 4.470 4.572 33 0.254 0.203
8 4.064 4.191 34 0.234 0.178
9 3.658 3.759 35 0.213 0.127
10 3.251 3.404 36 0.193 0.102
11 2.946 3.048 37 0.173 *
12 2.642 2.769 38 0.152 *
13 2.337 2.413 39 0.132 *
14 2.032 2.108 40 0.122 *
15 1.829 1.829 41 0.112 *
16 1.626 1.651 42 0.102 *
17 1.422 1.473 43 0.091 *
18 1.219 1.245 44 0.081 *
19 1.016 1.067 45 0.071 *
20 0.914 0.889 46 0.061 *
21 0.813 0.813 47 0.051 *
22 0.711 0.711 48 0.041 *
23 0.610 0.635 49 0.031 *
24 0.559 0.559 50 0.025 *
25 0.508 0.508

Galvanized iron wires are mainly used in making nails, communication equipment

and devices, construction, binding of flowers, wire mesh weaving, high pressure pipes,

arts and crafts etc. It also has industrial and agricultural use.

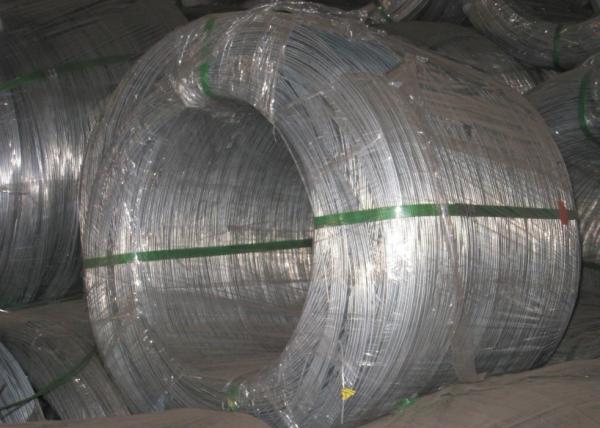

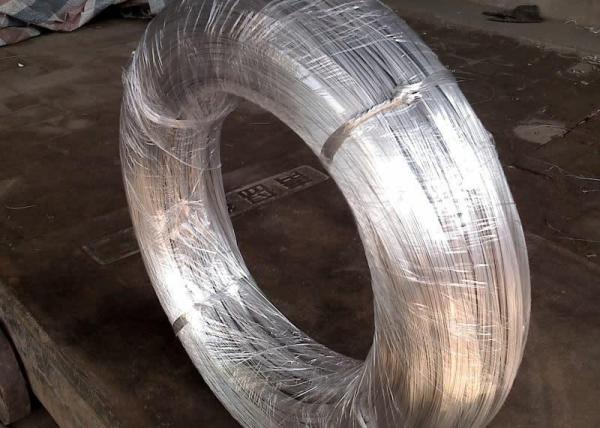

galvanized iron wire picture

1.2mm Hot Dipped / Electro Galvanized Iron Wire Low Carbon Material

Company Information
Anping Baosheng Steel Grating Co., Ltd is a professional manufacturer in the field of galvanized wire,steel grating,stair treads,trench cover,steel fence,etc.We have 3 running lines with yearly capacity of 15, 000tons.Our grating has exported to more than 30 countries,including AU,Europe,Southeast Asia,Africa,Middle East,etc.We always stick to manufacturing good quality products for our valuable customers worldwide.For sure,Anping Baosheng is your right partner for purchasing & developing quality goods in China.
