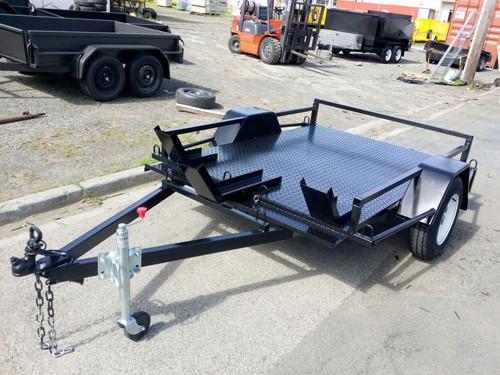

Flatbed 8x6 Motor Bike / Motorcycle Transport Trailer Single Axle 1400kg Load
Flatbed 8x6 Motor Bike / Motorcycle Transport Trailer Single Axle 1400kg Load
Specifications
Brand Name :
HONGLE
Model Number :
8x6
Certification :
ISO9001
Place of Origin :
Jiangsu China
MOQ :
1 container
Price :
Negotiable
Payment Terms :
FOB
Supply Ability :
Annual production capacity 5000 pcs
Delivery Time :
20 days
Use :
Motor BikeTrailer
DRAW BAR :
75x50x2.5mm RHS V-type, with spare wheel holder
Certificate :
ISO9001
Tie Downs :
All round the Trailer
TYRES :
NEW 185R14C Sunraysia Type
DEFLECTION RAILS :
50x50 Angle on each side
Description

Flatbed 8x6 Motor Bike / Motorcycle Transport Trailer Single Axle 1400kg Load

description:

As a Motorcycle Trailer manufacturer, we’re very proud of our unmatched high quality, durability and innovation. You don’t have to be a master mechanic to benefit from owning one of our’s motorcycle trailers. We offer a safe high capacity motorcycle trailers that easily stores in a garage while taking up minimum space. Our Motor Bike Trailers are set up to accommodate up to 3 regular dirt bikes, roadbikes or scooters.

SPECIFICATIONS

FLOOR/CHASSIS

2.1mm Rolled Checker Plate /40x40 RHS

Bike runners

Checker Plate, as per Photo

Tie Downs

All round the Trailer

DRAW BAR

75x50x2.5mm RHS V-type, with spare wheel holder

MUDGARD

2.1mm Checker Plate, 250mm Wide 4 Fold

DEFLECTION RAILS

50x50 Angle on each side

COUPLING

50mm Lockable Plunger

AXLE/SPRINGS

Solid Axle 39mm Round / Slipper SPRINGS

HUBS/FORD

LM A-type PCD 114.3, 5 x 1/2" Studs (Stud Centre 66.6mm)

BEARINGS

Bearing A-type Inner Large LM67048 Outer Small LM11949

RIMS

NEW Sunraysia Type 14x5.5" CB 84mm PCD 114.3 (FORD)

TYRES

NEW 185R14C Sunraysia Type

SAFETY CHAIN

2 off 8mm Rated chain 450mm Long

LIGHTS

LED Multi volt 12-24v, With Side Clearance Lights 7-Pin plug

Our Services


Customer also can purchase the parts from local if circumstance is urgently and We will cover the expenses.
We are willing to do ODM work for clients under current capacity and equipment.
We can put customer's cargo from other supplier into container if they wish.

Utility Trailers, Aluminum Trailers, Quad Trailers, Dirt Bike Trailer
78 inches wide between the fenders by 16ft long
Rubber torsion axles, electric brakes on both axles and breakaway kit
Six stake pockets three on each side
Aluminum rear stabilizer jacks
GVWR of 7,000 lbs with the payload capacity of 5,950 lbs
Aluminum 14 inch wheels
