4500 KG Loading 10x6 Tandem Box Trailer Heavy Duty With Brake
4500 KG Loading 10x6 Tandem Box Trailer Heavy Duty With Brake
4500 KG Loading 10x6 Tandem Box Trailer Heavy Duty With Brake
4500 KG Loading 10x6 Tandem Box Trailer Heavy Duty With Brake
4500 KG Loading 10x6 Tandem Box Trailer Heavy Duty With Brake
4500 KG Loading 10x6 Tandem Box Trailer Heavy Duty With Brake
Specifications
Brand Name :
HONGLE
Model Number :
10x6
Certification :
ISO9001
Place of Origin :
Jiangsu China
MOQ :
1 container
Price :
Negotiable
Payment Terms :
FOB
Supply Ability :
Annual production capacity 5000 pcs
Delivery Time :
20 days
CHASSIS :
ALL100x50 RHS
DRAW BAR :
70x50 RHS V-type
SAFETY CHAIN :
8mm Rated chain 450mm Long
SIDE TIE RAILS :
27x2mm Pipe Round Full Length
AXLES :
63mm Square 2.5 ton each
TYRES :
New LT235/85R16 1400kg
Description

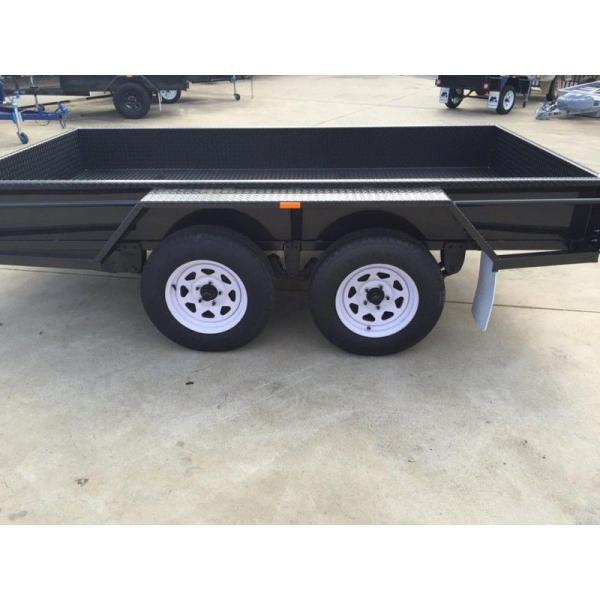

4500 KG 10x6 Tandem Trailer / Heavy Duty Box Trailer With Brake

Description:

EXTRA FEATURES INCLUDED

ROCKER ROLLER SPRINGS

SIDE TIE RAILS & DEFLECTION RAILS

PAINTED IN MODERN STANDARD COLOURS

ELECTRIC BRAKES BOTH AXLES WITH BRAKE AWAY UNIT

STANDARD FEATURES

STANDARD FEATURES

  • 3mm Rolled C/Plate floor with 350mm High Side
  • Front & rear opening tailgates tie rails
  • C/Plate Tailgates & Mudguards
  • Swing handles to secure the tailgates
  • V- type draw bar made from square RHS tube
  • Spare Wheel Holder on Draw Bar
  • Lockable plunger coupling
  • LED ADR approved lights and reflectors
  • Light protectors
  • Mud flaps to comply with Australian standards
  • New wheels (NOTE NOT SECOND HAND)
  • Plug holder fitted on draw bar
  • Brakes Both Axles with Brake Away Unit /Cable hand brake fitted

Specifications:

BODY/FLOOR 350MM Sides 2 piece 3mm Rolled Checker Plate Tub
TAILGATES 3mm Folded Checker Plate, with tie rails
MUDGARD 3mm Checker Plate, 310mm Wide 4 Fold
DEFLECTION RAILS 50x50 RHS on each side
SIDE TIE RAILS 27x2mm Pipe Round
COUPLING 75mm Ring Type - 5000kg with Hand Brake
SUSPENSION Spring Rocker Roller 7-leaf H/Duty Set 4500kg 16" wheels IES1003
AXLES/BRAKES 63mm Square 2.5 ton each
BRAKES/ELECTRIC Both Axles with Brake away Unit with True Cable Hand Brake
HUBS/LC 12”x2” Electric Drum L/C 6-Stud Hubs Electric 2.5 ton each axle
BEARINGS - H/DUTY HR 32011 & LM 29710/49
RIMS /16” NEW Sunraysia 16” L/C PCD 139.7, 6x1/2”Studs (also available in 5 Stud)
TYRES New LT235/85R16 1400kg
CHASSIS ALL100x50 RHS
DRAW BAR 125x75x5mm RHS V-type, with spare wheel holder
SAFETY CHAIN 2 off Safety Chain for 3500kg-4500kg Trailers Ratings 10mm T Grad
LIGHTS LED Multi volt 12-24v, With Side Clearance Lights 7-Pin plug

Advantage:

This is a well built Australian made trailer with fully rolled checker plate body with 350mm high sides, undercoated and top coated in many color's with fully seal mudguards and side rails.
