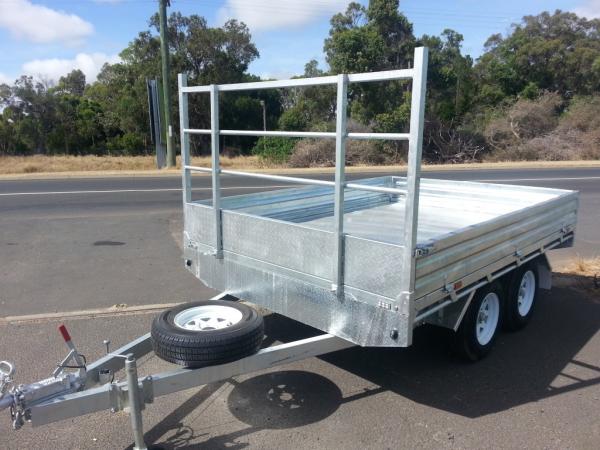

Rocker Roller Tray Top Trailer 10 X 6 Tandem Trailer With 4 Wheel Disc Brakes
Rocker Roller Tray Top Trailer 10 X 6 Tandem Trailer With 4 Wheel Disc Brakes
Specifications
Brand Name :
HongLe
Model Number :
10x6
Certification :
ISO9001
Place of Origin :
Jiangsu China
MOQ :
1 container
Price :
Negotiable
Payment Terms :
FOB
Supply Ability :
5000/year
Delivery Time :
20 days
FRONT HEAD BOARDFRONT HEAD BOARD :
900MM High with Tie Rail
SIDE TIE RAILS  :
Full Length Side Tie Rails 27x2mm Pipe Round
COUPLING  :
50mm Mechanical over Ride Plunger Type / Hand Brake
SUSPENSION  :
Rocker Roller Load Sharing Springs
AXLES  :
45mm Square Solid
HUBS/FORD  :
14” 5-Stud Hubs 10” Electric Drum
Description

Rocker Roller Tray Top Trailer 10 X 6 Tandem Trailer With 4 Wheel Disc Brakes

Description:

10 x 6ft Rocker Roller Trailer- 2,000kg Braked (4 wheel disc brakes)

This is the largest true 10 x 6 (internal) on the road being the braked version allowing 2000kgs Gross less weight of trailer 580kg = 1420kg payload. Built to last with deeper sides and stronger built suspension and frame.10 x 6ft Rocker Roller Trailer- 2,000kg Braked (4 wheel disc brakes)

This is the largest true 10 x 6 (internal) on the road being the braked version allowing 2000kgs Gross less weight of trailer 580kg = 1420kg payload. Built to last with deeper sides and stronger built suspension and frame.

Specifications:

FLOOR

300MM Sides 2.1mm Rolled Checker

SIDES DROP DOWN & BACK

1.6 Zinc Sides & Rear hinged Tailgate

CHASSIS

50X50X2.5MM & 100X50X3MM Main Runner

DRAW BAR

100x50x3mm RHS V-type, with spare wheel holder

FRONT HEAD BOARD

900MM High with Tie Rail

SIDE TIE RAILS

Full Length Side Tie Rails 27x2mm Pipe Round

COUPLING

50mm Mechanical over Ride Plunger Type / Hand Brake

SUSPENSION

Rocker Roller Load Sharing Springs

AXLES

45mm Square Solid

BRAKES

Mechanical Disc/Galvanised Calliper’s True Cable Hand Brake

HUBS/FORD

14” 5-Stud Hubs 10” Electric Drum

BEARINGS

68149/10 inner and 12749/10 outer

RIMS

NEW Sunraysia Type 14x5.5" CB 84mm PCD 114.3 (FORD)

TYRES

NEW 185R14C LIGHT TRUCK 850KG

SAFETY CHAIN

2x13mm Rated chain 450mm Long

STANDARD FEATURES:

  • Checker plate floor

  • 1.6mm Zinc Side & rear opening Drip Sides

  • Spring handles to secure the tailgates

  • Full length Side tie rails

  • Front Head Board 900mm High

  • V-type draw bar RHS square tube

  • Spare wheel holder across draw bar
