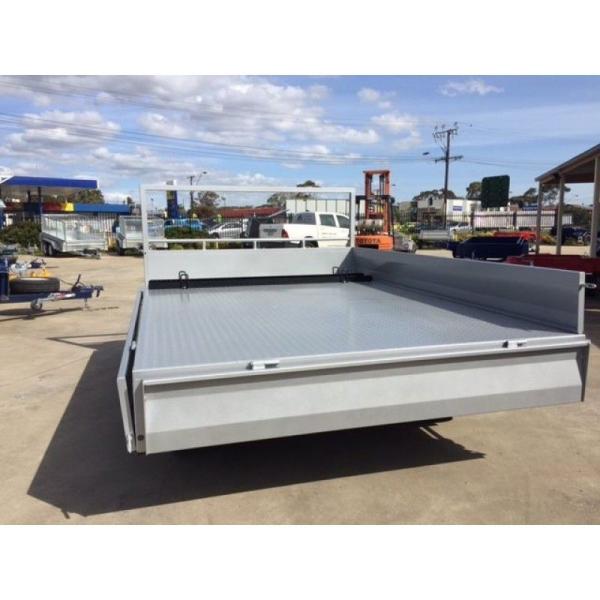

Hot Dipped Galvanized 10 x 5 Single Axle Flat Top Trailer , Tandem Axle Trailer
Hot Dipped Galvanized 10 x 5 Single Axle Flat Top Trailer , Tandem Axle Trailer
Hot Dipped Galvanized 10 x 5 Single Axle Flat Top Trailer , Tandem Axle Trailer
Hot Dipped Galvanized 10 x 5 Single Axle Flat Top Trailer , Tandem Axle Trailer
Specifications
Brand Name :
HongLe
Model Number :
10x5
Certification :
ISO9001
Place of Origin :
Jiangsu China
MOQ :
1 container
Price :
Negotiable
Payment Terms :
FOB
Supply Ability :
5000/year
Delivery Time :
20 days
BRAKES :
Mechanical Disc/Galvanised Calliper’s True Cable Hand Brake
AXLES :
45mm Square Solid
SUSPENSION :
Rocker Roller Load Sharing Springs
COUPLING   :
50mm Mechanical over Ride Plunger Type / Hand Brake
SIDE TIE RAILS  :
Full Length Side Tie Rails 27x2mm Pipe Round
FRONT HEAD BOARD :
900MM High with Tie Rail
Description

Hot Dipped Galvanized 10 x 5 Single Axle Flat Top Trailer , Tandem Axle Trailer

DETAILS:


Fully Hot Dipped In Galvanised!
2000kgs Gvm!
Strong 2.5mm Checker Plate Floor!
Strong Chassis 50mmx70mmx3mm
600mm Removable Hot Dipped Galvanised Mesh Cage!
Mechanical Disc Brakes On Front Axle!
4 Brand New Light Truck Tyres(Option: Spare Trye $130 Extra)
Strong Jockey Wheel!
12 Months Factory Warranty!
Compliance Plate (Vin Number)!
Inspection Certificates For Customers From Nsw, Act

SPECIFICATIONS:

Trailer size: 10 x 5 foot

Trailer outer size: 3000x1500x300mm; 9.84 x 4.92 x 0.98foot

Cage height: 600mm(option:900mm cage$100 extra)

Axles: 50mm x 50mm solid

Springs: 6 leafs rocker suspension, share loads.

Chassis: 50mmx70mmx3mm

Draw bar: 100mmx50mmx3mm

Tyres: 185 R14C light truck tyres

Description:

Tipper trailer will save you time and money with minimal operating effort. These trailers are suitable for the home handy man, tradesman or professional workingman easy loading and unloading. Tray top trailers are available in standard sizes with or without sides. Home with Galvanised steel or Painted Black Steel. You can request a size shape or colour suitable for your special requirements.

SPECIFICATIONS

FLOOR 300MM Sides 2.1mm Rolled Checker
SIDES DROP DOWN & BACK 1.6 Zinc Sides & Rear hinged Tailgate
CHASSIS 50X50X2.5MM & 100X50X3MM Main Runner
DRAW BAR 100x50x3mm RHS V-type, with spare wheel holder
FRONT HEAD BOARD 900MM High with Tie Rail
SIDE TIE RAILS Full Length Side Tie Rails 27x2mm Pipe Round
COUPLING 50mm Mechanical over Ride Plunger Type / Hand Brake
SUSPENSION Rocker Roller Load Sharing Springs
AXLES 45mm Square Solid
BRAKES Mechanical Disc/Galvanised Calliper’s True Cable Hand Brake
HUBS/FORD 14” 5-Stud Hubs 10” Electric Drum
BEARINGS 68149/10 inner and 12749/10 outer
RIMS NEW Sunraysia Type 14x5.5" CB 84mm PCD 114.3 (FORD)
TYRES NEW 185R14C LIGHT TRUCK 850KG
SAFETY CHAIN 2x13mm Rated chain 450mm Long

Hot Dipped Galvanized 10 x 5 Single Axle Flat Top Trailer , Tandem Axle Trailer
