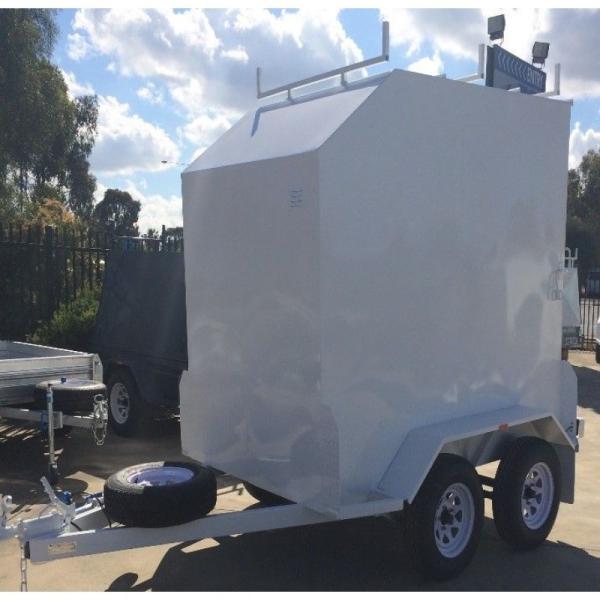

Fully Framed 8 x 5 Furniture Van Trailer , Single Axle Small Enclosed Utility Trailer
Fully Framed 8 x 5 Furniture Van Trailer , Single Axle Small Enclosed Utility Trailer
Fully Framed 8 x 5 Furniture Van Trailer , Single Axle Small Enclosed Utility Trailer
Fully Framed 8 x 5 Furniture Van Trailer , Single Axle Small Enclosed Utility Trailer
Specifications
Brand Name :
HongLe
Model Number :
8x5
Certification :
ISO9001
Place of Origin :
JIANGSU CHINA
MOQ :
1 container
Price :
Negotiable
Payment Terms :
FOB
Supply Ability :
5000 container/year
Delivery Time :
20 days
TYRES :
NEW 185R14C
TOP :
30x30 RHS frame work, with 1.6mm Zinc Sheets
INSIDE TIE RAILS :
14mm round solid, 2 off set at 500 & 1000mm high
MUDGARD :
2.1mm Checker Plate, 250mm Wide 4 Fold
DRAW BAR :
100x50x3mm RHS V-type, with spare wheel holder
COUPLING :
50mm Mechanical over Ride Plunger Type / Hand Brake
Description

8 x 5 Furniture Van Trailer , Single Axle Small Enclosed Utility Trailer

STANDARD FEATURES

  • Fully Framed top using 30x30 & 50x50 RHS 40x40
  • Square sided top built from the floor of trailer
  • Full Height Ramp lockable- gas struts for helping left ramp easier
  • Rolled C/Plate floor and body
  • Mudguards checker plate
  • 100x50 RHS Draw Bars for extra strength with Plug holder
  • LED ADR approved lights (Protected) front and side reflectors
  • Mudflaps to comply with Australian standards
  • NEW Sunraysia Type 14” wheels (NOTE: NOT SECOND HAND)

SPECIFICATIONS

FLOOR/CHASSIS 2.1mm Rolled Checker Plate /50X50 RHS
TOP 30x30 RHS frame work, with 1.6mm Zinc Sheets
RAMPS/OR DOORS Can be made with full checker plate rams or barns doors
INSIDE TIE RAILS 14mm round solid, 2 off set at 500 & 1000mm high
MUDGARD 2.1mm Checker Plate, 250mm Wide 4 Fold
DRAW BAR 100x50x3mm RHS V-type, with spare wheel holder
COUPLING 50mm Mechanical over Ride Plunger Type / Hand Brake
AXLE/SPRINGS 45mm Square H/D / ROCKER ROLLER SPRINGS
BRAKES Mechanical Disc/Galvanised Calliper’s True Cable Hand Brake
HUBS/FORD SL B-type PCD 114.3, 5 x 1/2" Studs (Stud Centre 66.6mm)
BEARINGS B-type Inner large L68149 / B-type outer small LM12749
RIMS NEW Sunraysia Type 14x5.5" CB 84mm PCD 114.3 (FORD)
TYRES NEW 185R14C
SAFETY CHAIN 2 off 10mm Rated chain 450mm Long
LIGHTS LED Multi volt 12-24v, With Side Clearance Lights 7-Pin plug

:

TRAILER DIMENSIONS TRAILER PRICES INCLUDE GST
8x5 10x5 10x6 TRAILER 8x5 10x5 10x6
INSIDE HEIGHT 2100 2100 2100
FLOOR HEIGHT 520 520 520 Spare
OVERALL HEIGHT 2620 2620 2620 J/wheel
INSIDE LENGTH 2400 3000 3000 Rego/12 month
INSIDE WIDTH 1520 1520 1820 Back Door
DRAWBAR LENGTH 1550 1550 1550 Flush Locks
OVERAL LENGTH 3950 4550 4550 Pinch Rubber
OVERAL WIDTH 2020 2020 2020 Shelves
LOAD RATING KG 2000 2000 2000 Roof Racks
ATM KG 1023 1275 1495 Nose Cone
PAYLOAD KG 977 725 505 Total

Fully Framed 8 x 5 Furniture Van Trailer , Single Axle Small Enclosed Utility Trailer
