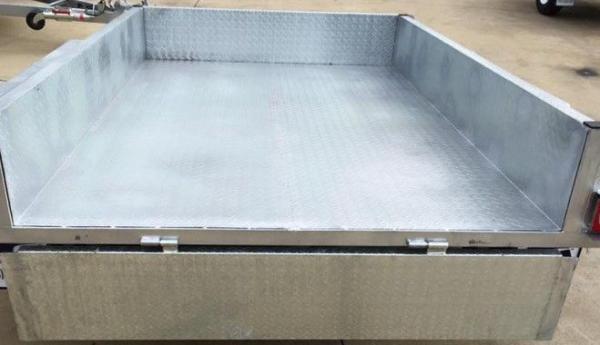

10x5 Hot Dipped Galvanized Tandem Trailer 3200KG With Mechanical Disk Brakes
10x5 Hot Dipped Galvanized Tandem Trailer 3200KG With Mechanical Disk Brakes
Specifications
Brand Name :
HONGLE
Model Number :
10x5
Certification :
ISO9001
Place of Origin :
Jiangsu, China
MOQ :
1 container
Price :
Negotiable
Payment Terms :
FOB
Supply Ability :
Annual production capacity 5000 pcs
Delivery Time :
20 days
GVW :
3200KG
Materia :
Steel
Type :
185R14C
Surface status :
Hot dipped galvanized
Description



STANDARD FEATURES
· Rolled C/Plate floor with 350mm High Side
· Front & rear opening tailgates with tie rails
· C/Plate Tailgates & Mudguards
· Full length side tie rails with Deflection Rails
· Swing handles to secure the tailgates
· V- type draw bar made from square RHS tube
· Spare Wheel Holder on Draw Bar
· Lockable plunger coupling
· LED ADR approved lights and reflectors/ Light protectors
· Mudflaps
· New wheels (NOTE NOT SECOND HAND)
· Plug holder fitted on draw bar
· Mechanical disk brakes /Cable hand brake fitted
· Tube holders in each corner for fitting cage or H/frame



Specifications:

BODY/FLOOR 350MM Sides 2 piece 2.4mm Rolled Checker Plate Tub
TAILGATES 2.4mm Folded Checker Plate, with tie rails
MUDGARD 2.4mm Checker Plate, 250mm Wide 4 Fold
DEFLECTION RAILS 50x50 Angle on each side
SIDE TIE RAILS 32x2mm Pipe Round Full Length (extra reinforced)
COUPLING 50mm Electric 3500kg / Hand Brake
SUSPENSION Rocker Roller Load Sharing Springs, 6 Leaf 60x6mm
AXLES 45mm Square Solid
BRAKES On Both Axles with Brake Away Unit True Cable Hand Brake
HUBS/FORD ELETRIC 14” 5-Stud 10” Electric Drum SL B-type PCD 114.3, 5 x 1/2" Studs
BEARINGS B-type Inner large L68149 / B-type outer small LM12749
RIMS NEW Sunraysia Type 14x5.5" CB 84mm PCD 114.3 (FORD)
TYRES/8 PLY 185R14C 8PLY Radial BRAND NEW WHEEL 850KG CAPACITY
CHASSIS ALL50x50 SHS
DRAW BAR 125x75x3mm RHS V-type, with spare wheel holder
SAFETY CHAIN 2x13mm Rated chain 450mm Long
LIGHTS LED Multi volt 12-24v, With Side Clearance Lights 7-Pin plug



After sales service:
1) We Will Offer Completely Assembly Drawing To Customer after We Finish Loading Container
2) We Will Offer Completely Components List To Customer, Easy For Checking Quantity For Trailer And Trailer Parts In The Container.
3) We Will Speed Post Small Parts To Customers If Any Parts Have Problems Under Our Warranty. We Will Take Whole Cost.
4) We Will Send Big Parts Into Next Container If Any Parts Have Problems Under Our Warranty.
Customer Also Can Buy The Parts From Local If It Is Urgently And Can Not Wait For Us Sending Parts To Them. We Will Take Whole Cost.
5) We Are Very Happy Make Some Other Products To Our Customers If They Need Them.
