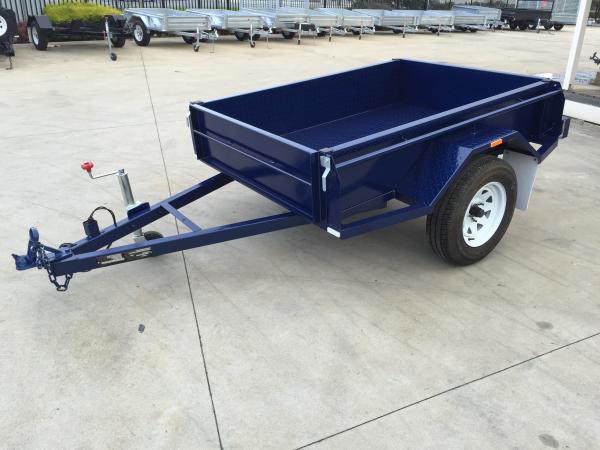

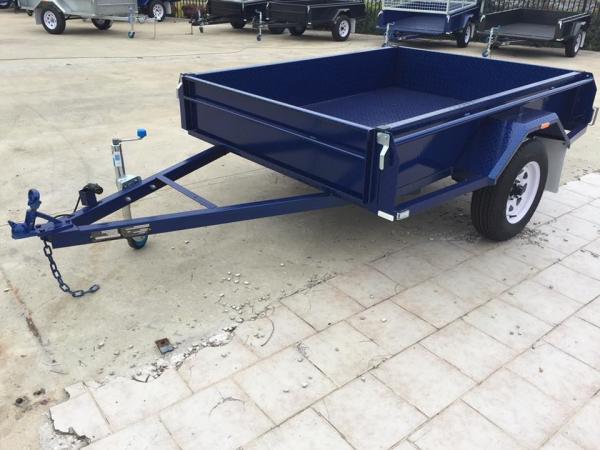

6x4 Heavy Duty Single Axle Painted Trailer 750KG
Standard features
SPECIFICATIONS
BODY/FLOOR | 350MM Sides 2 piece, 2.4mm Rolled Checker Plate Tub |
TAILGATES | 2.4mm Checker Plate, with tie rails |
MUDGARD | 2.4mm Checker Plate, 250mm Wide 4 Folds |
DEFLECTION RAILS | 50x50 Angle on each side |
SIDE TIE RAILS | 32x2mm Pipe Round Full Length (with extra reinforced) |
COUPLING | 50mm Lockable Plunger |
SUSPENSION | Floating Shackles Springs |
AXLES | Solid Axle 39mm Round |
HUBS/FORD | LM A-type PCD 114.3, 5 x 1/2" Studs (Stud Centre 66.6mm) |
BEARINGS | Bearing A-type Inner Large LM67048 Outer Small LM11949 |
RIMS | NEW Sunraysia Type 14x5.5" CB 84mm PCD 114.3 |
TYRES | NEW 185R14C |
CHASSIS | 50x50 SHS |
DRAW BAR | 70x50x50x2.5mm RHS V-type, with spare wheel holder |
SAFETY CHAIN | 8mm Rated chain 450mm Long |
LIGHTS | LED Multi volt 12-24v, Side Clearance Lights 5ft only 7-Pin plug |
TRAILER DIMENSIONS | ||||
6x4 | 7x4 | 7x5 | ||
SIDE HEIGHT | 350 | 350 | 350 | |
FLOOR HEIGHT | 530 | 530 | 530 | |
OVERAL HEIGHT | 880 | 880 | 880 | |
INSIDE LENGTH | 1820 | 2130 | 2130 | |
INSIDE WIDTH | 1220 | 1220 | 1520 | |
DRAWBAR LENGTH | 1250 | 1250 | 1320 | |
OVERAL LENGTH | 3120 | 3430 | 3500 | |
OVERAL WIDTH | 1730 | 1730 | 2030 | |
LOAD RATING KG | 750 | 750 | 750 | |
ATM KG | 250 | 267 | 293 | |
PAYLOAD KG | 500 | 483 | 457 |
Our factory and shipping terms
1) Advanced technology, strictly production craft, highly mechanized operation line to guide and assist you in making the right decision.
2) According to different trailers customers order and different countries to export, best packaging scheme and logistic plan will be designed for you.
Our Services
1) The quality warranty period of our products is within 12 months after delivery of products.
2) For normal damaged parts claims ,service team will reply the distributor within 3 working days.
3) For serious vehicle problems, it will take us 5 working days to reply the distributor, since our service team has to report it to our factory for final judge.
Payment And Delivery
1. Payment:30%TT in advance,70%TT before sending the goods.
2. Delivery:15-30days after payment.
3. Shipping:We accept FOB,CIF,CNF and others, we can also help you to arrange the shipping.
4. Color and size can customized.
Advantages
Our Advantages to be a Good Supplier and a Reliable Business Partner
1. We Have Our Own Factory.
2. Strict Quality Control System.
3. Advanced Production Equipment.
4. Strict and Complete and Standard Production Process to Guarantee the Quality.
