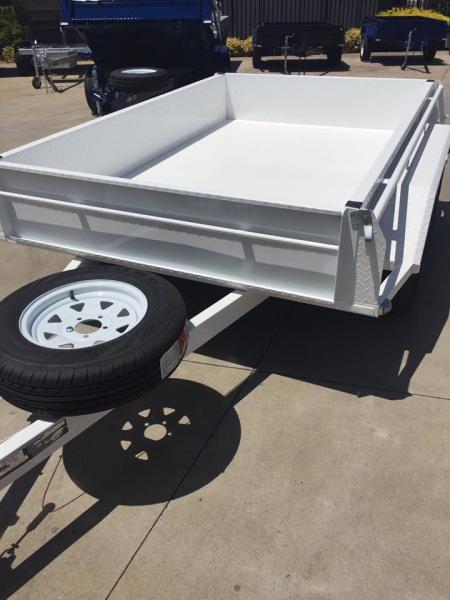

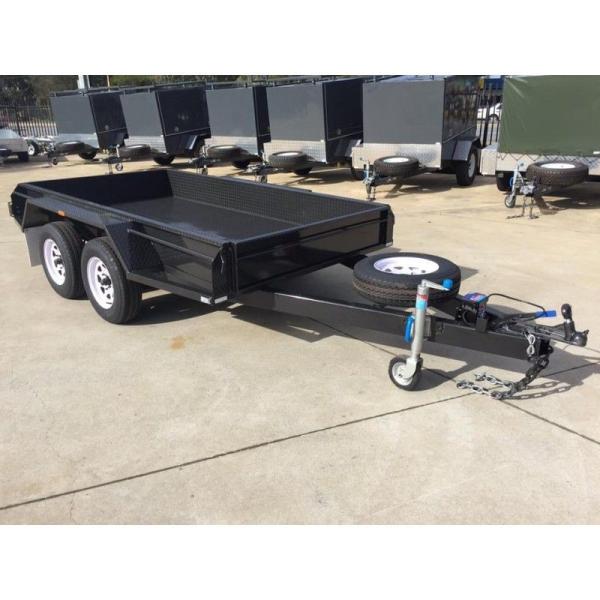

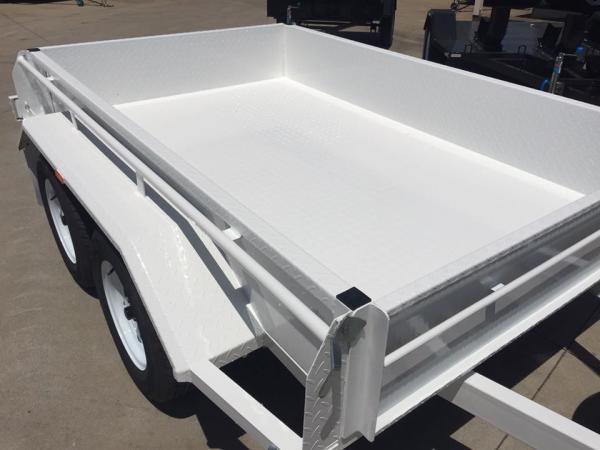

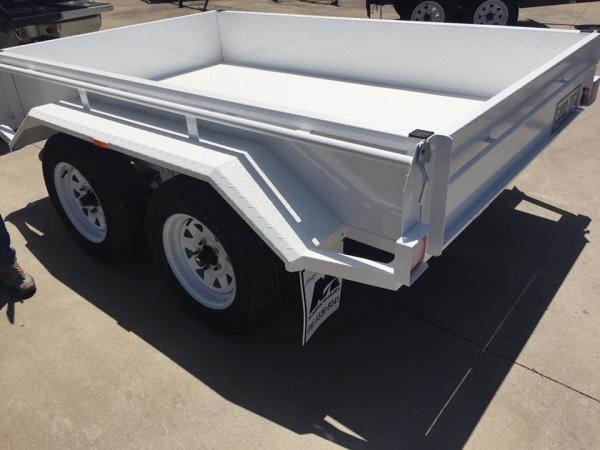

10x5 Tandem Box Trailer
Description:
We design and build an innovative range of commercial and industrial trailers to suit a wide variety of operational environments and functions.
We can manufacture industrial trailers to any specifications; whether you need a hydraulic trailer to help with the transportation of heavy goods or a specially designed factory trailer to navigate around complex industrial units, we at Alexander Trailers can provide the solution.
Our industrial trailers are designed with efficiency and safety in mind. A custom built industrial trailer will help ensure that processes and jobs are carried out with increased proficiency, facilitated by uncomplicated loading and unloading, maneuvering, elevation and custom features.
SUPREME TANDEM ROLLED BODIES MODELS
STANDARD FEATURES
SPECIFICATIONS
BODY/FLOOR | 350MM Sides 2 piece 2.4mm Rolled Checker Plate Tub |
TAILGATES | 2.4mm Folded Checker Plate, with tie rails |
MUDGARD | 2.4mm Checker Plate, 250mm Wide 4 Fold |
DEFLECTION RAILS | 50x50 Angle on each side |
SIDE TIE RAILS | 32x2mm Pipe Round Full Length (extra reinforced) |
COUPLING | 50mm Mechanical over Ride Plunger Type / Hand Brake |
SUSPENSION | 6-Leaf, 60x6mm, Rocker Roller Load Sharing Springs |
AXLES/BRAKES | 40mm Square Solid/ Mechanical Disc |
BRAKES | Mechanical Disc/Galvanised Calliper’s True Cable Hand Brake |
HUBS/FORD | LM A-type PCD 114.3, 5 x 1/2" Studs (Stud Centre 66.6mm) |
BEARINGS | Bearing A-type Inner Large LM67048 Outer Small LM11949 |
RIMS | NEW Sunraysia Type 14x5.5" CB 84mm PCD 114.3 |
TYRES | NEW 185R14C |
CHASSIS | 50x50 SHS |
DRAW BAR | 100x50x3mm RHS V-type, with spare wheel holder |
SAFETY CHAIN | 10mm Rated chain 450mm Long |
LIGHTS | LED Multi volt 12-24v, With Side Clearance Lights 7-Pin plug |
TRAILER DIMENSIONS | ||
8x5 | 10x5 | |
SIDE HEIGHT | 350 | 350 |
FLOOR HEIGHT | 530 | 530 |
OVERAL HEIGHT | 880 | 880 |
INSIDE LENGTH | 2440 | 3050 |
INSIDE WIDTH | 1525 | 1525 |
DRAWBAR LENGTH | 1500 | 1500 |
OVERAL LENGTH | 3990 | 4600 |
OVERAL WIDTH | 2030 | 2030 |
LOAD RATING KG | 2000 | 2000 |
ATM KG | 460 | 500 |
PAYLOAD KG | 1540 | 1500 |
