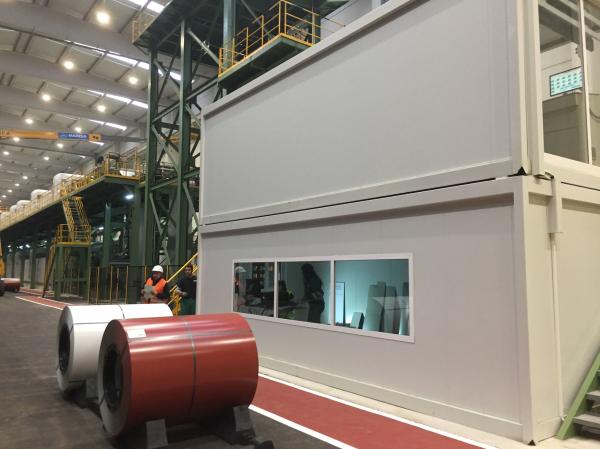

Steel /Aluminium Strip Color Coating Line(CCL)

Our company can provide various types of color coating line, including construction grade color coating line, home appliance grade color coating production line,color coating line with laminator, color coating line with printers and so on. Coating and Baking form can be one-coating-one-baking, two-coating- two-baking, three-coating-three-baking. All types of color coating line can be configured with surplus heat recycling and fast color changing.

Our company have very advanced technology in energy saving in color coating line, the main manifestation is: Regenerative thermal oxidizer (RTO), combined with surplus heat recycle system. By adopting such configuration, we can reduce the energy consumption to a ultra low level and bring great business value to the customer.

The color coating line can be equipped with 2 level computer management system, which can realize management for user, raw material and process, finished product , production report, energy consumption and communication.The production process can realize automatic process parameters collection and automatic recording, which is traceable and referable. The production line can be configured with strip surface quality detection, automatic detect and record the strip surface quality.

Technical Parameters

Material: GI, GL, AL, CRC

Line speed: whole line speed 40-200m/min

End product weight: 3,500-15,000kg/coil

Coil OD: φ900-2100mm

Coil ID: φ508/φ610mm

Strip Thickness: 0.18-1.6mm

Width of steel plate: 600-1,600mm

Energy: LPG/natural gas/blast furnace gas/producer gas, steam and electricity

DFT ( Dried film thickness) of the top coating can be adjusted between 10-20μm

DFT ( Dried film thickness) of the back coating can be adjusted between 5-10μm
