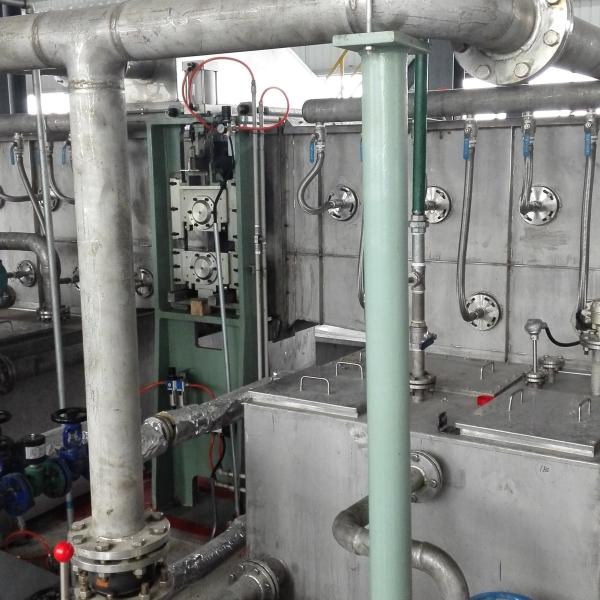

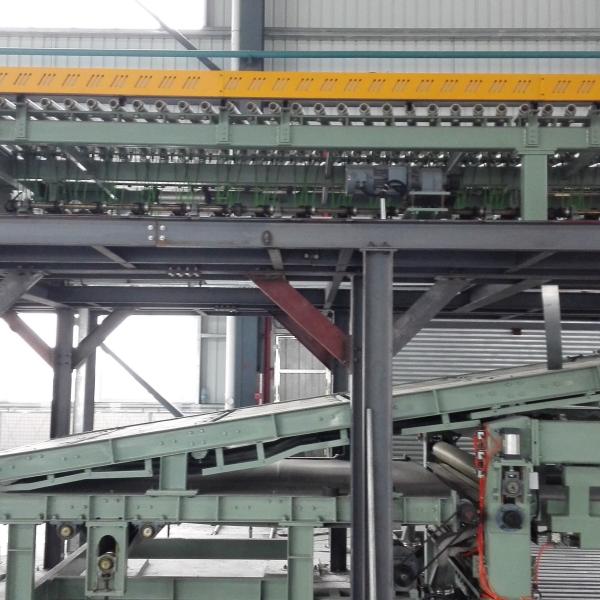

Printing Aluminium Coil Coating Line 1.8mm 2.5mm
Printing Aluminium Coil Coating Line 1.8mm 2.5mm
Printing Aluminium Coil Coating Line 1.8mm 2.5mm
Printing Aluminium Coil Coating Line 1.8mm 2.5mm
Specifications
Brand Name :
JJRS
MOQ :
1
Payment Terms :
L/C, T/T
Supply Ability :
10-12 set/year
Delivery Time :
7~10 months
Packaging Details :
wooden box; plastic package
Application :
building material, home appliances panel, automobile panel, can material, cover material
Material :
Steel metal
Width :
250mm~1250mm
Thickness :
1.8~2.5mm
Name :
steel strip color coating line
Keyword :
steel strip color coating
Type :
continuous
Process :
Hot dip
Capacity :
150,000ton/year
Price :
USD$1,000,000~USD10,000,000
Description

Aluminum Coil Color Coating Machine Production Line

with centering machine, roller leveler, etc

JJRS is professional on turn-key projects, from general planning, designing, to manufacturing, installing, commissioning and servicing. Besides, our business also covers single equipment’s designing, manufacturing and installing, as well as electric transmission, control system and spare parts. All basing on these supporting businesses, we mark out a developing strategy that taking metal strip intensive processing and color coating production lines as main, and the associated industry products as supplement.

JJRS assembles excellent technology research team, high qualified management personnel, perfect management system and powerful engineering design and complete project capability. As an integrated solution provider, we are willing to provide iron and steel enterprises of all over the world with highest quality products and services, from general engineering contracting, integrated production lines, to single equipment, even components and spare parts.

We offer the following services to our customers:
· Project feasibility
· Equipment design
· Installation and commissioning
· Technology transfer
· Training of operators and production personnel
· Product testing
· Downstream Equipment
· Ongoing technical support

Nominal Thickness Allowable Deviation of Thickness in Case of the Following Thicknesses
General Precision PT.A High Precision PT.B
≤1200 >1200-1500 ≤1200 >120-1500
0.20-0.40 ±0.05 ±0.06 ±0.03 ±0.04
>0.40-0.60 ±0.06 ±0.07 ±0.04 ±0.05
>0.60-1.0 ±0.07 ±0.08 ±0.05 ±0.06

Technical Parameter
Material galvanized steel strip or common steel steel strip
Line speed whole line speed 40-150m/min
End product weight 3,500-15,000kg/coil
Outer Dia. of coil φ900-1,800mm
Inner Dia. of coil φ508/φ610mm
Thickness of steel strip 0.2-1.2mm
Width of steel strip 600-1,250mm
Energy produce gas/natural gas/blast furnace gas,steam and electricity

Printing Aluminium Coil Coating Line 1.8mm 2.5mmPrinting Aluminium Coil Coating Line 1.8mm 2.5mm
