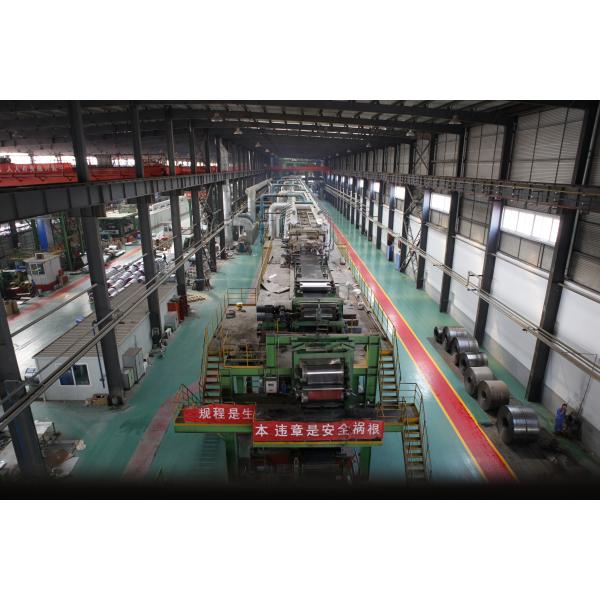

Continuous Hot Dip Galvanizing Line Machine Plant For Pipe
Continuous Hot Dip Galvanizing Line Machine Plant For Pipe
Continuous Hot Dip Galvanizing Line Machine Plant For Pipe
Continuous Hot Dip Galvanizing Line Machine Plant For Pipe
Specifications
Brand Name :
JJRS
Place of Origin :
China
MOQ :
1
Price :
USD$1,000,000~USD10,000,000
Payment Terms :
T/T, L/C
Supply Ability :
1-10set/year
Delivery Time :
7-10 months
Packaging Details :
Wooden box;
Application :
building material
Material :
Hot rolled coil, cold rolled coil
Width :
650mm-1300mm
Thickness :
0.3mm-2.5mm
Zinc coating :
30-300g/m2
name :
Steel strip hot dip galvanizing(galvalume) line
keyword :
Continuous Galvanizing Line Hot Dip
type :
continuous
process :
hot dip
material :
steel metal ss cs
componet :

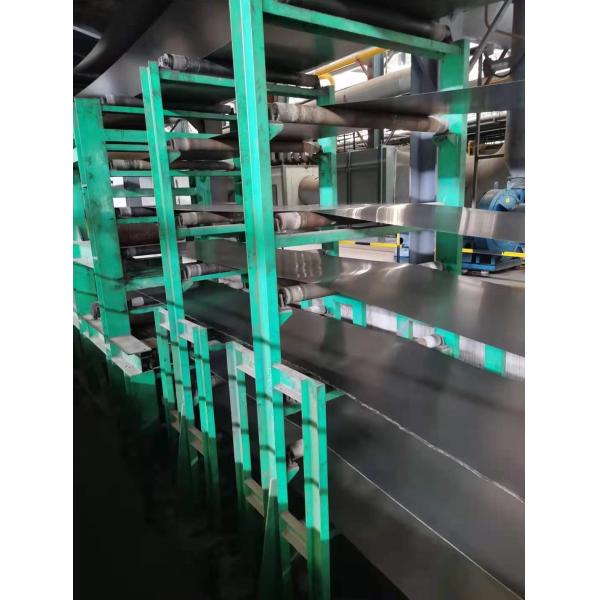

entry looper
capacity :
250,000t/year
Description

Continuous Galvanizing Line Hot Dip Galvanizing Machine Hot Dip Galvanizing Plant

Technical Process of Hot Dip Galvanizing Equipment :
Raw material (welded pipes) —— Derosination —— Acid treatment —— Water cleaning —— Applying impregnant —— Drying —— Zinc hot-dipping —— External blowing —— Internal blowing —— Air cooling ——Water cooling —— Passivation —— Drying —— Marking —— Inspection —— Packaging —— Finished products.

This system allow manual control interface in the pickling effect unqualified when artificial intervention, and real-time data recording, the formation of large data, the future through big data analysis, according to the acid concentration and temperature, the shape parameters, automatic formation of reasonable pickling process.

1. track is shared with an enclosed single beam, with a distance of about 32 meters.
2. configuration holder 2 sets, single set of hand load 10T, running speed of 10-20m/min;
3. supporting hand is equipped with vehicle control PLC, frequency converter, wireless communication module, code reader, track locator, RFID recognition system and so on to control the original device, and the protection level of electric control box is IP65.
4. system uses the sliding contact line, the collector supply of the car power supply; all units and the main control system adopts industrial control between wireless Ethernet, implementation of vehicle PLC and ground PLC master data exchange.

We provide two kinds of technologiesof hot dip galvanizing (galvalume) lines: "United States Steel Corp"and independently researched and developed “JJRS-Sendzimir” .

Type:
Coating Production Line
Condition:
New
Machine Type:
full automatic, hot dip plating
Video outgoing-inspection:
ProvidedMarketing Type:
Warranty of core components:
1 Year
Core Components:
PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump, PLC
Coating:
hot dip
Power:
Customized
Dimension(L*W*H):
Customized
Warranty:
1 Year
Key Selling Points:
Competitive Price
Applicable Industries:
Manufacturing Plant
Showroom Location:
None
Weight (KG):
10000
Production line type:
Full-Automatic
Product name:
Hot Dip Galvanizing Equipment Production Line
Pre-treatment type:
Chemical tanks or sand/shot blasting machine
Advantage:
Efficient
Control mode:
remote
Keywords:
Energy saving
Technology:
Galvanizing
service:
turnkey
