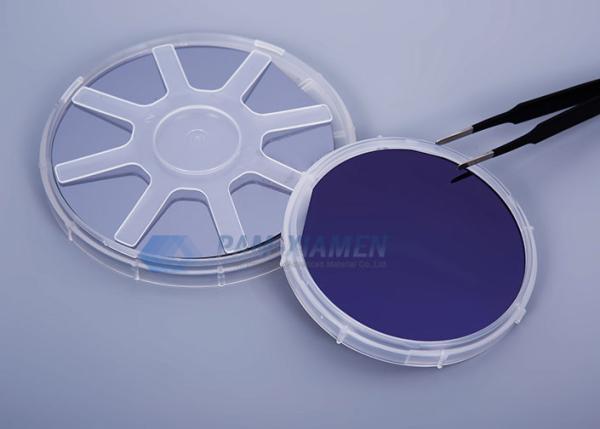

6 Inch Silicon Wafer FZ N Type Phosphorus Doped Orientation 111 Prime Grade 6"

Found in 1990,Xiamen Powerway Advanced Material Co., Ltd (PAM-XIAMEN) is a leading manufacturer of semicon doctor semiconductor material in China. PAM-XIAMEN develops advanced crystal growth and epitaxy technologies, manufacturing processes, engineered substrates and semiconductor devices. PAM-XIAMEN’s technologies enable higher performance and lower cost manufacturing of semiconductor wafer. For almost 30 years, PAM-XIAMEN aims to manufacture monocrystalline silicon wafer from the pulling process to get the ingot up to the final step which is the cleaning process, and vertically integrating to epi growth(silicon epi wafer) . This production and epi growth flow allows to maintain a reliable and qualitative consistency. Welcome you to enquire our engineer team, and we will give you full technology support.

6inch Silicon Wafer FZ N Type Phosphorus Doped Orientation 111 Prime Grade 6"

Type Conduction Type Orientation Diameter(mm) Resistivity(Ω•cm)
High resistance N&P <100>&<111> 50 - 300 >1000
NTD N <100>&<111> 50 - 300 30-800
CFZ N&P <100>&<111> 50 - 300 1-50
GD N&P <100>&<111> 50 - 300 0.001-300

Parameter Unit Value
Crystalline structure - Monocrystalline
Growth technique - FZ
Crystal Orientation - 111
Conductance type - N
Dopant - P/As/Sb
Diameter mm 150
Resistivity Ω/cm2 >1000, 30-800, 1-50, 0.001-300
Thickness um 625±15µm
1,000±25µm
875±25µm
TTV um ≤10 um
BOW um ≤40 um
Warp um ≤40 um
(G)STIR um Customer standard
Site Flatness-STIR um Customer standard
Edge Exclusion Zone mm SEMI STD or Customer Request
LPD's - ≥0.3μm, <30count or Customer Request
Oxygen Concentration ppma <1E16/cc
Carbon Concentration ppma <1E16/cc
RRG - ≤15%
Front Surface - Polished
Back Surface - Polished or Etched
Edge Surface Condition SEMI STD or Customer Request
Primary Flat Length mm SEMI STD
Primary Flat Orientation(100/111) & Angle(°) SEMI STD
Secondary Flat Length mm SEMI STD
Secondary Flat Orientation(100/111) & Angle(°) SEMI STD
Laser mark - SEMI STD or Customer Request
Packaging Packaged in a class 100 clean room environment,
Heat-sealed plastic inner/aluminium foil outer bags,
Vacuum Packing
If specific requirement by customer, will adjust accordingly

What is Silicon Wafer Used For?

Silicon wafer’s primary use is in integrated circuits. Integrated circuits power many of the devices that modern society uses every day. Computers and smartphones are just two of the devices that are dependent on this technology. Although other semiconductors have been tested overtime, silicon has proved to be stable option. Other uses include sensors, such as the tire pressure sensor system, and solar cells. Silicon wafers absorb the photons in sunlight and this in turn create electricity.

Are You Looking for an Silicon Wafer?

PAM-XIAMEN is your go-to place for semiconductor wafers, including Silicon wafers, as we have been doing it for almost 30 years! Send us enquiry to learn more about the wafers that we offer and how we can help you with your next project. Our group team can give you technology support. send us email at sales@powerwaywafer.com or powerwaymaterial@gmail.com
