4 Inch Silicon Wafer FZ N Type Phosphorus Doped Orientation 100 Prime Grade 4
4 Inch Silicon Wafer FZ N Type Phosphorus Doped Orientation 100 Prime Grade 4
Specifications
Brand Name :
PAM-XIAMEN
Place of Origin :
China
MOQ :
1-10,000pcs
Price :
By Case
Payment Terms :
T/T
Supply Ability :
10,000 wafers/month
Delivery Time :
5-50 working days
product name :
4 inch Silicon Wafer
feature :
Prime Grade
Dopant :
P/As/Sb
Wafer Thickness :
Power way
other name :
FZ N Type silicon Wafer
Wafer Diameter :
4 inch
Description

4 Inch Silicon Wafer FZ N Type Phosphorus Doped Orientation 100 Prime Grade 4"

PAM-XIAMEN is a manufacturer of CZ and FZ silicon wafer, we now become the worldwide source for high pure silicon wafers,thermal oxide silicon and epi wafers. Silicon wafer is used for integrated circuits , detector / sensor device , MEMS fabrication, opto-electronic components, and solar cells and finally apply to computer, mobile, sensor and other electronics. With rich experiences , PAM-XIAMEN understand your requirements and can provide exactly the silicon products you need with the suitable quality and lowest possible price . PAM-XIAMEN can provide both standard and customized silicon wafers to meet your demands.PAM-XIAMEN offer semiconductor silicon wafer with diameters from 1’’ (25.4 mm) to 12’’ (300 mm). We work either Cz (Czochralski) or FZ (Float Zone) silicon wafers. The polishing process is also made according to SEMI standard( the Semiconductor Equipment and Materials International standards). We also work ultra thin wafer, silicon oxide wafer SiO2 thin film, silicon nitride wafer Si3N4 thin film, thin film deposition and metallization on silicon wafers.

4inch Silicon Wafer FZ N Type Phosphorus Doped Orientation 100 Prime Grade 4"

Type Conduction Type Orientation Diameter(mm) Resistivity(Ω•cm)
High resistance N&P <100>&<111> 50 - 300 >1000
NTD N <100>&<111> 50 - 300 30-800
CFZ N&P <100>&<111> 50 - 300 1-50
GD N&P <100>&<111> 50 - 300 0.001-300

Parameter Unit Value
Crystalline structure - Monocrystalline
Growth technique - FZ
Crystal Orientation - 100
Conductance type - N
Dopant - P/As/Sb
Diameter mm 100
Resistivity Ω/cm2 >1000, 30-800, 1-50, 0.001-300
Thickness um 400±25µm
500±15µm
525±25μm
600± 25µm
TTV um ≤10 um
BOW um ≤40 um
Warp um ≤40 um
(G)STIR um Customer standard
Site Flatness-STIR um Customer standard
Edge Exclusion Zone mm SEMI STD or Customer Request
LPD's - ≥0.3μm, <30count or Customer Request
Oxygen Concentration ppma <1E16/cc
Carbon Concentration ppma <1E16/cc
RRG - ≤15%
Front Surface - Polished
Back Surface - Polished or Etched
Edge Surface Condition SEMI STD or Customer Request
Primary Flat Length mm SEMI STD
Primary Flat Orientation(100/111) & Angle(°) SEMI STD
Secondary Flat Length mm SEMI STD
Secondary Flat Orientation(100/111) & Angle(°) SEMI STD
Laser mark - SEMI STD or Customer Request

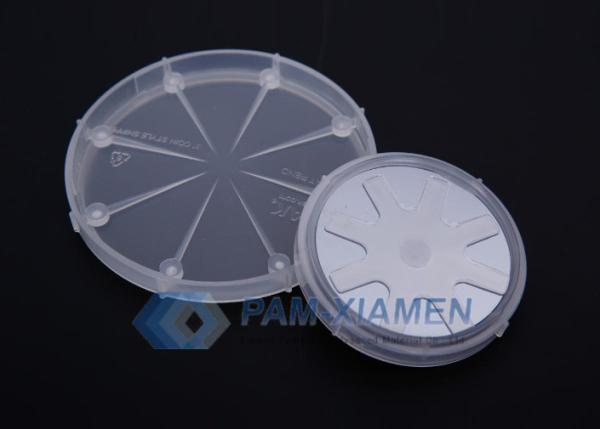

Packaging Packaged in a class 100 clean room environment,
Heat-sealed plastic inner/aluminium foil outer bags,
Vacuum Packing
If specific requirement by customer, will adjust accordingly

What is Silicon Wafer Used For?

Silicon wafer’s primary use is in integrated circuits. Integrated circuits power many of the devices that modern society uses every day. Computers and smartphones are just two of the devices that are dependent on this technology. Although other semiconductors have been tested overtime, silicon has proved to be stable option. Other uses include sensors, such as the tire pressure sensor system, and solar cells. Silicon wafers absorb the photons in sunlight and this in turn create electricity.

Are You Looking for an Silicon Wafer?

PAM-XIAMEN is your go-to place for semiconductor wafers, including Silicon wafers, as we have been doing it for almost 30 years! Send us enquiry to learn more about the wafers that we offer and how we can help you with your next project. Our group team can give you technology support. send us email at sales@powerwaywafer.com or powerwaymaterial@gmail.com
