Active Carbon Scattering Air Conditioner Filter Laminate Equipment for Optimal Results
Active Carbon Scattering Air Conditioner Filter Laminate Equipment for Optimal Results
Active Carbon Scattering Air Conditioner Filter Laminate Equipment for Optimal Results
Active Carbon Scattering Air Conditioner Filter Laminate Equipment for Optimal Results
Active Carbon Scattering Air Conditioner Filter Laminate Equipment for Optimal Results
Active Carbon Scattering Air Conditioner Filter Laminate Equipment for Optimal Results
Active Carbon Scattering Air Conditioner Filter Laminate Equipment for Optimal Results
Active Carbon Scattering Air Conditioner Filter Laminate Equipment for Optimal Results
Active Carbon Scattering Air Conditioner Filter Laminate Equipment for Optimal Results
Active Carbon Scattering Air Conditioner Filter Laminate Equipment for Optimal Results
Active Carbon Scattering Air Conditioner Filter Laminate Equipment for Optimal Results
Active Carbon Scattering Air Conditioner Filter Laminate Equipment for Optimal Results
Specifications
Applicable Industries :
Manufacturing Plant
Showroom Location :
None
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Marketing Type :
New Product 2022
Warranty of core components :
1 Year
Core Components :
PLC
Condition :
New
Application :
Apparel,Medical,automotive
Automatic Grade :
Automatic
Production Capacity :
5-45m/min
Place of Origin :
Jiangsu, China
Brand Name :
GAOQI
Voltage :
380V 50Hz 3Phase/Customized
Power :
120kw
Dimension(L*W*H) :
13500mm*3300mm*3200mm
Weight :
7500
Features :
multi glue and powder Scattering Coating
Warranty :
12 Months
After-sales Service Provided :
Engineers available to service machinery overseas
Color :
Customrized
Suitable laminating materials :
non woven fabrics,films,Meltblown
After Warranty Service :
Video technical support
Certification :
ISO9001
Function :
Automatic powder feeding
Price :
$145,000.00/sets >=1 sets
MOQ :
1 PC
Description
Active Carbon Scattering Air Conditioner Filter Laminate Equipment for Optimal Results
OUR FACTORY
Active Carbon Scattering Air Conditioner Filter Laminate Equipment for Optimal Results
PRODUCT PARAMENTERS
Product:

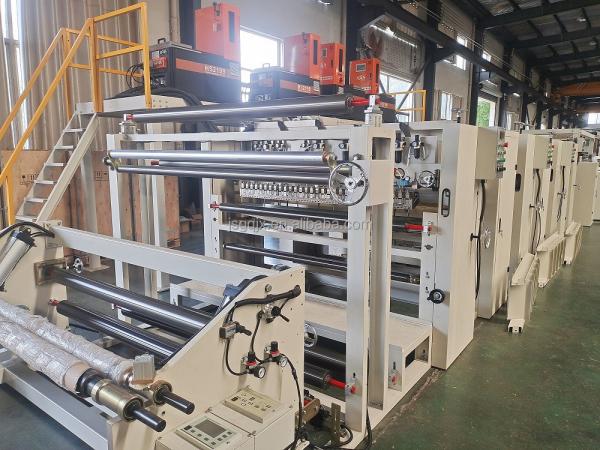

Hot Melt glue Spray and powder Scattering Coating Laminating machine
It is mainly used in the non-woven base material of air filtration equipment industry for glue spraying and active carbon powder composite process.
Using a new generation of technology,the hot-melt adhesive is sprayed on the whole surface of the substrate in a fibrous form,and the activated carbon is sprayed on the surface of the substrate sprayed with the adhesive through the powder spraying device and then it is compounded by spraying the adhesive again. The traditional processes of glue mixing,powder spreading and hot pressing after baking in a high-power oven are. The amount of glue and powder can be set according to the needs of users,and the functions of automatic feeding of activated carbon powder and automatic dust removal can be realized.
Laminate fabrics width
1600mm, customizable
Roller Width
1800mm,customizable
Production speed
0-45m/min
Voltage
380v, customizable
power
about 100kw
Active Carbon Scattering Air Conditioner Filter Laminate Equipment for Optimal Results
PUR Hot Melt Adhesive Advantages:
1. Solvent free, no volatile organic compounds (VOC) during use, no harm to the environment and workers.
2. Reacting with moisture makes PUR glue bond firmly and high-temperature resist.
3. Washable in hot water in both commercial or home laundry.
4. Stretchy, allow a flexible fit.
5. Resist abrasion, fire retardant, anti-microbial.
6. Long service life.
Features:
1. Full environmental-friendly hot melt adhesive giving the laminated products a huge range of high-demanding application.
2. The hot melt adhesive also provides advantages of high flexibility, thermal stability, anti-cracking and long using life.
3. Intricate programmed PLC controlling and operation system makes the machine running automatically and user friendly.
4. Famous brand precise motors and inverters installed for stable mechanical performance.
6. Non-tension unwinding unit makes laminated materials smooth and flat, guaranteeing good bonding effect.
7. Fabric and film stenters are equipped to ensure materials feed smoothly and flatly.
8. For 4-way stretch fabrics, special fabric transmission belt installed on the laminating machine.
9. 55-gallon automatic platen melting and feeding tank and conduction oil circular heater are equipped.
10. Low maintenance cost and less running noise.
