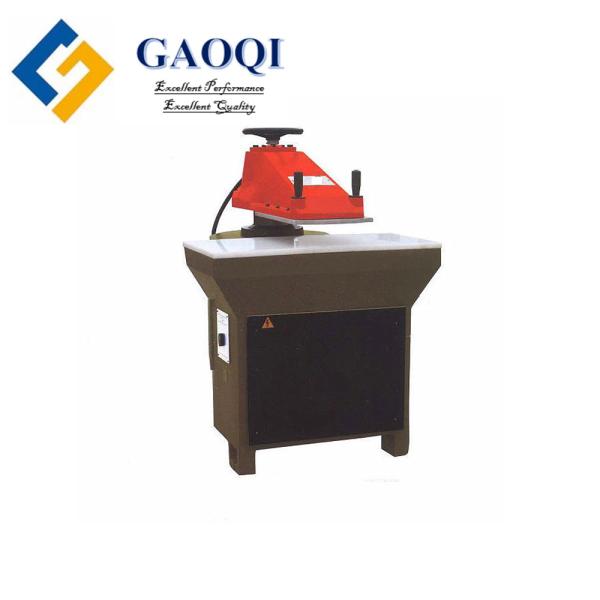

220/380V 3Phase Cutting Machine Excellent Performance Swing Beam Clicker Die Cutting Press
220/380V 3Phase Cutting Machine Excellent Performance Swing Beam Clicker Die Cutting Press
220/380V 3Phase Cutting Machine Excellent Performance Swing Beam Clicker Die Cutting Press
220/380V 3Phase Cutting Machine Excellent Performance Swing Beam Clicker Die Cutting Press
220/380V 3Phase Cutting Machine Excellent Performance Swing Beam Clicker Die Cutting Press
220/380V 3Phase Cutting Machine Excellent Performance Swing Beam Clicker Die Cutting Press
220/380V 3Phase Cutting Machine Excellent Performance Swing Beam Clicker Die Cutting Press
220/380V 3Phase Cutting Machine Excellent Performance Swing Beam Clicker Die Cutting Press
220/380V 3Phase Cutting Machine Excellent Performance Swing Beam Clicker Die Cutting Press
220/380V 3Phase Cutting Machine Excellent Performance Swing Beam Clicker Die Cutting Press
220/380V 3Phase Cutting Machine Excellent Performance Swing Beam Clicker Die Cutting Press
220/380V 3Phase Cutting Machine Excellent Performance Swing Beam Clicker Die Cutting Press
Specifications
Applicable Industries :
Manufacturing Plant
Showroom Location :
None
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Marketing Type :
New Product 2020
Warranty of core components :
1 Year
Core Components :
PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump
Condition :
New
Automatic Grade :
Manual
Place of Origin :
Jiangsu, China (Mainland)
Brand Name :
GAOQI
Type :
Cutting Machine
Voltage :
220/380V 3Phase 50/60HZ
Power :
0.75KW
Dimension(L*W*H) :
1050*1000*1500mm
Weight :
750 KG
Warranty :
12 Months
Application :
Non-metal material
After-sales Service Provided :
Video technical support
Certification :
CE
Packaging Details :
LCL,Wooden cases,packing size 1050*1000*1500mm
FCL,Wooden pallet,packing size 1050*1000*1500mm
Generally send to Shanghai port
Port :
Shanghai Port
Supply Ability :
60 Set/Sets per Month excellent preformance swing beam clicker die cutting press
Price :
$1,800.00/sets >=1 sets
MOQ :
1 PC
Description

Product Description

excellent preformance swing beam clicker die cutting press

With user-friendly design, this machine is safe and simple to operate, users only need to place the material on the bed of the press, position the cutting die on the material and press the twin operating buttons. The beam descends under hydraulic power to cut the required shape from single or multiple layers of material.This die cutting machine has a huge range of applications in manufacturing industry. Also known as clicking presses or clicker presses.

Application:

It can be used for cutting gasket, shoes, gloves, balls, bags, sand paper, carpet, toys industries etc.

Features:

1. Suitable for the cutting for all non-metallic material materials in single layer or multiple layers.

2. Fast, quiet, easy to operate.

3. Swing beam allows full access and visibility.

4. Use all standard cutting die types – strip steel, wooded forme, forged steel.

5. Low friction swing beam varying tool heights can be used without adjustment.

6. Double acting hydraulic cylinder.

7. Simple daylight adjustment.

8. Quiet, vibration free operation.

9. Safe, twin button operation.

10. Complete with high grade polypropylene cutting board, hydraulic oil and operating manual.

Main technical parameters:

Model

GSB-2C/12

GSB-2C/20

GSB-2C/25

Max. cutting force

120KN

200KN

250KN

Width of swing arm

300*450mm

350*550mm

450*550mm

Stroke adjustment range

5-55mm

5-75mm

5-75mm

Cutting speed

0.10m/s

0.10m/s

0.10m/s

Distance between upper and lower plate

60-140mm

60-150mm

60-150mm

Working table size

900*400mm

1000*500mm

1000*500mm

Motor Power

1.1KW

1.5KW

1.5KW

220/380V 3Phase Cutting Machine Excellent Performance Swing Beam Clicker Die Cutting Press220/380V 3Phase Cutting Machine Excellent Performance Swing Beam Clicker Die Cutting Press220/380V 3Phase Cutting Machine Excellent Performance Swing Beam Clicker Die Cutting Press220/380V 3Phase Cutting Machine Excellent Performance Swing Beam Clicker Die Cutting Press220/380V 3Phase Cutting Machine Excellent Performance Swing Beam Clicker Die Cutting Press220/380V 3Phase Cutting Machine Excellent Performance Swing Beam Clicker Die Cutting Press220/380V 3Phase Cutting Machine Excellent Performance Swing Beam Clicker Die Cutting Press220/380V 3Phase Cutting Machine Excellent Performance Swing Beam Clicker Die Cutting Press220/380V 3Phase Cutting Machine Excellent Performance Swing Beam Clicker Die Cutting Press
