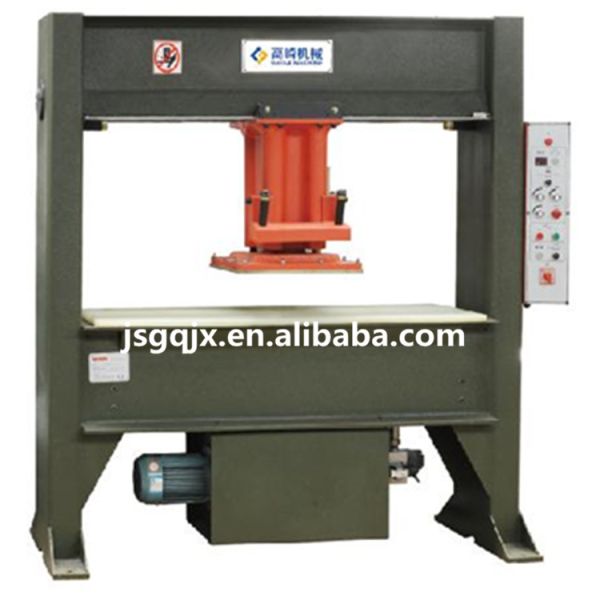

Hydraulic Leather Die Cutting Machine For Shoe Leather Cutting
Hydraulic Leather Die Cutting Machine For Shoe Leather Cutting
Specifications
Place of Origin :
Jiangsu, China
Brand Name :
GAOQI
Packaging Details :
shoe making equipment clicking press die cutting machine
Inner Package:Film;
External Package:Wood Case
Supply Ability :
30 Set/Sets per Month cutting press
Price :
$4,500.00 - $17,880.00/sets
Condition :
New
Applicable Industries :
leather cutting
Showroom Location :
None
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Marketing Type :
New Product 2020
Warranty of core components :
1 Year
Core Components :
Gear
Warranty :
1 Year
After-sales Service Provided :
Engineers available to service machinery overseas, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support
Product name :
hydraulic cutting machine
Color :
Customized
Usage :
blanking and cutting operations
After Warranty Service :
Online support, Spare parts
Local Service Location :
None
Port :
Shanghai
MOQ :
1 PC
Description

shoe making equipment clicking press die cutting machine

USE AND CHARACTER

1.Suitable for molding cutter die blanking, cutting operations on a variety of non metallic materials.

2.By steel production of Longmen frame structure, high strength, no deformation.

3.The punch can automatically traverse, best operation line of sight, safe and reliable.

4.Special design of hydraulic system, low noise, less oil.

5.The plate up position can be set arbitrarily, reduce air travel, improve work efficiency.

6.Punch walking automatic transmission control, realize flexible walking, fast speed, no impact, accurate positioning.

7.The use of differential circuit, the blanking fast, portable.

8.Special specifications can be customized (such as:cutting force, punch size, worktable size, automatic feeding device , etc.)

Main Technical Specifications:

Model XCLL3-250 XCLL3-250A XCLL3-250B XCLL3-500 XCLL3-500A XCLL3-500B
Max. Cutting Force 25T 25T 25T 50T 50T 50T
Worktable Size 1600*500mm 1800*500mm 2000*500mm 1600*500mm 1800*500mm 2000*500mm
Punch Size 500*500mm 500*500mm 500*500mm 550*550mm 550*550mm 550*550mm
Stroke Range 5-150mm 5-150mm 5-150mm 5-150mm 5-150mm 5-150mm
Main Motor Power 2.2KW 2.2KW 2.2KW 4KW 4KW 4KW
Voltage 3*440/415/400/380/220/200 V , 50/60 HZ

Overall Dimension

(L*W*H) mm

 2200*720*2000 2400*720*2000 2600*720*2000 2200*720*2000 2400*720*2000 2600*720*2000
Weight 1600kg 2100kg 3000kg 3000kg 3800kg 5000kg

Hydraulic Leather Die Cutting Machine For Shoe Leather CuttingHydraulic Leather Die Cutting Machine For Shoe Leather Cutting

Hydraulic Leather Die Cutting Machine For Shoe Leather Cutting

Click on this text, we will bring you more surprises!

Hydraulic Leather Die Cutting Machine For Shoe Leather CuttingHydraulic Leather Die Cutting Machine For Shoe Leather CuttingHydraulic Leather Die Cutting Machine For Shoe Leather CuttingHydraulic Leather Die Cutting Machine For Shoe Leather CuttingHydraulic Leather Die Cutting Machine For Shoe Leather Cutting
