Specifications
Brand Name :
Kunming passenger car
Model Number :
Classic
Place of Origin :
China
Product Name :
Low Speed EV Pickup Trucks Electric Car Mini Pickup Trucks Adult EV Pure Battery Range Truck
Model ID :
YNKY1131D4 YNKY1131D5
Length × Width × Height (mm) :
3475×1375×1550
Container internal dimensions :
1620X1245X300
Wheelbase (mm) :
2315
Front track (mm) :
1195
Rear track (mm) :
1185
Front Seat :
Primary/Secondary Independent Seats
Window :
Manual
Seats :
2
Gross weight (kg) :
1340
Curb weight (kg) :
710
Max speed (km/h) :
40
MOQ :
10
Price :
Negotiable
Description

Low Speed EV Pickup Trucks Electric Car Mini Pickup Trucks Adult EV Pure Battery Range Truck​

Specifications:

No. Model name Classic Classic
1 Model ID YNKY1131D4 YNKY1131D5
2 Vehicle status 72V 4KW 72V 5KW
3 Right hand drive
4 Length × Width × Height (mm) 3475×1375×1550 3475×1375×1550
5 Container internal dimensions 1620X1245X300 1620X1245X300
6 Wheelbase (mm) 2315 2315
7 Front track (mm) 1195 1195
8 Rear track (mm) 1185 1185
9 Front suspension (mm) 455 455
10 Rear suspention (mm) 705 705
11 Curb weight (kg) 710 710
12 Load quality (kg) 500 500
13 Seats No. 2 2
14 Gross weight (kg) 1340 1340
15 Performance parameters
16 Max speed (km/h) 40 40
17 Acceleration time s (0-40km) 15 15
18 Max grade 0.25 0.25
19 Min turning diameter (m) ≤9 ≤9
20 Maximum angle 36.3(outer wheel)/42(inner wheel) 36.3(outer wheel)/42(inner wheel)
21 Approach angle (°) ≥55 ≥55
22 Departure angle (°) ≥35 ≥35
23 Bauchfreiheit (mm, no load) ≥150 ≥150
24 Body structure
25 Cab Integral sheet metal Integral sheet metal
26 Tube doors - -
27 Cargo box (bed) Triple folding gate Triple folding gate
28 Battery/motor parameters
29 Battery type Maintenance-free
lead-acid batteries
Maintenance-free
lead-acid batteries
. Battery specification(V/Ah) 72V ,100Ah 72V ,100Ah
31 Battery optional ○ 105Ah LFP
○ 240Ah LFP
○ 105Ah LFP
○ 240Ah LFP
32 Lithium electric heating plate
33 Driving mileage (no load) (km) ≥120 ≥120
34 220V charging plug
35 110~220V charging plug (wide voltage)
36 Charging time (20%-100%) (h) 8~10 8~10
37 Motor type AC asynchronous motor AC asynchronous motor
38 Rated power (kW) 4KW 5KW
39 Chassis/Wheel Braking
40 Drive form RWD RWD
"-" indicates that this configuration is not available. "○" represents optional items, which need to be selected and explained; ● Indicates the standard configuration item.

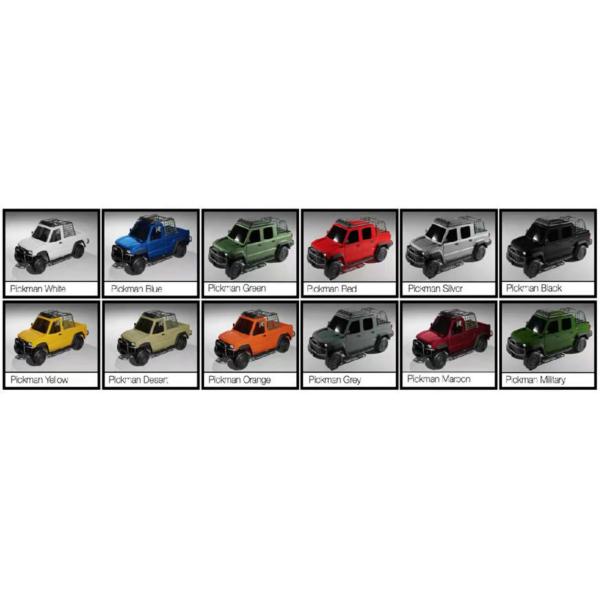

Colors:

Low Speed EV Pickup Trucks Electric Car Mini Pickup Trucks Adult EV Pure Battery Range Truck

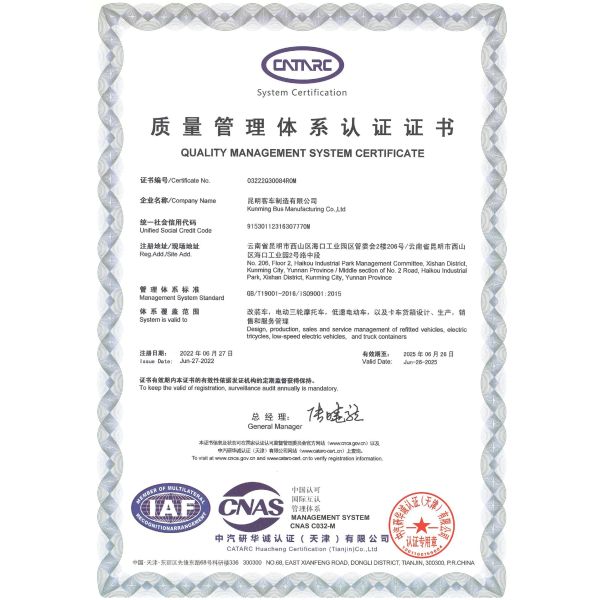

1.Certificate: IATF16949 certificate,Quality management system certificate,Certificate of the WMI,Certificate of the Automobile Manufacturer etc.

Low Speed EV Pickup Trucks Electric Car Mini Pickup Trucks Adult EV Pure Battery Range Truck

and

Low Speed EV Pickup Trucks Electric Car Mini Pickup Trucks Adult EV Pure Battery Range Truck

and

Low Speed EV Pickup Trucks Electric Car Mini Pickup Trucks Adult EV Pure Battery Range Truck

2. Equipment: A series of advanced production equipment, including stamping equipment, welding equipment, spraying equipment, assembly equipment, etc.

Low Speed EV Pickup Trucks Electric Car Mini Pickup Trucks Adult EV Pure Battery Range Truck
 Passed the authoritative crash-test, safer driving for you.
Low Speed EV Pickup Trucks Electric Car Mini Pickup Trucks Adult EV Pure Battery Range Truck

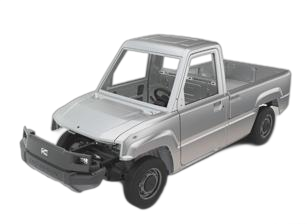

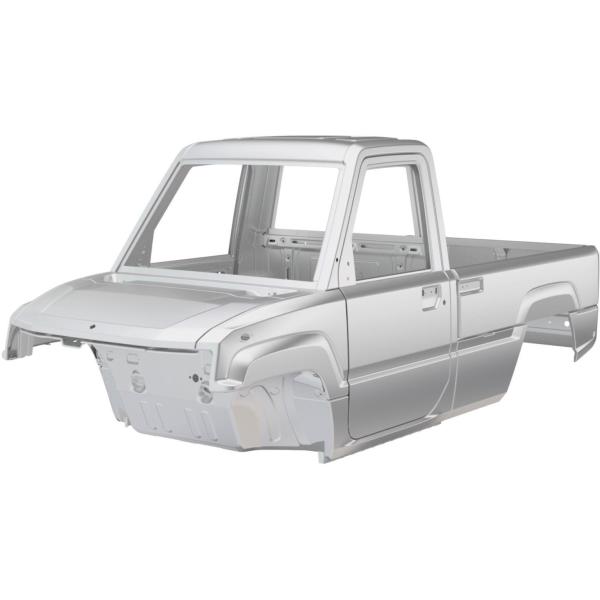

Punching all-metal body of car, sturdy and durable, good impact resistance, to ensure driving safe.

Low Speed EV Pickup Trucks Electric Car Mini Pickup Trucks Adult EV Pure Battery Range Truck
