120km Range Off Road Electric Truck Pickup 2 Seater High Performance
120km Range Off Road Electric Truck Pickup 2 Seater High Performance
120km Range Off Road Electric Truck Pickup 2 Seater High Performance
120km Range Off Road Electric Truck Pickup 2 Seater High Performance
120km Range Off Road Electric Truck Pickup 2 Seater High Performance
120km Range Off Road Electric Truck Pickup 2 Seater High Performance
120km Range Off Road Electric Truck Pickup 2 Seater High Performance
120km Range Off Road Electric Truck Pickup 2 Seater High Performance
120km Range Off Road Electric Truck Pickup 2 Seater High Performance
120km Range Off Road Electric Truck Pickup 2 Seater High Performance
120km Range Off Road Electric Truck Pickup 2 Seater High Performance
120km Range Off Road Electric Truck Pickup 2 Seater High Performance
Specifications
Brand Name :
KUNKE
Model Number :
XR
Place of Origin :
EEC
MOQ :
10
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
200 units per month
Delivery Time :
8 work days
Packaging Details :
3650×1510×1820mm
Product name :
2-seater EV Pickup Truck from China 120km Range High Performance Off-road Outdoors Truck
Model ID :
KK1121D10
Length × Width × Height (mm) :
3650×1510×1820
Container internal dimensions :
1620X1245X300
Vehicle status :
73.6V 10.5KW
Front track (mm) :
1315
Rear track (mm) :
1315
Front suspension (mm) :
455
Rear suspention (mm) :
705
Curb weight (kg) :
850
Seats No. :
2
Gross weight (kg) :
1280
Description

2-seater EV Pickup Truck from China 120km Range High Performance Off-road Outdoors Truck

EV Pickup Truck Parameters:

parameter configuration

EV Pickup Truck

Model name

XR

4XR

Model ID

KK1121D10

KK1121S10

Vehicle status

73.6V 10.5KW

73.6V 10.5KW

Right hand drive

○

○

Length × Width × Height (mm)

3650×1510×1820

3850X1510X1845

Container internal dimensions

1620X1245X300

900X1315X400

Wheelbase (mm)

2340

2520

Front track (mm)

1315

1315

Rear track (mm)

1315

1315

Front suspension (mm)

455

455

Rear suspention (mm)

705

705

Curb weight (kg)

850

885

Load quality (kg)

300

150

Seats No.

2

4

Gross weight (kg)

1280

1295

Performance parameters

Max speed (km/h)

80

80

Acceleration time s (0-40km)

20

20

Max grade

0.35

0.35

Min turning diameter (m)

≤11

≤11

Maximum angle

30(outer wheel)/32(inner wheel)

30(outer wheel)/32(inner wheel)

Approach angle (°)

≥55

≥55

Departure angle (°)

≥35

≥35

Bauchfreiheit (mm, no load)

≥200

≥200

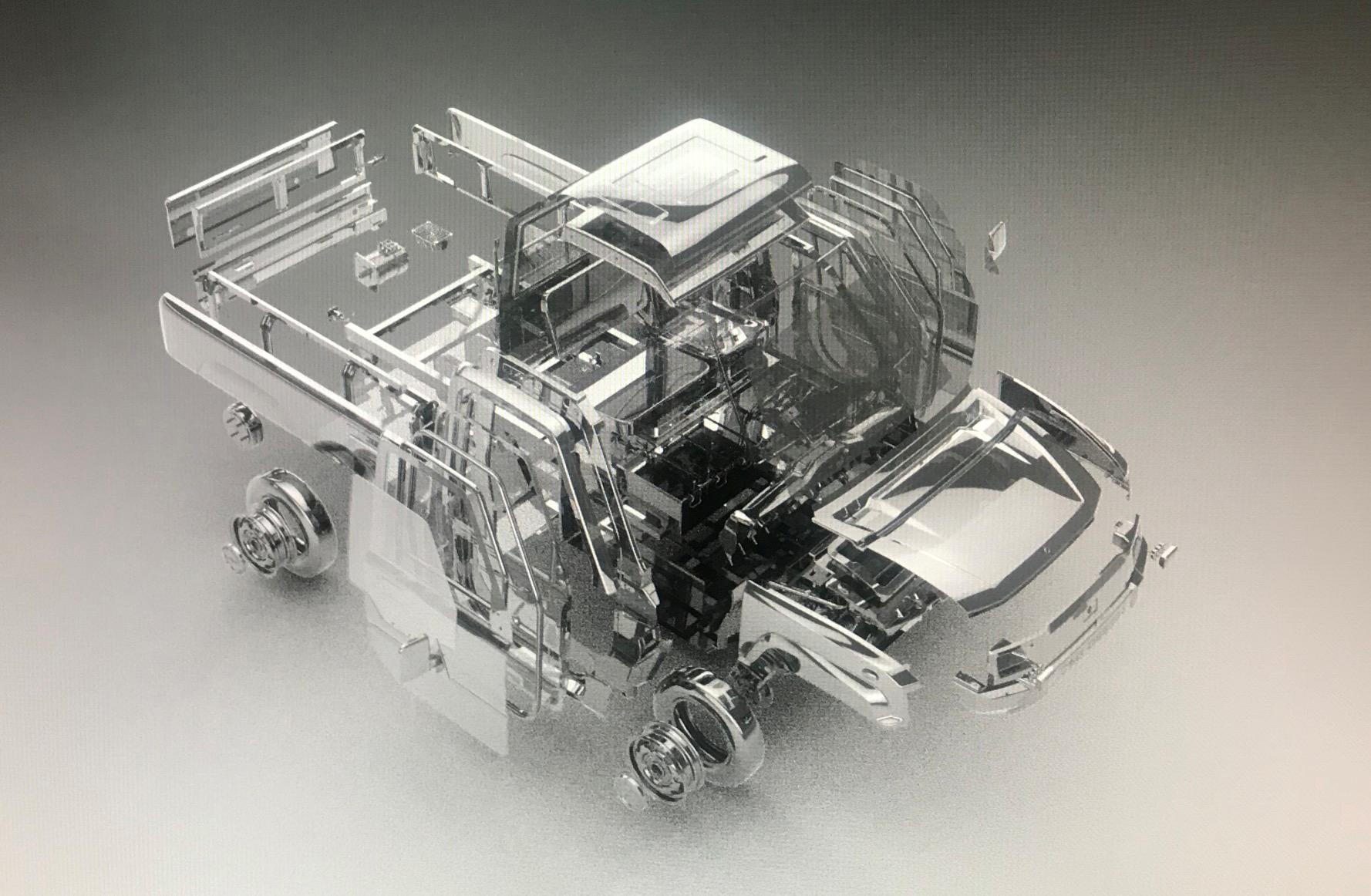

Core component:

 Centrally installed battery helps the weight of front part and back part of car evenly balanced.
 Front disc brake and rear drum brakes provide super brake performance of vehicle.
 Equipped with intelligent electronic control unit. If the brake systems fails, it will automatically alarm.
 Auto hold system can efficiently avoid car slipping.

120km Range Off Road Electric Truck Pickup 2 Seater High Performance

Maximum gradeability:
Lead-acid bettery 25°
Lithium bettery 35°

Min ground clearance:
Lead-acid bettery150mm
Lithium bettery 200mm
Max sideward heeling angle:
35°
The household 220V maximum 16A socket can be used, and the standard regular household socket can be used for charging.
We can change the plug type suitable for different countries.
XR model summary:
LxWxH 3650*1510*1820
Bed 1620*1245*300
Curb weight 850KG
Motor 10.5kw
Battery type Lithium
Battery Capacity 73.6V240AH
Max spped 80km/h
Load capacity 300kgs
MGC 200mm
Range ≥120km
Tire 195/65 R15

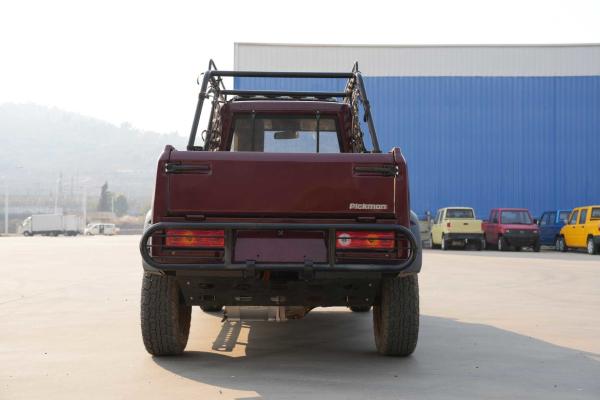

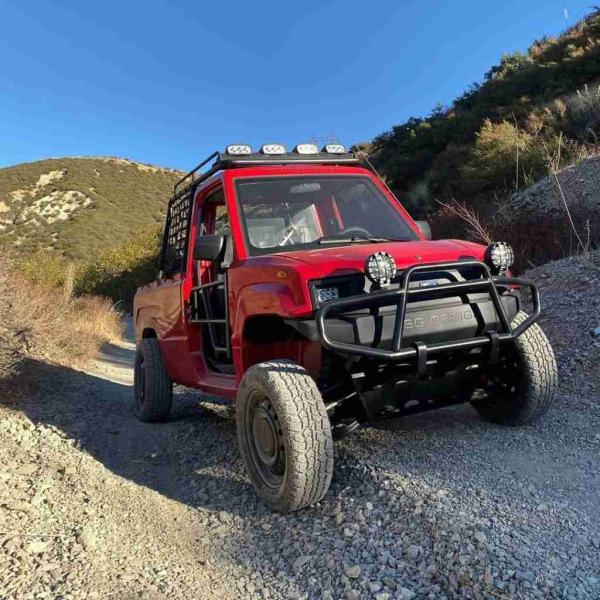

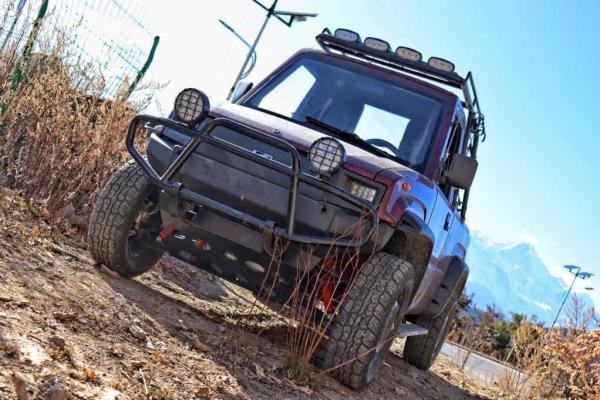

Photos:

120km Range Off Road Electric Truck Pickup 2 Seater High Performance

Company Profile

Our company was set up by a group of experts with over 20 years of developing, manufacturing, sales & marketing in electric vehicles.
Our products are widely exported to European, American, Southeast Asian and Middle East countries, winning high customers, dealers and importers satisfaction.
We provide overseas partners and customers with up-to-date, trend-leading design and well-engineered products and related technical support.

120km Range Off Road Electric Truck Pickup 2 Seater High Performance
