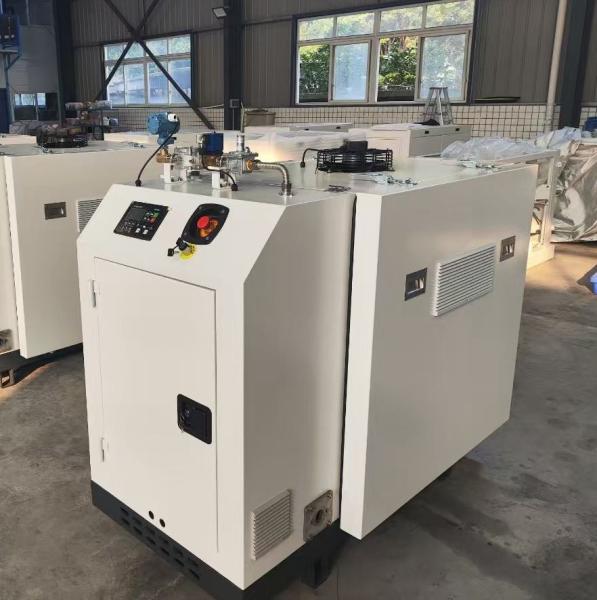

Electric Start Super Silent Low Noise 3 Phase Single Phase 6kw 8kw 10KVA Micro CHP Generator Set
Electric Start Super Silent Low Noise 3 Phase Single Phase 6kw 8kw 10KVA Micro CHP Generator Set
Electric Start Super Silent Low Noise 3 Phase Single Phase 6kw 8kw 10KVA Micro CHP Generator Set
Electric Start Super Silent Low Noise 3 Phase Single Phase 6kw 8kw 10KVA Micro CHP Generator Set
Electric Start Super Silent Low Noise 3 Phase Single Phase 6kw 8kw 10KVA Micro CHP Generator Set
Electric Start Super Silent Low Noise 3 Phase Single Phase 6kw 8kw 10KVA Micro CHP Generator Set
Electric Start Super Silent Low Noise 3 Phase Single Phase 6kw 8kw 10KVA Micro CHP Generator Set
Electric Start Super Silent Low Noise 3 Phase Single Phase 6kw 8kw 10KVA Micro CHP Generator Set
Specifications
Brand Name :
SevenPower
Model Number :
SP6N SP8N
Certification :
CE
Place of Origin :
Chengdu,China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
L/C, T/T
Delivery Time :
25-30days
product name :
Micro CHP
Fuel :
Natural gas, Biogas or LPG is available on request
Frequency :
50Hz,60Hz is available on request
Electrical Output :
6kw/8kw
Color :
White or Black, other colors please consult with the sales
Soundproof Canopy :
With or Without
Emissions :
Customised, available on request
Phase :
Single phase or 3 phase
Description

Electric Start Super Silent Low Noise 3 Phase Single Phase 6kw 8kw 10KVA Micro CHP Generator Set​

Selling Points
-Fully open design, much easier for maintenance
-Super silent, low noise level 56dB(A)@1meter
-Water cooled engine,Suitable for 24hours continuous running
-High overall efficiency
-Stable performance
-Multiple installations in Europe which approved the quality


Features

Engine / water-cooled / RPM1500 / 4Cylinders.
Optional at Meccalte / Leroy Somer alternator
Controller ComAp / DeepSea / SmartGen.
Speed governor Woodward
Ignition system Impco
Full stainless steel exhaust heat exchanger
With overall efficiency of 86-89%, depends on different models.
With or without catalyst converter to meet emissions requirements.
Optional at Off-grid and Mains parallel.
Optional at multi units in parallel.

Multiple Units Been Installed Around The World

Electric Start Super Silent Low Noise 3 Phase Single Phase 6kw 8kw 10KVA Micro CHP Generator Set

Electric Start Super Silent Low Noise 3 Phase Single Phase 6kw 8kw 10KVA Micro CHP Generator Set

Specification

Model SP8N
fuel — Natural Gas
marks — Synchro CHP
electrical output(KWe) kVA/kWe Continuous Power
10/8
thermal output(KWt) kWt 19.5
electrical efficiency % 25.6%
thermal efficiency % 62.6%
overall efficiency % 88.2%
frequency Hz 50
voltage V 400/230
gas inlet pressure kPa 1-10
Water Flow m³/h 2
dimension (soundproof type) mm*mm*mm 1530*750*940
net weight kgs 550
NG consumption m3/kW.h 0.396
Certificate — CE
water-water heat exchanger — SWEP
water-exhaust heat exchanger — designed by our own factory/made of full stainless steel
ignition system — Impco
speed governor — Woodward
gas filter — Madas
zero regulator — Maxitrol
pressure gauge — DUNGS
soft start — ABB
switch — ABB
lambda control — Available on request
catalyst converter — Available on request
ComAp
Engine model — SP9EW
Engine type — 4 cylinders,4stroke,16valves,water-coolled
RPM — 1500
Compression Ratio — 11
Displacement — 1.5L
Oil capacity — 3.9L
Charging voltage — 12V(DC)
Charging current — 6A(DC)
Starting system — Electic-start
model — Meccalte
phase — 3 phase
insulation system — class H
protection — IP23
Cooling Type — air cooled


8kw CHP on Site Picture
Electric Start Super Silent Low Noise 3 Phase Single Phase 6kw 8kw 10KVA Micro CHP Generator Set
For more information about each CHP, please consult with your sales representative.Thanks.

More Information About Our Factory
Our Packing
Electric Start Super Silent Low Noise 3 Phase Single Phase 6kw 8kw 10KVA Micro CHP Generator Set
Our Hannover Exhibition
Electric Start Super Silent Low Noise 3 Phase Single Phase 6kw 8kw 10KVA Micro CHP Generator Set
Our Showroom In Germany
Electric Start Super Silent Low Noise 3 Phase Single Phase 6kw 8kw 10KVA Micro CHP Generator Set

Our Customers' Visiting
Electric Start Super Silent Low Noise 3 Phase Single Phase 6kw 8kw 10KVA Micro CHP Generator Set
