220KW 280KVA 3 Phase Natural Gas CHP , Cogeneration Combined Heat And Power
220KW 280KVA 3 Phase Natural Gas CHP , Cogeneration Combined Heat And Power
Specifications
Brand Name :
SevenPower
Model Number :
SP220N
Certification :
CE
Place of Origin :
Chengdu,China
MOQ :
1 Set
Delivery Time :
30days
Price :
Negotiable
Payment Terms :
L/C, T/T
Fuel :
Natural gas, Biogas is available on request
Frequency :
60Hz
Electrical Output :
220kw
Color :
White or Black, other colors please consult with the sales
Emissions :
Available on request
Sounproof Canopy :
With or without
Description

60HZ 220KW 280KVA 3 Phase Natural Gas CHP Natural Gas Cogeneration Natural Gas Generator Set With Heat Recovery System

Production
- Keep customers posted on the progress of production.
- Systematical and strict testing before delivering to customers
- Testing

  • Including 0%,25%,50%, 75%, 100%, 110% load
  • Emergency stop
  • All protections(high temperature, low oil pressure, over speed, over load, over frequency and phase failure etc.)
  • Electrical and thermal power output
  • Synchronization

220KW 280KVA 3 Phase Natural Gas CHP , Cogeneration Combined Heat And Power

STORAGE TIME

RECOMMENDED SERVICE PROCEDURE TO

PREVENT HARD STARTING
Less than 1 month Drain all CHP water.
More than 1 month

Change engine oil.

Remove the spark plug, and pour about a tablespoon of clean engine oil into the cylinder. Crank the engine several revolutions to distribute the oil, then reinstall the spark plug.

Slowly pull the starter grip until resistance is felt. At this point, the piston is coming up on its compression stroke and both the intake and exhaust valves are closed. Storing the engine in this position will help to protect it from internal corrosion.

CHP Main Specifications

Item Model SP220N
fuel — Natural Gas
marks — Synchro CHP
CHP electrical output(KWe) kVA/kWe Continuous Power
275/220
thermal output(KWt) kWt 300
electrical efficiency % 34.4%
thermal efficiency % 47.6%
overall efficiency % 82%
frequency Hz 60
voltage V 440/254
gas inlet pressure kPa 3-5
dimension (soundproof type) mm*mm*mm 2900*1600*1800
net weight kgs 3500
NG consumption m3/kW.h 0.295
standard type-db(A)@7m — 59
Certificate — CE
water-water heat exchanger — SWEP
water-exhaust heat exchanger — made of full stainless steel
ignition system — Altronic
speed governor — Woodward or Hainzmann
mixer — Venturi type
gas filter — Madas
zero regulator — Kromschroeder

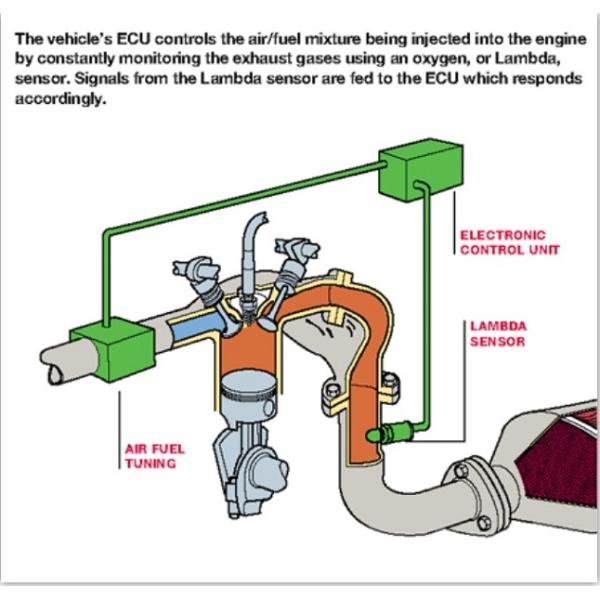

Lambda auto control — Available on request
emission standard — Available on request
MCB — ABB
GCB — ABB
Controller ComAp IC
Engine Engine model — STYER T12
Engine type — 6 cylinders,4stroke,water-coolled
RPM — 1800
Compression Ratio — 11.0
Displacement — 11.6L
Oil capacity — 36L
Charging voltage — 24V(DC)
Charging current — 5A(DC)
Starting system — Electic-start
Alternator model — Meccalte
phase — 3 phase 4 wires
insulation system — class H
protection — IP23
Cooling Type — air cooled

Why SevenPower?


- Environmentally friendly design
- Long time research and development and testing for high reliability
- Comprehensive heat insulation to minimize heat losses
- Water-to-water heat exchanger/SWEP, self-developed exhaust heat exchanger which is made of full stainless steel #316 instead of universal carbon steel which get rusty easily.
- CHP inner pipeline is made of full stainless steel.
- Maximum lower the noise level
- Maintenance friendly thanks to easy access
- Long service intervals
- Suitable for mains parallelling
- CE approved

For more information about the 220KW CHP, please consult with your sales representative.Thanks.
