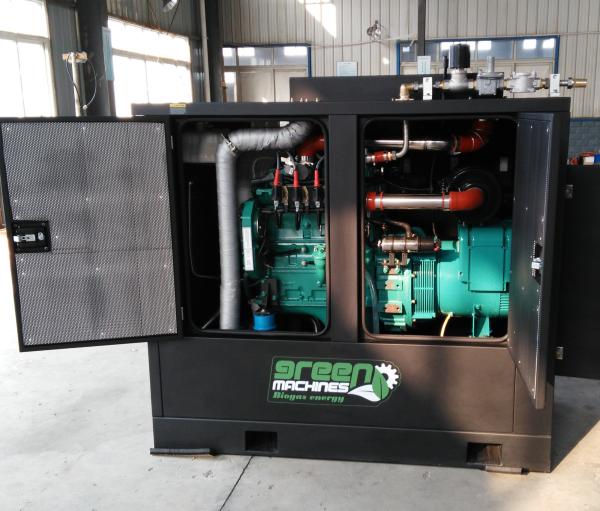

Biogas CHP BHKW 30KW 40KVA CE Certified For Heating Hot Water Farm Power Supply
Biogas CHP BHKW 30KW 40KVA CE Certified For Heating Hot Water Farm Power Supply
Specifications
Brand Name :
SevenPower
Model Number :
SP32B
Certification :
CE
Place of Origin :
Chengdu,China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
L/C, T/T
Delivery Time :
30-35days
Packaging Details :
foam wrapping
Frequency :
50Hz, 60Hz is available on request
Continuous Electrical Output :
30KW
Color :
Black, other colors is available on request
Soundproof Canopy :
With or Without
Fuel :
Biogas,natural gas is available on request
Emissions :
Available on request
Power Factor :
0.8
Voltage :
400/230V, other voltage is available on request
Description

Biogas CHP 30KW 40KVA CE Certified For Heating Hot Water Farm Power Supply

Biogas Requirements
-CHP4 ≥55%
-fluctuations value of biogas in pipeline <0.2Kpa
-hydrogen <10%
-sulfide, including hydrogen sulphide<200mg/m3
-chlorine fluorine compounds,mainly chlorofluoromethane<15mg/m3
-silicium<0.7mg/m3
-ammonia<15mg/m3
-liquid oil and hydrocarbons<50mg/m3
-particles<5μm Impurity content<30mg/m3

Different Configurations For Different Application
-Standalone off-grid operation or Synchronize to grid
-With or Without ATS
-With or Without soundproof canopy
-With or Without catalyst converter to reach emissions limit
-Single unit or several units in parallel
-Remote control

ModelSP32B
fuel—Biogas
marks—Synchro CHP
electrical output(KWe)kVA/kWeContinuous Power
38/30
thermal output(KWt)kWt53
electrical efficiency%29.1%
thermal efficiency%51.4%
overall efficiency%80.5%
frequencyHz50
voltageV400/230
gas inlet pressurekPa3-5
dimension (soundproof type)mm*mm*mm2100*1200*1500
net weightkgs1100
biogas consumptionm3/kW.h0.48
standard type-db(A)@7m—58
Certificate—CE
water-water heat exchanger—SWEP
water-exhaust heat exchanger—designed by our own factory/made of full stainless steel
ignition system—Impco
speed governor—Woodward
mixer—Venturi type
gas filter—Madas
zero regulator—Maxitrol
solenoid valve—Kromschroeder
gas pressure gauge—Dungs
Lambda auto control—Available on request with extral cost
catalyst converter—Available on request with extral cost
MCB—ABB
GCB—ABB
Controller ComAp
Engine model—SP-4BTA
Engine type—4 cylinders,4stroke,water-coolled
RPM—1500
Compression Ratio—10.5
Displacement—3.9L
Oil capacity—9.5L
Charging voltage—24V(DC)
Charging current—5A(DC)
Starting system—Electic-start
Alternator model—Meccalte
phase—3 phase 4 wires
insulation system—class H
protection—IP23
Cooling Type—air cooled

For more information about the continuous biogas 30kw CHP, please consult with your sales representative.Thanks.
