Premium CE Approved 2 Pcs 150kw 160kw In Parallel Silent Natural Gas BHKW CHP 300kw 320kw 400KVA
Premium CE Approved 2 Pcs 150kw 160kw In Parallel Silent Natural Gas BHKW CHP 300kw 320kw 400KVA
Premium CE Approved 2 Pcs 150kw 160kw In Parallel Silent Natural Gas BHKW CHP 300kw 320kw 400KVA
Premium CE Approved 2 Pcs 150kw 160kw In Parallel Silent Natural Gas BHKW CHP 300kw 320kw 400KVA
Premium CE Approved 2 Pcs 150kw 160kw In Parallel Silent Natural Gas BHKW CHP 300kw 320kw 400KVA
Premium CE Approved 2 Pcs 150kw 160kw In Parallel Silent Natural Gas BHKW CHP 300kw 320kw 400KVA
Premium CE Approved 2 Pcs 150kw 160kw In Parallel Silent Natural Gas BHKW CHP 300kw 320kw 400KVA
Premium CE Approved 2 Pcs 150kw 160kw In Parallel Silent Natural Gas BHKW CHP 300kw 320kw 400KVA
Premium CE Approved 2 Pcs 150kw 160kw In Parallel Silent Natural Gas BHKW CHP 300kw 320kw 400KVA
Premium CE Approved 2 Pcs 150kw 160kw In Parallel Silent Natural Gas BHKW CHP 300kw 320kw 400KVA
Specifications
Brand Name :
SevenPower
Model Number :
SP160N
Certification :
CE
Place of Origin :
Chengdu,China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
T/T
Delivery Time :
40days
Packaging Details :
foam wrapping
product name :
SP160N
Fuel :
Natural gas
Frequency :
50Hz,60Hz is available on request
Electrical Output :
160KWe
Thermal Output :
227KWt
Electrical Efficiency :
34.9%
Thermal Efficiency :
49.4%
Overall Efficiency :
84.3%
Engine Cooling Type :
Water cooled
Alternator Cooling Type :
Air cooled
Soundproof Canopy :
With
Color :
White or Black, other colors please consult with the sales
Emissions :
NOx and CO below 500mg/Nm3
Description

Premium CE Approved 2 pcs 150kw 160kw in Parallel Silent Natural Gas BHKW CHP 300kw 320kw 400KVA

2*150kw in Parallel to reach overall power size of 300kw

-when power needs below the set number, only one unit start

-when power size exceeds the set number, 2nd unit start and share the overall loads

-when power needs below the set number, one unit shut down

-when power needs below the set number, 2 units shut down

Why SevenPower CHPs?

- More than 15years experience in gas generator set/CHP

- Keep close cooperation with European companies for better quality
- Environmentally friendly design
- Long time research and development and testing for high reliability
- Maximum lower the noise level
- Long service intervals


Multiple Units Been Installed Around The World

Premium CE Approved 2 Pcs 150kw 160kw In Parallel Silent Natural Gas BHKW CHP 300kw 320kw 400KVA


Specification

Model SP160N
fuel — Natural Gas
marks — Synchro CHP
electrical output(KWe) kVA/kWe Continuous Power
200/160
thermal output(KWt) kWt 227
electrical efficiency % 34.9%
thermal efficiency % 49.4%
overall efficiency % 84.3%
frequency Hz 50
voltage V 400/230
gas inlet pressure kPa 3-5
NG consumption m3/kW.h 0.291
Certificate — CE
water-water heat exchanger — SWEP
water-exhaust heat exchanger — made of full stainless steel
Controller ComAp
Engine type — 6 cylinders,4stroke,water-coolled
RPM — 1500
Compression Ratio — 11.0
Displacement — 11.6L
Oil capacity — 36L
Starting system — Electic-start
Alternator type — Air cooled
phase — 3 phase
insulation system — class H
protection — IP23
Cooling Type — air cooled

For more information about each CHP, please consult with your sales representative.Thanks.

FAQ:

Q: What brand is the natural gas CHP product?

A: The brand name is SevenPower.

Q: Is the product CE certified?

A: Yes, it is CE certified.

Q: Where is the product manufactured?

A: The product is manufactured in Chengdu, China.

Q: What is the minimum order quantity?

A: The minimum order quantity is 1 set.

Q: What is the delivery time for the product?

A: The delivery time is 30-40 days.

Q: What is the model number of the product?

A: The model number is SP160N.

Q: Is the price negotiable?

A: Yes, the price is negotiable.

Q: What are the payment terms for the product?

A: The payment terms are T/T.

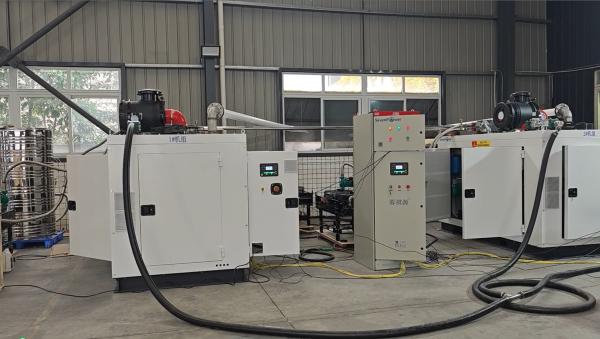

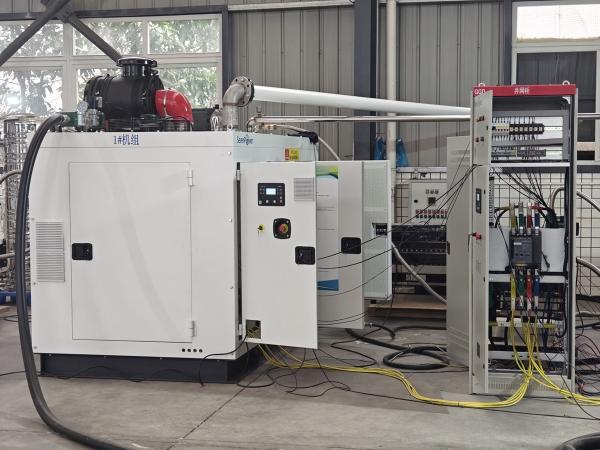

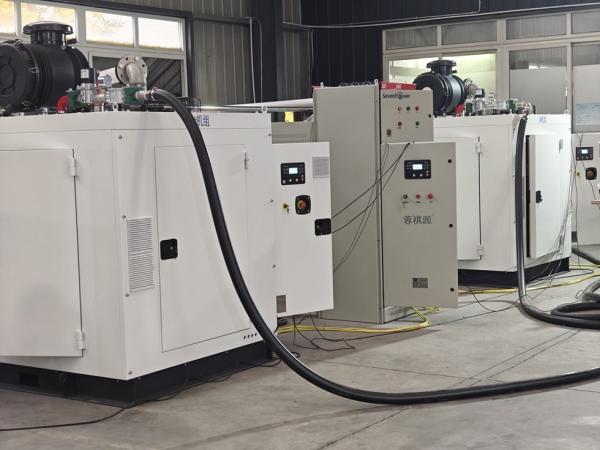

Micro CHP on Site Picture
More Information About Our Factory
Our Factory
Premium CE Approved 2 Pcs 150kw 160kw In Parallel Silent Natural Gas BHKW CHP 300kw 320kw 400KVA
Our Hannover Exhibition
Premium CE Approved 2 Pcs 150kw 160kw In Parallel Silent Natural Gas BHKW CHP 300kw 320kw 400KVA
Our Showroom In Germany
Premium CE Approved 2 Pcs 150kw 160kw In Parallel Silent Natural Gas BHKW CHP 300kw 320kw 400KVA

Our Customers' Visiting
Premium CE Approved 2 Pcs 150kw 160kw In Parallel Silent Natural Gas BHKW CHP 300kw 320kw 400KVA
