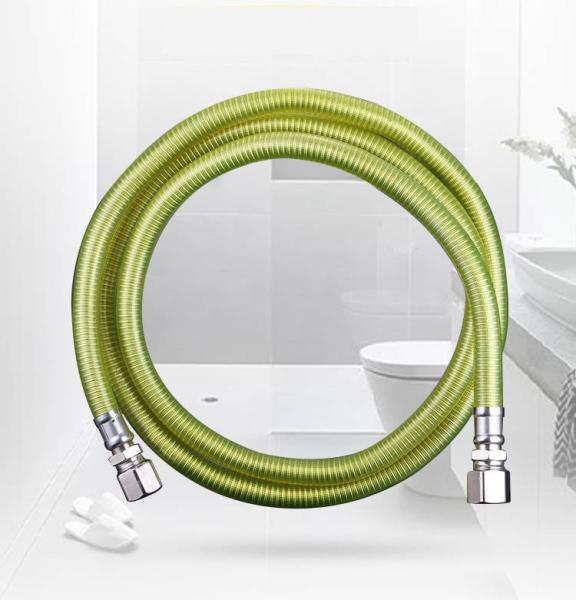

DN15 Gas Cooker Pipes , 600mm Lpg Gas Cooker Hose Thread Connectors
DN15 Gas Cooker Pipes , 600mm Lpg Gas Cooker Hose Thread Connectors
DN15 Gas Cooker Pipes , 600mm Lpg Gas Cooker Hose Thread Connectors
DN15 Gas Cooker Pipes , 600mm Lpg Gas Cooker Hose Thread Connectors
Specifications
Brand Name :
KONCH GAS
Model Number :
DN15x600
Certification :
ISO9001, ISO14001, OHSAS18001
Place of Origin :
CHONGQING, CHINA
MOQ :
500 PCS
Price :
USD2.5-3.0 per Piece
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
100000 PCS per Month
Delivery Time :
10-25 days
Packaging Details :
bags
Material :
SS304 + PVC
Connectors :
Thread + Thread
Length :
600 mm
Usage :
Gas Cooker
Description

None Leaking Government Recommened Explosion Proof Cooker Gas Hoses

1. Corrosion resistance: The main body of the bellows is made of 304 or 316L stainless steel. For example,

the pipe Yisheng stainless steel bellows is made of 316L stainless steel. Both ends of the pipeline adopt

stainless steel joints or carbon steel joints, which have good corrosion resistance and also ensure that it

has a strong seal.

2. High pressure resistance: The bellows considers many factors such as actual working pressure, use

environment and conditions, and all parameters have been carefully calculated and repeatedly tested to

ensure its pressure safety during work.

DN15 Gas Cooker Pipes , 600mm Lpg Gas Cooker Hose Thread Connectors

Product Features

1. High-quality imported 304 stainless steel, with nickel content ≥8.0%, over 50 years of service life of the

stainless-steel pipe body.

2. Deeper and denser corrugation, with better flexibility and safety.

3. Integrated pipe fittings and pipes, making the installation easier and faster;

4. Short and hidden tube neck inside the tube, good protected and invulnerable to damage

DN15 Gas Cooker Pipes , 600mm Lpg Gas Cooker Hose Thread Connectors

Highlights of Product —— SAFE USE OF GAS FOR THE WHOLE FAMILY

01/ Protective sleeve,flame-retardant material

Outer sleeve adopts insulating and flame-retardant material, which effectively prevents burning, and it is automatically extinguished without fire sources.

 DN15 Gas Cooker Pipes , 600mm Lpg Gas Cooker Hose Thread Connectors

DN15 Gas Cooker Pipes , 600mm Lpg Gas Cooker Hose Thread Connectors

02/ SS304 hose, rat bite-proof

The high-strength SS304 hose is with high pressure bearing, can also effectively prevent gas leakage caused by rat bites

03/ Thick copper pipe, well connection seal

The pipe fittings are made of HPb59-1 copper, electroplated surface, built-in sealing rings (NBR rubber), with excellent sealing performance.

 DN15 Gas Cooker Pipes , 600mm Lpg Gas Cooker Hose Thread Connectors

DN15 Gas Cooker Pipes , 600mm Lpg Gas Cooker Hose Thread Connectors

04/ Super flexibility, bend at will

The design of corrugated hose secures its very good flexibility, bend at will, convenient installation.

05/ Air grooves

The cover sleeve with air grooves can guide the leaking gas to flow to the detective hole at the connecting ends, for purpose of accurate monitoring.

 DN15 Gas Cooker Pipes , 600mm Lpg Gas Cooker Hose Thread Connectors

PRODUCT PARAMETERS

Brand: Konch Gas
Product name: Stainless steel corrugated hose for gas
Inner tube: SS304
Outer sleeve: Soft PVC, flame-retardant
Connectors: Copper HPb59-1, SS30408
Sealing ring: NRB (Nitrile Butadiene Rubber)
Nominal pressure: PN≤0.2MPa
Working temperature: -20℃ to 120℃
Application: Pipeline of gas, LPG, natural gas, biogas and connections to gas appliances.

DN15 Gas Cooker Pipes , 600mm Lpg Gas Cooker Hose Thread Connectors

Model number DN10
(13.5)		 DN13
(15.8)		 DN13
(16.8)		 DN15
(18.5)		 DN15
(20.0)		 DN20
(25.0)		 DN25
(32.0)
Hose outer dia. φDo (±0.2mm) 13.5 16.0 16.8 18.5 20.0 25.0 32.0

PVC outer dia.

(±0.3mm)

 15.0 17.5 18.3 20.0 21.5 26.5 33.5
Hose inner dia. φDi (+0.3mm) 9.6 12.6 13.0 15.0 16.0 20.0 25.0

Hose pitch q

(+0.3mm)

 2.6 4.0 4.0 4.0 5.0 5.0 6.0

PRODUCT COMPARISON

DN15 Gas Cooker Pipes , 600mm Lpg Gas Cooker Hose Thread Connectors DN15 Gas Cooker Pipes , 600mm Lpg Gas Cooker Hose Thread Connectors DN15 Gas Cooker Pipes , 600mm Lpg Gas Cooker Hose Thread Connectors
Item name Plastic hose Aluminum tube SS304 corrugated hose
Material Plastic Plastic+Alu Plastic+SS304
Service life 3 years 10 years 50 years
Safety level Low Middle High
Connection method Clamp Press+Screw Snap ring+Screw
Advantages 1. Good flexibility.
2. Cheap price.		 1. High safety level and long service life 1. Good flexibility.
2. Very long service life.
3. High safety level, easy to monitor leaking
4. Easy installation, solid connection
Disadvantages 1. Short service life
2. Easy broken, easy been cut
3. Easy to loosen and fall off		 1. Low flexibility, not easy to bend
2. Low compensation, easy to loosen
3. Easy to loosen at press spot due to temperature change		 1. Price higher, if not take life time into account

INSTALLATION STEPS

DN15 Gas Cooker Pipes , 600mm Lpg Gas Cooker Hose Thread Connectors

DN15 Gas Cooker Pipes , 600mm Lpg Gas Cooker Hose Thread Connectors

WORKSHOP AND EQUIPMENT

6 Production lines for stainless steel gas pipes, and10 lines for PVC-U/ PPR water pipes

DN15 Gas Cooker Pipes , 600mm Lpg Gas Cooker Hose Thread Connectors

DN15 Gas Cooker Pipes , 600mm Lpg Gas Cooker Hose Thread Connectors

PROJECT PARTNERS

DN15 Gas Cooker Pipes , 600mm Lpg Gas Cooker Hose Thread Connectors

GUARANTEE

DN15 Gas Cooker Pipes , 600mm Lpg Gas Cooker Hose Thread Connectors
