Based on the analysis of the use of metal hoses, the main causes of metal hoses blowout at present are

improper operation of personnel, and the quality of hoses is not up to standard. This is related to employees'

insufficient understanding of the importance of their own work and enterprises' excessive economic benefits.

Based on this, the pipeline manufacturing industry and relevant enterprises that need to use hoses for pipeline

transportation work need to actively analyze the safety risks existing in the current work link based on their

own development goals and directions. Focus on optimizing the internal management mechanism and improving

the staff's working ability and quality

Product Features

1. Flexible ways of installation and beautiful layout, such as It can be installed in the open, in the dark,

through the ceiling or embedded in the wall, the laying method is flexible and diverse, and the installation

effect is beautiful.

2. The internal metal hose is made of S30408 austenitic stainless steel, which is corrosion-resistant and

non-aging, with a designed service life of more than 50 years.

3. The design of air grooved plastic sleeve is easy for monitoring leaking.

4. It is with compensation, good shock resistance, resistance to thermal expansion and contraction, and

resistance to uneven settlement., as well as excellent high temperature resistance, low temperature

resistance and fire resistance.

5. Light weight, good bending performance, free length choices, simple installation.

Highlights of Product —— SAFE USE OF GAS FOR THE WHOLE FAMILY

01/ Protective sleeve,flame-retardant material Outer sleeve adopts insulating and flame-retardant material, which effectively prevents burning, and it is automatically extinguished without fire sources.

02/ SS304 hose, rat bite-proof The high-strength SS304 hose is with high pressure bearing, can also effectively prevent gas leakage caused by rat bites

03/ Thick copper pipe, well connection seal The pipe fittings are made of HPb59-1 copper, electroplated surface, built-in sealing rings (NBR rubber), with excellent sealing performance.

04/ Super flexibility, bend at will The design of corrugated hose secures its very good flexibility, bend at will, convenient installation.

05/ Air grooves The cover sleeve with air grooves can guide the leaking gas to flow to the detective hole at the connecting ends, for purpose of accurate monitoring.

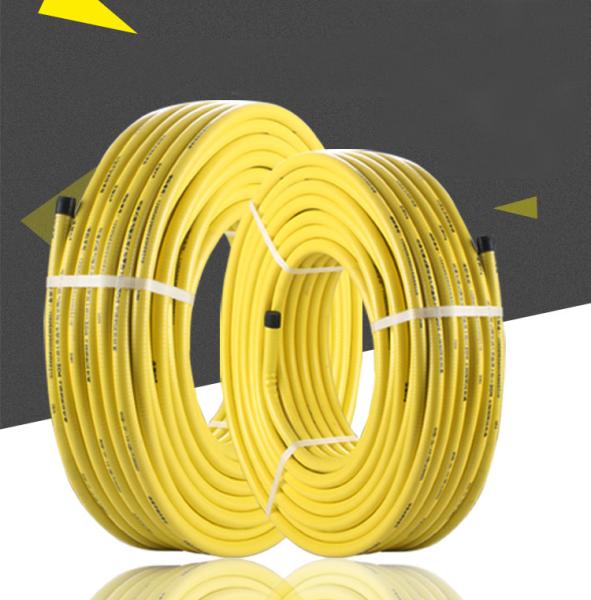

PRODUCT PARAMETERS

Brand: Konch Gas
Product name: Stainless steel corrugated hose for gas
Inner tube: SS304
Outer sleeve: Soft PVC, flame-retardant
Connectors: Copper HPb59-1, SS30408
Sealing ring: NRB (Nitrile Butadiene Rubber)
Nominal pressure: PN≤0.2MPa
Working temperature: -20℃ to 120℃
Application: Pipeline of gas, LPG, natural gas, biogas and connections to gas appliances.

PRODUCT COMPARISON

WORKSHOP AND EQUIPMENT

6 Production lines for stainless steel gas pipes, and10 lines for PVC-U/ PPR water pipes

PROJECT PARTNERS

GUARANTEE
