Industrial Oil Fired Steam Generator , Small Steam Generator High Safety
Industrial Oil Fired Steam Generator , Small Steam Generator High Safety
Industrial Oil Fired Steam Generator , Small Steam Generator High Safety
Industrial Oil Fired Steam Generator , Small Steam Generator High Safety
Specifications
Brand Name :
WILFORD
Model Number :
LSS
Certification :
CE
Place of Origin :
China
MOQ :
1 stand
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
25 stand/stands per Month
Delivery Time :
15-20 working days
Packaging Details :
Wooden box package
Rated evaporation :
50-125kg
Water capacity :
29/49.3/49.6L
Safety valve diameter :
20DN
Water inlet diameter :
15DN
Blowoff valve diameter :
20DN
Chimney diameter :
80/125/125DN
Description

Small Size Industrial Professional Oil Fired Steam Generator For Sale

Product introduction

1 . The water volume of the above products is small, it can be exempted from inspection, and the speed of starting and stopping the furnace is fast.


2 . Increase the condensing device, and the structure of the furnace body has good heat absorption effect.


3 . The internal structure is reasonable and the structure is compact, which fully enhances the heat transfer of the flue gas and has high thermal efficiency.


4 . The use of high-quality energy-saving devices, to a certain extent, reduce the consumption of resources and reduce the cost of investment.


5 . In the aspects of water shortage protection, water level, steam pressure, flame detection, etc., multiple interlocking protection devices are installed, which has high safety.


6 . Since the installation area of the whole equipment is small and compact, it is possible to introduce multiple installations and use multiple boilers for networking.


Parameter

Model LSS0.05-0.7-Y.Q LSS0.1-0.7-Y.Q LSS0.125-0.7-Y.Q
Project Unit
Rated evaporation Kg/h 50 100 125
Rated working pressure MPa 0.7 0.7 0.7
Staturated steam temperature ℃ 170 170 170
Fuel consumption Light diesel oil kg/h 3.5 6.8 8.5
Natural gas Nm³/h 3.5 7 8.75
LPG Nm³/h 1.5 3 3.8
City gas Nm³/h 8.5 18 22.5
Water capacity L 29 49.3 49.6
a Main steam valve diameter DN 15 25 25
b Safety valve diameter DN 20 20 20
c Inlet diamater DN 15 15 15

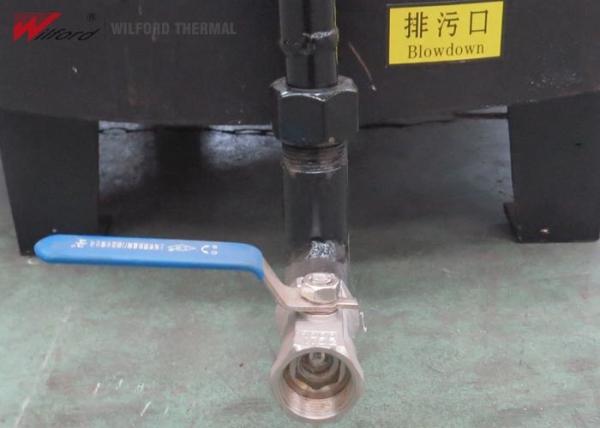

d Blowoff Valve diameter DN 20 20 20
Chimney diameter DN 80 125 125
Overall size L mm 820 880 900
W mm 890 1100 1150
H mm 1600 1800 1900
φ Diameter mm 600 650 650
Weight kg 180 220 240

Advantage

  • Small steam generator

  • Advanced full premixed combustion technology

  • Good heat absorption and heat transfer effect

  • Burning more fully

  • Energy saving, low consumption, safety

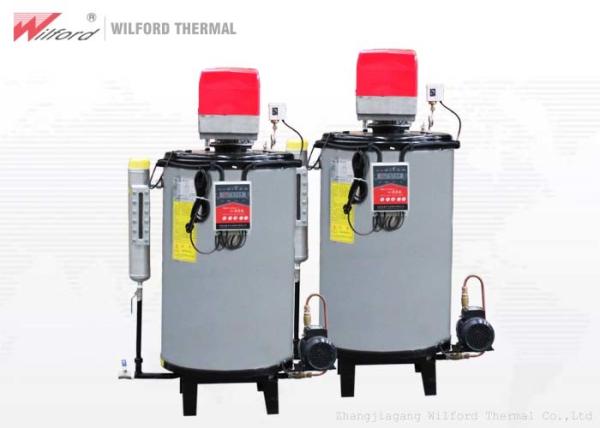

Product picture

Industrial Oil Fired Steam Generator , Small Steam Generator High Safety

Project case diagram

Industrial Oil Fired Steam Generator , Small Steam Generator High Safety
