Commercial Skid Mounted Boiler , Automatic Steam Generator Easy Installation
Commercial Skid Mounted Boiler , Automatic Steam Generator Easy Installation
Specifications
Brand Name :
WILFORD
Model Number :
LDR
Certification :
CE
Place of Origin :
China
MOQ :
1 stand
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
10 stand/stands per Month
Delivery Time :
15-20 working days
Packaging Details :
Export wooden Packing
Rated evaporation :
12-80KW
Rated working pressure :
0.7Mpa
Input power :
9-54KW
Input current :
14-81A
Structure :
Fully Skid - Mounted
Dimension(L*W*H) :
Depends
Description

Commercial & Automatic Electric Skid - Mounted Steam Generator

Product introduction

  • Skid-mounted boiler system, free of installation.

  • The customer's on-site installation is small, and the production and assembly are all done in the factory.

  • To some extent, some technical problems at the construction site have been solved.

  • The customer only needs to complete the interface pipe and external electrical connection.

  • Convenient for overall migration, smaller footprint than traditional installation methods.

  • According to customer needs, humanized design.


Parameter

Model LDR0.012-0.7 LDR0.016-0.7 LDR0.025-0.7 LDR0.035-0.7 LDR0.05-0.7 LDR0.06-0.7 LDR0.08-0.7 LDR0.1-0.7 LDR0.125-0.7
Project UNIT
Rated evaporation Kg/h 12 16 25 35 50 60 80 100 125
Rated working pressure MPa 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7
Saturated steam temperature ℃ 170 170 170 170 170 170 170 170 170
Input power KW 9 12 18 27 36 40 54 72 90
Input current A 14 18 27 41 54 60 81 108 135
Rated voltage V 3N AC 50Hz 380V
a Main steam valve diameter DN 15 15 15 15 15 15 15 25 25
b Safety valve diameter DN 15 15 15 15 15 15 15 25 25
c Inlet diamater DN 15 15 15 15 15 15 15 15 15
d Blowoff valve diameter DN 150 15 15 15 15 15 15 20 20

Overall size		 L mm 600 600 680 680 750 750 750 750 750
W mm 540 540 600 600 600 680 680 660 660
H mm 800 800 950 950 1200 1200 1200 1450 1450
Weight kg 86 95 105 115 130 150 160 180 195

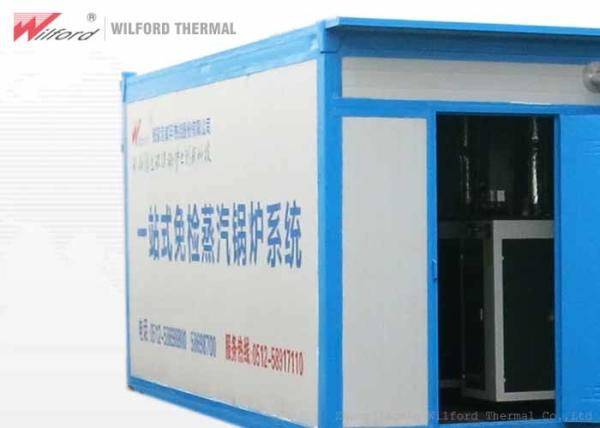

Product picture

Commercial Skid Mounted Boiler , Automatic Steam Generator Easy Installation
