Food Factory Industrial Steam Generator High Starting Speed Environmental Protection
Food Factory Industrial Steam Generator High Starting Speed Environmental Protection
Specifications
Brand Name :
WILFORD
Model Number :
LSS
Certification :
CE
Place of Origin :
China
MOQ :
1 stand
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
10 stand/stands per Month
Delivery Time :
15-20 working days
Packaging Details :
Packing in wooden box
Rated evaporation :
0.1T/h
Staturated steam temperature :
170℃
Main steam valve diameter :
25DN
Water inlet diameter :
15DN
Blowoff valve diameter :
20DN
Usage :
Food Factory
Description

Automatic Industrial Oil Fired Steam Generator For Food Factory

Product introduction

  • Advanced technology: full premixed combustion technology, multiple steam separation technology, condensing unit.

  • Thermal efficiency: The flame process is long and the combustion is very full, the thermal efficiency is very high, and the fuel consumption is reduced.

  • Starting speed: The furnace starts fast and the temperature and pressure can rise rapidly.

  • Environmental protection: forced circulation, full combustion, reducing NOx emissions.

  • Safety: With multi-chain protection device to ensure safe and stable operation of the boiler.


Parameter

Model LSS0.05-0.7-Y.Q LSS0.1-0.7-Y.Q LSS0.125-0.7-Y.Q
Project Unit
Rated evaporation Kg/h 50 100 125
Rated working pressure MPa 0.7 0.7 0.7
Staturated steam temperature ℃ 170 170 170
Fuel consumption Light diesel oil kg/h 3.5 6.8 8.5
Natural gas Nm³/h 3.5 7 8.75
LPG Nm³/h 1.5 3 3.8
City gas Nm³/h 8.5 18 22.5
Water capacity L 29 49.3 49.6
a Main steam valve diameter DN 15 25 25
b Safety valve diameter DN 20 20 20
c Inlet diamater DN 15 15 15
d Blowoff Valve diameter DN 20 20 20
Chimney diameter DN 80 125 125
Overall size L mm 820 880 900
W mm 890 1100 1150
H mm 1600 1800 1900
φ Diameter mm 600 650 650
Weight kg 180 220 240


Advantage

1 . The furnace structure is reasonable


2 . The combustion intensity is relatively high


3 . Increase the condenser device


4 . Enhanced convective heat transfer


5 . Multiple data detection protection

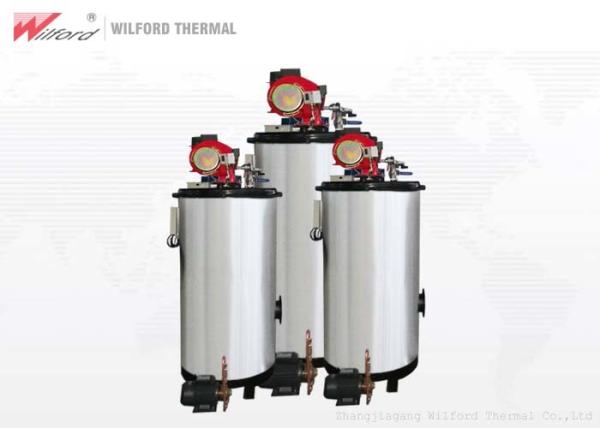

Product picture

Food Factory Industrial Steam Generator High Starting Speed Environmental Protection

Project case diagram

Food Factory Industrial Steam Generator High Starting Speed Environmental Protection
