Full Automatic Diesel Steam Generator Natural Circulation For Steam Car Wash
Full Automatic Diesel Steam Generator Natural Circulation For Steam Car Wash
Specifications
Brand Name :
WILFORD
Model Number :
LSS
Certification :
CE
Place of Origin :
China
MOQ :
1 stand
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
10 stand/stands per Month
Delivery Time :
15-20 working days
Packaging Details :
Export wooden Packing
Rated evaporation :
50-125kg/h
Staturated steam temperature :
170℃
Main steam valve diameter :
15-25DN
Chimney diameter :
80-125DN
Type :
Natural Circulation
Operation :
Full automatic
Description

Hot Sale Diesel Oil Fired Steam Generator For Steam Car Wash

Product introduction

  • It is a small fuel (gas) steam generator with a fast start-up speed.

  • Adopt advanced energy-saving devices and increase the condensing device to save energy and reduce consumption.

  • Special furnace structure, greatly reducing the loss of heat and enhancing the heat transfer effect.

  • Achieve high temperature and high pressure in a short time, natural circulation.

  • The automation control interface is fully upgraded to enhance safety functions.


Parameter

Model LSS0.05-0.7-Y.Q LSS0.1-0.7-Y.Q LSS0.125-0.7-Y.Q
Project Unit
Rated evaporation Kg/h 50 100 125
Rated working pressure MPa 0.7 0.7 0.7
Staturated steam temperature ℃ 170 170 170
Fuel consumption Light diesel oil kg/h 3.5 6.8 8.5
Natural gas Nm³/h 3.5 7 8.75
LPG Nm³/h 1.5 3 3.8
City gas Nm³/h 8.5 18 22.5
Water capacity L 29 49.3 49.6
a Main steam valve diameter DN 15 25 25
b Safety valve diameter DN 20 20 20
c Inlet diamater DN 15 15 15
d Blowoff Valve diameter DN 20 20 20
Chimney diameter DN 80 125 125
Overall size L mm 820 880 900
W mm 890 1100 1150
H mm 1600 1800 1900
φ Diameter mm 600 650 650
Weight kg 180 220 240


Advantage

1 . Low pollution and high thermal efficiency


2 . Natural circulation


3 . Using multiple steam separation technology


4 . Low carbon boiler combustion technology


5 . Burning efficiency 96%


6 . Small installation area


7 . Safe and reliable

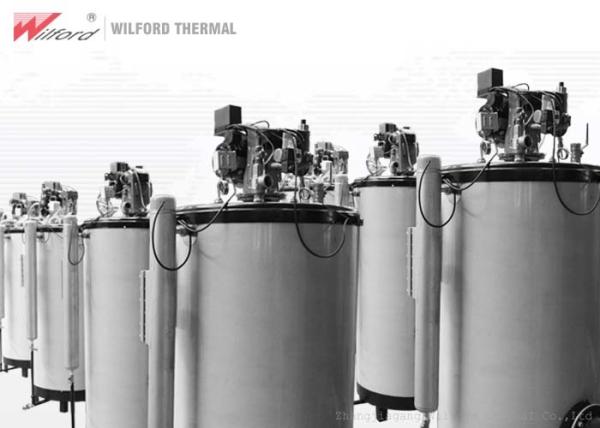

Product picture

Full Automatic Diesel Steam Generator Natural Circulation For Steam Car Wash


Project case diagram

Full Automatic Diesel Steam Generator Natural Circulation For Steam Car Wash
