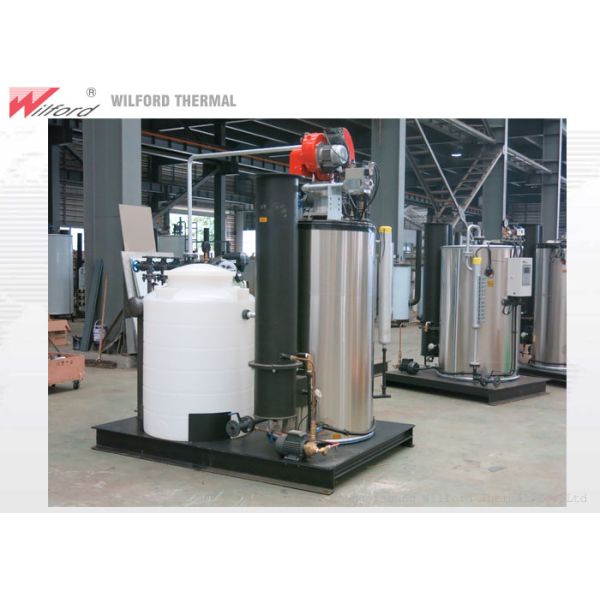

300kg/H Fully Skid Mounted Natural Gas Fired Steam Boiler
300kg/H Fully Skid Mounted Natural Gas Fired Steam Boiler
300kg/H Fully Skid Mounted Natural Gas Fired Steam Boiler
300kg/H Fully Skid Mounted Natural Gas Fired Steam Boiler
300kg/H Fully Skid Mounted Natural Gas Fired Steam Boiler
300kg/H Fully Skid Mounted Natural Gas Fired Steam Boiler
Specifications
Brand Name :
WILFORD
Model Number :
LSS
Certification :
ASME,ISO9001,CE
Place of Origin :
China
MOQ :
1 stand
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
10 stand/stands per Month
Delivery Time :
15-20 working days
Packaging Details :
Export wooden Packing
Rated evaporation :
250-300kgT/h
Rated working pressure :
0.7Mpa
Staturated steam temperature :
170℃
Fuel :
Light diesel oil
Dimension(L*W*H) :
Depends
Usage :
chemical,medical,food,washing etc.
Style :
Vertical
Condition :
New
Output :
Steam
Type :
Natural Circulation
After-sales service provided :
Engineers available to service machinery overseas
Structure :
Water Tube
Dimension(l*w*h) :
Depends on the boiler capacity
Warranty :
1 Year
Product name :
Oil Gas Fired Steam Boiler
Thermal efficiency :
92%--98%
Design fuel :
Light Oil,etc,Oil/Gas,Gas
Description

250-300kg/h Fully Skid Mounted Natural Gas/Diesel Oil Fuel Steam Boiler For Industry

Fully Skid Mounted Steam Boiler Product introduction

  • 250-300kg/h Fully Skid MountedBoiler water volume is small, with quick start of cold furnace,which can realize temperature and pressure rise during a short period of time.

  • Built-in multi steam and water separation technology,quality steam .

  • With multiple chain protection for water level,steam pressure,overheating ,which is safe and reliable

  • Fully skid-mounted design .Boiler and all auxiliary parts arrange together on one down base .Free of installation . 3.Current all type boilers could arrange skid-mounted .

  • Fully skid mounted boiler system --production and assembly all finished before cargo delivery .

  • User only need to arrange for necessary connection as well as electricity supply is enough .All system on one down base ,easily for move .

  • Fully skid mounted system covers less room space .Easily for handling and operation .

Fully Skid Mounted Steam Boiler Parameter

Model LSS0.05-0.7-Y.Q LSS0.1-0.7-Y.Q LSS0.125-0.7-Y.Q LSS0.2-0.7-Y.Q LSS0.25-0.7-Y.Q LSS0.3-0.7-Y.Q LSS0.5-0.7-Y.Q
Project Unit
Rated evaporation Kg/h 50 100 125 200 250 300 500
Rated working pressure MPa 0.7 0.7 0.7 0.7 0.7 0.7 0.7
Staturated steam temperature ℃ 170 170 170 170 170 170 170
Fuel consumption Light diesel oil kg/h 3.5 6.8 8.5 14 16 20 33
Natural gas Nm³/h 3.5 7 8.75 15 19 22 36.5
LPG Nm³/h 1.5 3 3.8 6 7.5 9 14.5
City gas Nm³/h 8.5 18 22.5 34 43 52 88
Water capacity L 29 49.3 49.6 49.5 49.5 49.5 49.6
a Main steam valve diameter DN 15 25 25 32 32 32 50
b Safety valve diameter DN 20 20 20 25 25 25 40
c Inlet diamater DN 15 15 15 15 15 15 15
d Blowoff Valve diameter DN 20 20 20 25 25 25 25
Chimney diameter DN 80 125 125 150 150 150 250
Overall size L mm 820 880 900 1400 1500 1500 1800
W mm 890 1100 1150 1000 1100 1200 1300
H mm 1600 1800 1900 1000 2200 2200 2350
φDiameter mm 600 650 650
Weight kg 180 220 240 850 1150 1200 1680

Fully Skid Mounted Steam Boiler detail drawing

300kg/H Fully Skid Mounted Natural Gas Fired Steam Boiler

Fully Skid Mounted Steam Boiler FAQ

Q1: How can you get the best price quickly?

(1) We need to know the boiler capacity, the fuel you plan to use and the steam pressure you need, and then we can confirm the boiler model.
(2) Customer needs to provide us your name, email address and company name, and then we will send you price list immediately.And if you use whatsapp, skype or wechat, you can provide us your ID, it will be more convenient for our communication.

Q2: Why should you believe our boiler quality?
(1).Strength calculation report with applied materials information;
(2).100%NDT(non-destructive inspection) report of steel plate, tube and welding rod;
(3).100% X-ray inspection(welding seam): ensure the quality of entire boiler;
(4).Hydrostatic test: ensure the standard working pressure and safety;
(5).Third-party inspection report.

Q3: What about the installation and Commissioning?
After you receive the boiler, we will guide you to make some preparation for installation;If necessary, our expert will fly to your local place The experts will responsible for guiding installation and commissioning.
