High Safety Industrial Hot Water Boiler Compact Structure For Hotel Bath
High Safety Industrial Hot Water Boiler Compact Structure For Hotel Bath
Specifications
Brand Name :
WILFORD
Model Number :
CLHS
Certification :
CE
Place of Origin :
China
MOQ :
1 stand
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
10 stand/stands per Month
Delivery Time :
15-20 working days
Packaging Details :
Packing in wooden box
Rated thermal power :
0.06-1.7MW
Total heating capacity :
50000-150000kcal
Water inlet diameter :
50/65DN
Water outlet diameter :
50/65DN
Overall size :
Depends
Weight :
270-450kg
Description

Industrial Vertical Oil Fired Hot Water Boiler For Hotel Bath

Product introduction

  • CLHS series boiler, vertical structure, compact structure and beautiful appearance.

  • Compared with other fuel gas hot water boilers, it is smaller in size and requires less installation space and is easy to install.

  • Its burner is imported, with high combustion efficiency and low noise.

  • It has a small amount of soot emissions and a low NOx.

  • The unique "self-cleaning" function greatly improves the heat transfer effect and reduces heat loss.

  • The entire operation process is intelligent, automated, safe and efficient.

  • The protection function is very complete and absolutely safe.


Parameter

Type CLHS0.06-95/70-Y.Q CLHS0.12-95/70-Y.Q CLHS0.17-95/70-Y.Q CLHS0.23-95/70-Y.Q
Project Unit
Rated thermal power MW 0.06 0.12 0.17 0.23
Total heat capacity 104kcal 5 10 15 20
Rated working pressure MPa Ordinary Pressure
Fuel consumption Light diesel oil kg/h 5.4 10.8 16.2 21.6
Natural gas Nm3/h 5.8 11.7 17.5 23.4
LPG Nm3/h 2.5 5 7.5 10
City gas Nm3/h 14.2 28.3 42.5 56.6
Water inlet diameter DN 50 65 65 65
Water outlet diameter DN 50 65 65 65
Blowoff valve diameter DN 25 25 25 25
Voltage V 220 220 220 220

Overall size		 Length mm 800 980 1150 1250
Width mm 700 850 900 1000
Height mm 1300 1650 1800 1950
Weight kg 270 410 450 520

Advantage

1 . Thermal efficiency is higher than 90%


2 . Use threaded tobacco pipe


3 . Adding spoiler technology in the application pipe


4 . Insulation material


5 . Safe and reliable

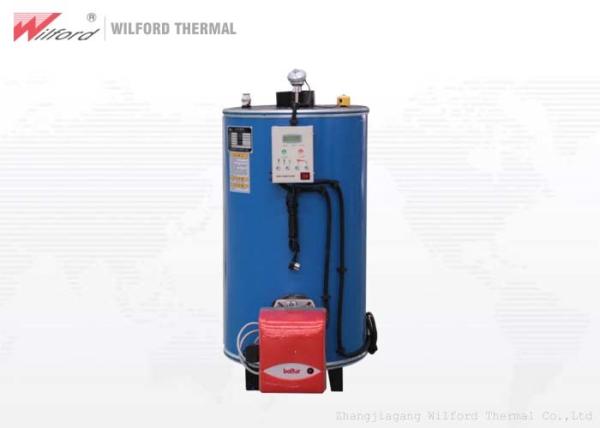

Product picture

High Safety Industrial Hot Water Boiler Compact Structure For Hotel Bath
