No Noise Industrial Electric Hot Water Boiler , Large Hot Water Boiler Electric Heating
No Noise Industrial Electric Hot Water Boiler , Large Hot Water Boiler Electric Heating
No Noise Industrial Electric Hot Water Boiler , Large Hot Water Boiler Electric Heating
No Noise Industrial Electric Hot Water Boiler , Large Hot Water Boiler Electric Heating
No Noise Industrial Electric Hot Water Boiler , Large Hot Water Boiler Electric Heating
No Noise Industrial Electric Hot Water Boiler , Large Hot Water Boiler Electric Heating
Specifications
Brand Name :
WILFORD
Model Number :
CWDR
Certification :
CE
Place of Origin :
China
MOQ :
1 stand
Price :
WILFORD
Payment Terms :
L/C, T/T
Supply Ability :
15 stand/stands per Month
Delivery Time :
15-20 working days
Packaging Details :
Packing in wooden box
Rated thermal power :
0.7-2.1MW
Total heating capacity :
600000-1800000kcal
Rated Working pressure :
Ordinary Pressure
Water inlet diameter :
100-150DN
Water outlet diameter :
100-150DN
Weight :
1650-3960kg
Description

Horizontal & Large Size Electric Hot Water Boiler For Sale

Product introduction

  • No noise, no pollution, clean and sanitary, is true real green products.

  • Using high-quality stainless steel or alloy steel materials electric heating tubes to ensure long-term boiler safety operation.

  • Professional standard control cabinet-advanced technology - standardized production - high-level protection.

  • Using electricity as heating source ,no smoke output loss ,heating efficiency could up to 98%."

  • Thermal power lower than 300,000 cal-boiler and electrical control all in one design .Thermal power more than 300,000 cal -Boiler and control cabinet is separate .Different design and structure ,easily for installation and maintenance.

  • Clear mark for wiring connecting ,great convenient for local installation.

  • High-performance electromagnetic controller (frequent moves more than one million), build-in branch fuse protection, 120V fuse transformer, power switch directions.

  • Fully automatic operation process control, step-by-step heating element control, recycling start or stop, automatic water supply, automatic alarm for water shortages/over-temperature as well as leakage protection.

  • We could help design heat preservation equipment .Making good use of electric power cost between on-peak and off-peak, heating system economy of running is enhanced.


Parameter

Type CWDR0.7-95/70 CWDR1.05-95/70 CWDR1.4-95/70 CWDR2.1-95/70
Project Unit
Rated thermal power MW 0.7 1.05 1.4 2.1
Total heating capacity 104kcal 60 90 120 180
Rated working pressure MPa Ordinary Pressure
Input Power KW 720 1080 1440 2160
Input current A 1080 1620 2160 3240
Rated Voltage V 3N AC 50HZ 380V
Power×Group KW×P 36×20 36×30 36×40 36×60
Water inlet diameter DN 100 80×2 80×2 150
Water outlet diameter DN 100 100 100 150
Blowoff valve diameter DN 50 50 50 50
Overall size Length mm 2500 2750 3100 3500
Width mm 1350 1500 1750 1960
Height mm 1700 2050 2200 2350
Weight kg 1650 1870 2500 3960


Advantage

1 . New hot water boiler


2 . Green, no pollution


3 . Thermal power is greater than 300,000 kcal


4 . The furnace body and the control cabinet are installed separately


5 . Nearly 98% thermal efficiency


6 . Fully automatic control system, safe

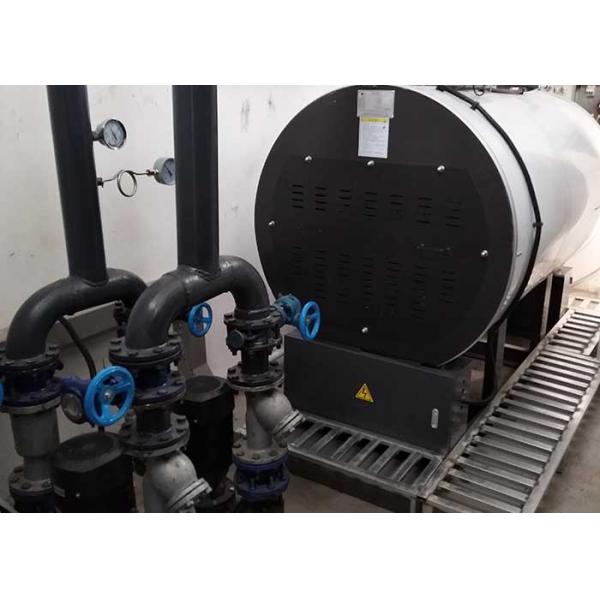

Product picture

No Noise Industrial Electric Hot Water Boiler , Large Hot Water Boiler Electric Heating

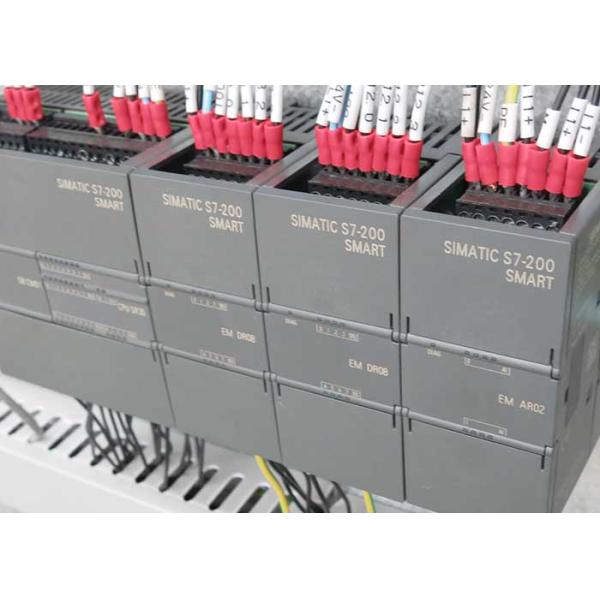

Project case diagram

No Noise Industrial Electric Hot Water Boiler , Large Hot Water Boiler Electric Heating
