Food Industry Vertical 0.7Mpa 500KG Gas Fired Steam Boiler
Food Industry Vertical 0.7Mpa 500KG Gas Fired Steam Boiler
Food Industry Vertical 0.7Mpa 500KG Gas Fired Steam Boiler
Food Industry Vertical 0.7Mpa 500KG Gas Fired Steam Boiler
Food Industry Vertical 0.7Mpa 500KG Gas Fired Steam Boiler
Food Industry Vertical 0.7Mpa 500KG Gas Fired Steam Boiler
Food Industry Vertical 0.7Mpa 500KG Gas Fired Steam Boiler
Food Industry Vertical 0.7Mpa 500KG Gas Fired Steam Boiler
Specifications
Brand Name :
WILFORD
Model Number :
WQ-500
Certification :
CE,ASME
Place of Origin :
China
MOQ :
1 stand
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
25 stand/stands per Month
Delivery Time :
15-20 working days
Packaging Details :
Wooden box package
Rated evaporation :
500KG
Rated working pressure :
0.7Mpa
Staturated steam temperature :
170℃
Usage :
Steam Outputing
Style :
Vertical
Fuel :
Oil-fired,Gas-fired,natural gas,lpg
Pressure :
Low Pressure
Type :
Natural Circulation
Condition :
New
Output :
Steam
Weight :
Consult customer-service staff
After-sales service provided :
Engineers available to service machinery overseas
Dimension(l*w*h) :
Depends
Product name :
Steam boiler
Description

Industrial Vertical 500KG Gas Fired Steam Boiler

Gas Fired Steam Boiler introduction

★ Gas / Diesel Oil Fuel Industrial Steam Boiler adopts Imported combustion engine with high efficiency and low emission.

★ Equipped with Wilford controller, simple operation, automatic operation, effective control of boiler operation.

★ Use wilford controller,simple operation,automatic operation.

★ Adopt high-precision pressure control switch and full-open safety valve to ensure safe operation of the boiler.

★ High quality water pump and high pressure stable feed water to ensure boiler operation.

★ what's more,Equipped with multi-function water level gauge, the user can understand the current water level directly.


Gas Fired Steam Boiler Parameter

Type LSS0.5 LSS1 LSS1.5 LSS2
Project Unit
Rated evaporation t/h 0.5 1 1.5 2
Rated working pressure MPa 0.7/1.0 1.0/1.25 1.0/1.25 1.0/1.25
Staturated steam temperature ℃ 170/193 184/193 184/193 184/193
Fuel consumption Light diesel oil kg/h 35 70 105 140
Natural gas Nm³/h 40 80 120 160
LPG Nm³/h 15 30 45 60
City gas Nm³/h 85 170 265 340
a Main steam valve diameter DN 40 50 65 80
b Safety valve diameter DN 40 50 50 40×2
c Inlet diamater DN 25 25 32 40
d Blowoff Valve diameter DN 25 40 40 40
e Chimney diameter DN 250 350 400 500
Overall size L mm 1830 1980 2045 2550
W mm 1780 1980 2220 2780
H mm 2650 3080 3380 3620
H1 mm 2100 2300 2650 2880
φDiameter mm 1180 1380 1680 1980
Weight T 1.8/2.2 2.3/2.8 3.3/4 4.3/5.2


Gas Fired Steam Boiler Advantage

  • Equipped with multi-function water level gauge

  • High lift water pump,high pressure stable water supply.High-precision pressure control switch.

  • Multiple chain protection,Natural circulation,Full automatic control.

  • Flexible working methods,Vertical structure,save room space and easily installation.

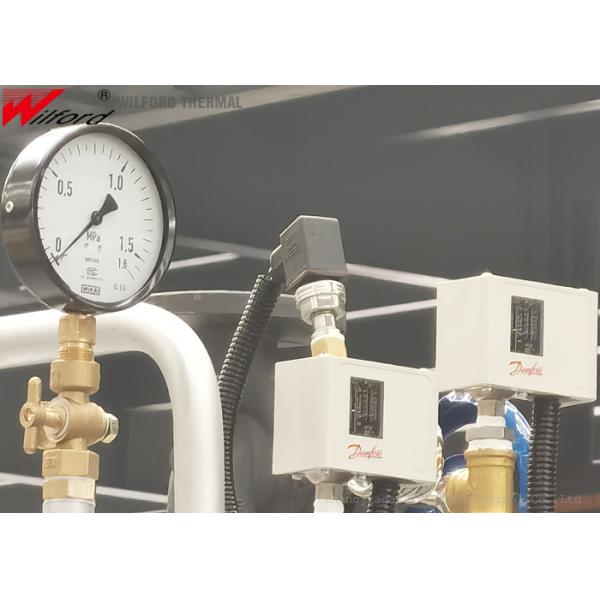

Gas Fired Steam Boiler detail picture

Food Industry Vertical 0.7Mpa 500KG Gas Fired Steam Boiler

Application Scope

  • Food machinery industry: tofu machine, steam box, sterilization pot, packing machine, coating equipment, sealing machine, such as supporting the use of equipment.

  • Biological Chemical Industry: fermentation tank, reaction kettle, sandwich pot, mixer, emulsifying machine supporting the use of equipment.Washing ironing industry: dry washer, dryer and washing machine, dryer, ironing machine, electric iron, and other ancillary equipment.

​

  • Other industries: oil field, car) steam cleaning industry, (hotel, school, dormitory, batch plant) , (Bridges, railways) concrete curing, leisure (salon), sauna bath, heat exchange equipment.

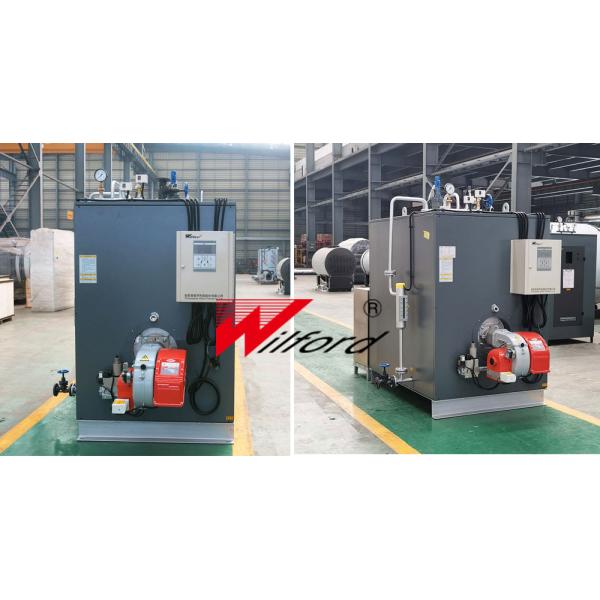

Product picture

Food Industry Vertical 0.7Mpa 500KG Gas Fired Steam Boiler

After-sales service

  • Provide on-site reconnaissance and guide the installation.

  • Commissioning and personnel training.

  • A big team in responsible for the after-sale service and is always at customers’ service.

  • You can get accessories with factory price.

  • We will supply after service 24 hours,customer can contact us any time.

  • Our warranty is 12 months from the date when the Machine start using in cutomer's factory.
