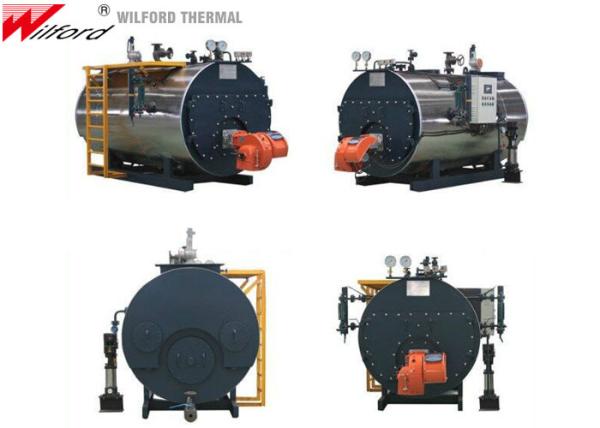

Textile Machine Horizontal Fire Tube 20T/H Gas Oil Boiler
Textile Machine Horizontal Fire Tube 20T/H Gas Oil Boiler
Textile Machine Horizontal Fire Tube 20T/H Gas Oil Boiler
Textile Machine Horizontal Fire Tube 20T/H Gas Oil Boiler
Specifications
Brand Name :
WILFORD
Model Number :
WNS
Certification :
CE
Place of Origin :
China
MOQ :
1 stand
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
25 stand/stands per Month
Delivery Time :
15-20 working days
Packaging Details :
Packing in wooden box
Rated evaporation :
1-20T/h
Rated working pressure :
1/1.25MPa
Type :
Horizontal
Fuel :
Natural gas,Diesel oil
Usage :
Industrial,Steam Outputing
Structure :
Fire Tube
Condition :
New
Dimension(l*w*h) :
Depends
After-sales service provided :
Engineers available to service machinery overseas
Warranty :
1 Year
Product name :
Fully Automatic Fire Tube Industrial Oil Gas Steam Boiler
Application :
food,textile,School,Machinery Industry,eps machine
Description

1-20T/H Steam Capacity Oil / Gas Fired Steam Boiler

Gas/Oil Fried Steam Boiler introduction

  • Oil/gas fired steam boilers,Pre purge function, improve the working conditions of the burner and prolong the service life .

  • Use waveform furnace ,strengthens the disturbance of the smoke and increases the radiation heat transfer area ;

  • Adopt waveform furnace enhance heat transfer and promote the combustion of fuel in the furnace.

  • The heating surface is arranged symmetrically with solid structural strength and reasonable water circulation .

  • Industrial steam boiler have Large steam room and high quality steam.

  • Aboved horizontal structure steam boiler ,with adequate heating area, full heat transfer ,stable operating under load revise ,high combustion efficiency.

​

Gas/Oil Fried Steam Boiler Parameter

Model WNS0.5 WNS1 WNS1.5 WNS2 WNS3 WNS4 WNS6 WNS8 WNS10
Project Unit
Rated evaporation t/h 0.5 1 1.5 2 3 4 6 8 10
Rated working pressure MPa 0.7 1 1 1 1 1.25 1.25 1.25 1.25
Staturated steam temperature ℃ 170 184 184 184 184 193 193 193 193
Fuel consumption Light diesel oil kg/h 35 70 105 140 210 260 390 520 650
Natural gas Nm³/h 40 80 120 160 240 280 420 560 700
LPG Nm³/h 15 30 45 60 90 120 180 240 300
City gas Nm³/h 85 170 250 340 510 680 1020 1360 1700
a Main steam valve diameter DN 40 65 65 80 80 100 125 150 150
b Safety valve diameter DN 40 50 50 40×2 40×2 50×2 65×2 80×2 80×2
c Inlet diamater DN 25 25 40 40 40 50 50 65 65
d Blowoff Valve diameter DN 40 40 40 50 50 50 50 50 50
e Chimney diameter DN 250 300 350 400 450 500 650 800 900
Overall size L mm 3800 4500 4700 4800 5500 6310 7200 7780 8330
L1 mm 3100 3200 3600 3800 4500 5230 5960 6320 7040
W mm 1900 2300 2800 2900 2900 2950 3190 3440 3475
W1 mm 1000 1880 1900 2150 2350 2350 2650 2980 3040
H mm 2100 2680 2950 3250 3880 3120 3610 3700 3800
H1 mm 1800 1980 2070 2250 2450 2530 2850 2920 3050
Weight T 3.3 4.6 5.5 6.3 10.6 13.8 18.5 20 23

Gas/Oil Fried Steam Boiler Parameter

Model WNS8 WNS10 WNS12 WNS15 WNS20
Item unit
Rated evaporation T/h 8 10 12 15 20
Rated working pressure Mpa 1.25 1.25 1.25 1.25
