500kg/h Diesel Oil Or Natural Gas fired Steam Boiler
500kg/h Diesel Oil Or Natural Gas fired Steam Boiler
500kg/h Diesel Oil Or Natural Gas fired Steam Boiler
500kg/h Diesel Oil Or Natural Gas fired Steam Boiler
500kg/h Diesel Oil Or Natural Gas fired Steam Boiler
500kg/h Diesel Oil Or Natural Gas fired Steam Boiler
500kg/h Diesel Oil Or Natural Gas fired Steam Boiler
500kg/h Diesel Oil Or Natural Gas fired Steam Boiler
Specifications
Brand Name :
WILFORD
Model Number :
WQ-500LX
Certification :
CE,ASME
Place of Origin :
China
MOQ :
1 stand
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
25 stand/stands per Month
Delivery Time :
15-20 working days
Packaging Details :
Wooden box package
Product name :
Gas Steam Boiler
Rated evaporation :
500KG
Rated working pressure :
0.7Mpa
Staturated steam temperature :
170℃
Usage :
Steam Outputing
Style :
Vertical
Fuel :
Oil-fired,Gas-fired,natural gas,lpg
Condition :
New
Pressure :
Low Pressure
Type :
Natural Circulation
Description

High Efficiency Natural Gas Fired Steam Boiler For Industry

Product introduction

★ The steam boiler Adopt the German high quality pressure gauge is reliable and accurate.


★ Adopt Italian Baidor burner or Riyaro gas burner or low nitrogen burner.


★ Safety horizontal furnace liner structure, built-in high-efficiency steam-water separation device.

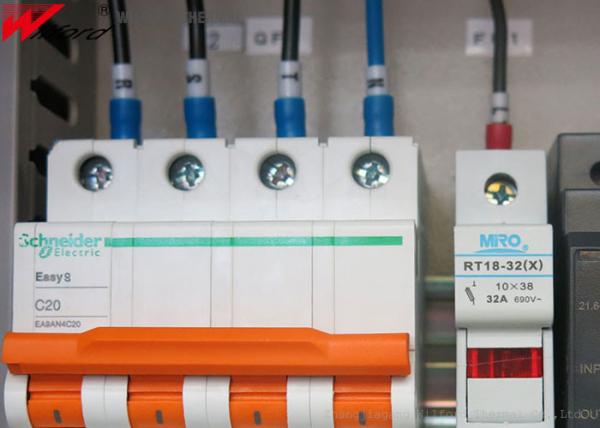

★ Main electrical appliances of Schneider in France.


★ Liquid crystal display controller, which can display operating status, fault alarm, type and other parameters.


★ 500KG 1T gas steam generator is exempt from inspection; optional full premixed surface burner; low nitrogen 30MG; optional Siemens PLC controller.


Parameter

WQ Vertical Oil(gas)Fired Steam Boiler
Type WQ-500 WQ-500LX WQ-1000 WQ-1000LX
Project Unit
Rated evaporation kg/h 500 1000 500 1000
Rated working pressure MPa 0.8 0.8 0.8 0.8
Staturated steam temperature ℃ 174 174 174 174
Fuel consumption Light diesel oil kg/h 38 38 75 75
Natural gas Nm³/h 15 15 30 30
a Main steam valve diameter DN 40 40 50 50
b Safety valve diameter DN 50 50 50*2 50*2
c Inlet diamater DN 25 25 25 25
d Blowoff Valve diameter DN 25 25 25 25
e Chimney diameter DN 250 250 250 250
Overall size L mm 3000 3000 3600 3600
W mm 1450 1450 1800 1800
H mm 2200 2200 2200 2200
Weight kg 1800 1800 2900 2900


Advantage

  • Full combustion, low energy consumption

  • Natural circulation

  • Small heat loss and high thermal efficiency

  • Multiple chain protection

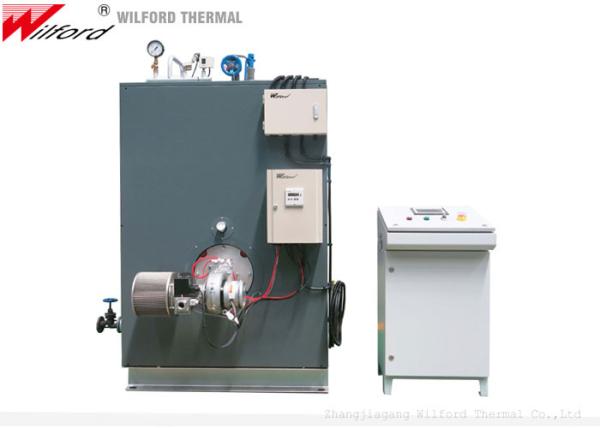

Product detail picture

500kg/h Diesel Oil Or Natural Gas fired Steam Boiler

FAQ

Q : Are you a factory or a trading company?


A : We are a 20 years old industrial boiler factory, specializing in gas oil diesel electric fired boilers.

Q : What is the Warranty for the boilers?

A : Our steam boiler warranty is one year, During the warranty period, any parts damaged, you can get a new parts for free.

Q : How long should we wait for delivery?

A : Usually it will take about 35-45 days for pressured boilers, If you need to change the voltage or pressure, it need more time.


Q : What about your payment term?


A : Usually it would be 30% deposit payment, 70% balance before delivery. We accept T/T, L/C and other payment way.

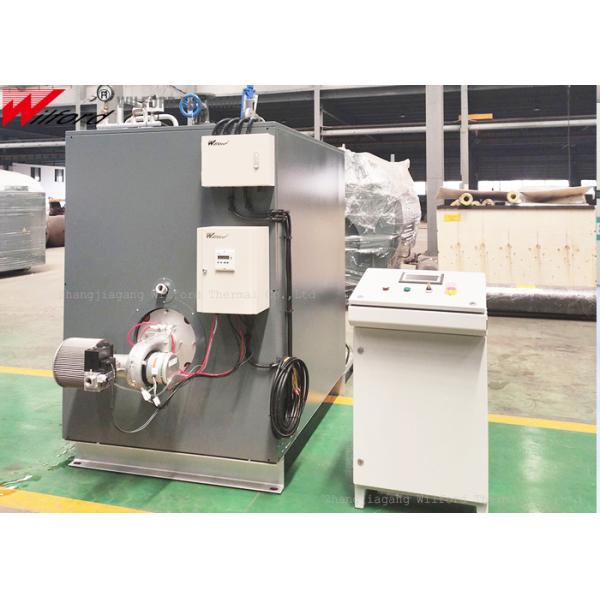

Product picture

500kg/h Diesel Oil Or Natural Gas fired Steam Boiler

After - sales service

  • Point-to-point on-site services

  • Including installation, commissioning, maintenance

  • Stand by 24 hours a day

  • Serve attentinely , Work Sincerely
