Sugar Industry 1.25MPa 1TON Horizontal Gas Steam Boiler Microcomputer Control
Sugar Industry 1.25MPa 1TON Horizontal Gas Steam Boiler Microcomputer Control
Sugar Industry 1.25MPa 1TON Horizontal Gas Steam Boiler Microcomputer Control
Sugar Industry 1.25MPa 1TON Horizontal Gas Steam Boiler Microcomputer Control
Specifications
Brand Name :
WILFORD
Model Number :
WDR
Certification :
CE,ISO9001,ISO CE SGS
Place of Origin :
China
MOQ :
1 stand
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
100 stand/stands per Month
Delivery Time :
15-20 working days
Packaging Details :
Packing in wooden box
Rated evaporation :
0.75-4T/h
Rated working Pressure :
1.0/1.25MPa
Input power :
540-2880KW
Input current :
810-2160A
Dimension(L*W*H) :
Depends
Product Name :
540 - 2880KW Horizontal Industrial Eletric Heating Steam Boiler
Fuel :
electric
Style :
Horizontal
Condition :
New
Output :
Steam
Pressure :
Low Pressure
Type :
Natural Circulation
Usage :
Industrial,home&industrial heating,Steam Outputing
After-sales service provided :
Engineers available to service machinery overseas
Warranty :
1 Year
Thermal efficiency :
98%,96%--98%
Product name :
Electric Heating Steam Boiler
Name :
Automatic Industrial Electric Steam Boiler for Sale
Description

1TON Horizontal Industrial Electric Steam Boiler For Sugar Factory

Horizontal Electric Steam Boiler Product introduction

  • All electrical components with CE and UL marks --ensure safety and long life service.
  • Each heating element uses a concentrated beam flange connection, independently arrangement, simple structure, high mechanical strength, safe, reliable, convenient replacement, long service life."
  • Large steam room , super quality steam."
  • The boiler and control cabinet is separated, so control components could away from heat source .One set or many sets could together for multi-usage."
  • PLC microcomputer programmable control and display screen. Automatic water outlet temperature control settings. Screen displays equipment operating parameters and fault alarm."
  • Electric Steam boiler is a powerful horizontal steam boiler, furnace electrical control cabinet used separately to avoid the aging electrical heating element affecting life.
  • Electric heating tube of boiler is choice of quality products at home in and abroad, the normal service life of about 20,000 hours, nearly 99% thermal efficiency, quiet operation, clean, environmentally friendly.

Horizontal Electric Steam Boiler Parameter

Type WDR0.75 WDR1 WDR1.5 WDR2 WDR3 WDR4
Project Unit
Rated evaporation t/h 0.75 1 1.5 2 3 4
Rated working pressure MPa 1.0/1.25 1.0/1.25 1.0/1.25 1.0/1.25 1.0/1.25 1.0/1.25
Staturated steam temperature ℃ 184/193 184/193 184/193 184/193 184/193 184/193
Input Power KW 540 720 1080 1440 2160 2880
Input current A 810 1080 1620 2160 3240 4320
Rated pressure V 3N AC 50Hz 380V
Power×Group KW×P 36×15 36×20 36×30 36×40 36×60 36×80
Dimension
a Main steam valve diameter DN 40 40 65 65 80 100
b Safety valve diameter DN 2×40 2×40 2×40 2×40 2×40 2×50
c Inlet diamater DN 25 25 25 25 40 40
d Blowoff Valve diameter DN 40 40 40 40 40 40
Overall size L mm 2800 2950 3450 3500 3950 4100
L1 mm 2400 2500 3050 2880 3200 3550
W mm 1800 1900 2180 2000 2100 2300
W1 mm 1550 1600 1430 1880 1980 2120
H mm 1550 1600 2100 2500 2650 2980
H1 mm 1300 1350 1850 1900 2100 2200
Electrical control cabinet size ALength mm 1200 1200 1500 2200 2000(2) 2200(2)
BWidth mm 500 600 600 700 700 700
CHight mm 1800 1800 2000 2000 2200 2200
Weight T 1.6/2.0 1.8/2.2 2.2/2.7 2.8/3.3 3.5/4.1 4.5/5.2

Horizontal Electric Steam Boiler

Sugar Industry 1.25MPa 1TON Horizontal Gas Steam Boiler Microcomputer Control

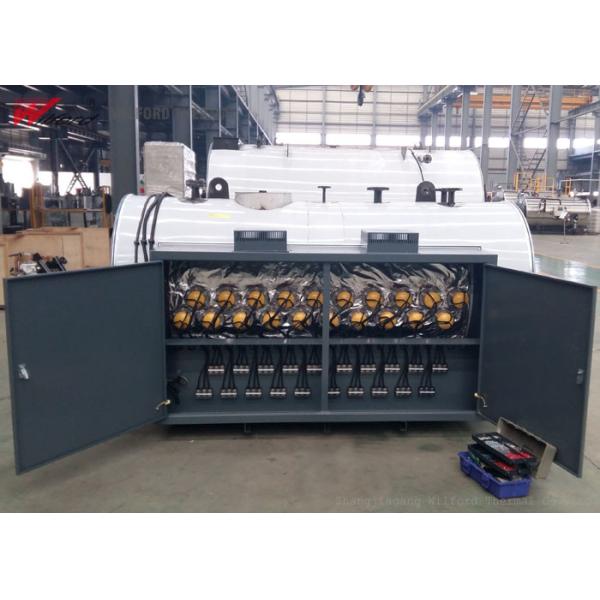

Horizontal Electric Steam Boiler Product picture

Sugar Industry 1.25MPa 1TON Horizontal Gas Steam Boiler Microcomputer Control

Horizontal Electric Steam Boiler Application

  • Products are widely used in garment factories, dry cleaners, washing factories to iron and dry, steam rice, boil water, hospital,

  • school, chemical plant disinfection, laboratory, pharmaceutical factory, food factory drying and disinfection heating, cooking soy

  • milk, heating food;Supporting fermentation tank, reaction kettle, reaction pot sandwich pot, steamed rice cabinet.
