CE 0.7Mpa Textile Industry Energy Efficient Oil Fired Steam Boiler
CE 0.7Mpa Textile Industry Energy Efficient Oil Fired Steam Boiler
CE 0.7Mpa Textile Industry Energy Efficient Oil Fired Steam Boiler
CE 0.7Mpa Textile Industry Energy Efficient Oil Fired Steam Boiler
CE 0.7Mpa Textile Industry Energy Efficient Oil Fired Steam Boiler
CE 0.7Mpa Textile Industry Energy Efficient Oil Fired Steam Boiler
CE 0.7Mpa Textile Industry Energy Efficient Oil Fired Steam Boiler
CE 0.7Mpa Textile Industry Energy Efficient Oil Fired Steam Boiler
Specifications
Brand Name :
WILFORD
Model Number :
LSS
Certification :
ASME,ISO9001,CE
Place of Origin :
China
MOQ :
1 stand
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
10 stand/stands per Month
Delivery Time :
15-20 working days
Packaging Details :
Export wooden Packing
Rated evaporation :
50-500k/h
Rated working pressure :
0.7Mpa
Staturated steam temperature :
170℃
Fuel :
Light diesel oil
Dimension(L*W*H) :
Depends
Usage :
chemical,medical,food,washing etc.
Style :
Vertical
Condition :
New
Output :
Steam
Type :
Natural Circulation
After-sales service provided :
Engineers available to service machinery overseas
Structure :
Water Tube
Dimension(l*w*h) :
Depends on the boiler capacity
Warranty :
1 Year
Product name :
Oil Gas Fired Steam Boiler
Thermal efficiency :
92%--98%
Design fuel :
Light Oil,etc,Oil/Gas,Gas
Description

Easily Installation Vertical Industrial Gas/ Oil Fuel Steam Boiler For Textile / Chemical / Food Industry

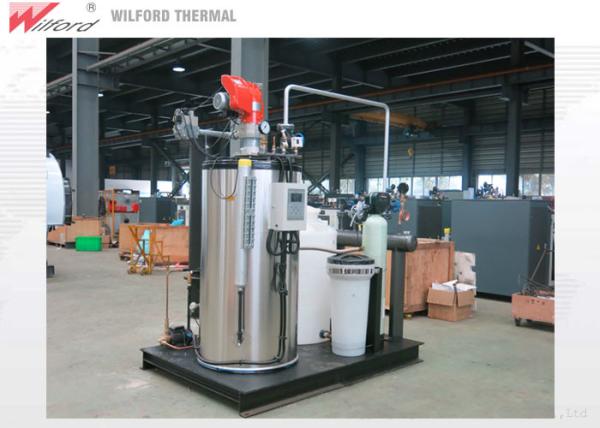

Fully Skid Mounted Steam Boiler Product introduction

  • Skid-mounted boiler system, free of installation. The customer's on-site installation is small, and the production and assembly are all done in the factory.

  • Built-in multi steam and water separation technology,quality steam .

  • With multiple chain protection for water level,steam pressure,overheating ,which is safe and reliable

  • Boiler and all auxiliary parts arrange together on one down base .Free of installation .

  • User only need to arrange for necessary connection as well as electricity supply is enough .All system on one down base ,easily for move .

  • Boiler water volume is small, with quick start of cold furnace,which can realize temperature and pressure rise during a short period of time.

  • It adopts microcomputer control program with multiple protection chains and high security.

Fully Skid Mounted Steam Boiler Parameter

Model LSS0.05-0.7-Y.Q LSS0.1-0.7-Y.Q LSS0.125-0.7-Y.Q LSS0.2-0.7-Y.Q LSS0.25-0.7-Y.Q LSS0.3-0.7-Y.Q LSS0.5-0.7-Y.Q
Project Unit
Rated evaporation Kg/h 50 100 125 200 250 300 500
Rated working pressure MPa 0.7 0.7 0.7 0.7 0.7 0.7 0.7
Staturated steam temperature ℃ 170 170 170 170 170 170 170
Fuel consumption Light diesel oil kg/h 3.5 6.8 8.5 14 16 20 33
Natural gas Nm³/h 3.5 7 8.75 15 19 22 36.5
LPG Nm³/h 1.5 3 3.8 6 7.5 9 14.5
City gas Nm³/h 8.5 18 22.5 34 43 52 88
Water capacity L 29 49.3 49.6 49.5 49.5 49.5 49.6
a Main steam valve diameter DN 15 25 25 32 32 32 50
b Safety valve diameter DN 20 20 20 25 25 25 40
c Inlet diamater DN 15 15 15 15 15 15 15
d Blowoff Valve diameter DN 20 20 20 25 25 25 25
Chimney diameter DN 80 125 125 150 150 150 250
Overall size L mm 820 880 900 1400 1500 1500 1800
W mm 890 1100 1150 1000 1100 1200 1300
H mm 1600 1800 1900 1000 2200 2200 2350
φDiameter mm 600 650 650
Weight kg 180 220 240 850 1150 1200 1680

Fully Skid Mounted Steam Boiler detail drawing

CE 0.7Mpa Textile Industry Energy Efficient Oil Fired Steam Boiler

Fully Skid Mounted Steam Boiler Application

  • It is widely used in hospitals, schools, textile mills, garment factories, clothing supermarkets, garment factories, dry cleaners, restaurants.

  • Hotels, restaurants, hotels, canteens, restaurants, food factories, beverage factories, soy products factories, canneries, wineries.

  • Pharmaceutical factory, packaging factory, building material factory, paint factory, beauty salon, bath center, sauna, steam room, baby swimming pool, etc.
