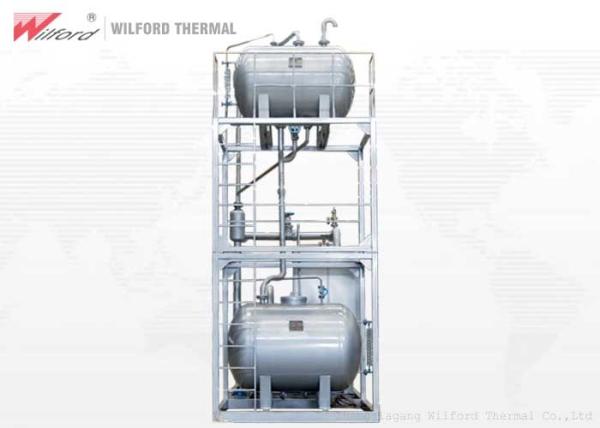

Electric Thermal Oil Heater Compact Structure For Waterproof Material Industry
Electric Thermal Oil Heater Compact Structure For Waterproof Material Industry
Electric Thermal Oil Heater Compact Structure For Waterproof Material Industry
Electric Thermal Oil Heater Compact Structure For Waterproof Material Industry
Specifications
Brand Name :
WILFORD
Model Number :
YDW
Certification :
CE
Place of Origin :
China
MOQ :
1 stand
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
10 stand/stands per Month
Delivery Time :
15-20 working days
Packaging Details :
Export wooden Packing
Rated thermal power :
24-180KW
oil capacity :
0.015-0.14m³
Working pressure :
0.22-0.4Mpa
Design pressure :
0.6-0.7Mpa
Whole installed capacity :
28-190KW
Component power per group :
12-30KW
Description

Electric Thermal Oil Heater For Waterproof Material Industry

Product introduction

  • Special industrial boiler - electric heating heat transfer oil furnace, which mainly provides high temperature heat energy to one or more heat equipment.

  • It consists of an organic heat carrier furnace, a hot oil pump, an expansion tank, an explosion-proof electric heater and the like.

  • The hot oil pump circulates the heat carrier to transfer heat to one or more heating devices.

  • It raises the temperature of the heated object and allows continuous transmission of heat.

  • It has automatic power switching function, and uses a microcomputer controller and high-quality main electrical appliances.

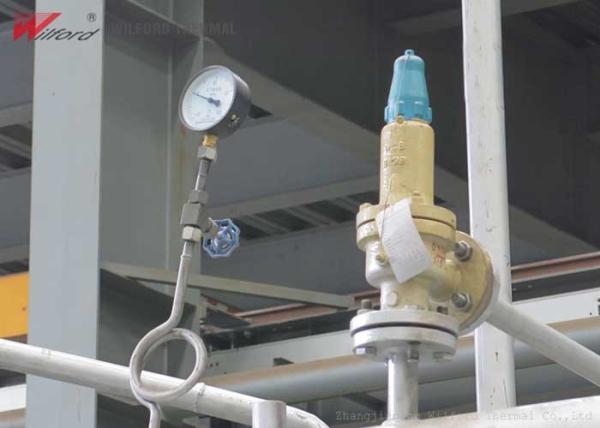

  • Install safety monitoring device, safe and worry-free.


Parameter

parameter name Unit YDW-24 YDW-36 YDW-54 YDW-72 YDW-120 YDW-180 YDW-240
Rated thermal power kw 24 36 54 72 120 180 240
oil capacity m³ 0.015 0.023 0.03 0.081 0.1 0.14 0.18
Working pressure mpa 0.22 0.22 0.22 0.32 0.3 0.4 0.4
Design pressure mpa 0.6 0.6 0.6 0.6 0.6 0.7 0.7
Whole installed capacity kw 28 40 60 80 130 190 250
Medium highest temperature ℃ 320 320 320 320 320 320 320
Component power per group kw 12 12 18 24 30 30 30
Medium circulation volume m³/h 8 8 8 12.5 20 20 40
DN of oil outlet mm 50 50 50 50 65 65 65
Voltage V 380 380 380 380 380 380 380
External dimension mm 1800*600*1650 1800*850*1650 1800*850*1650 1900*1200*1800 2200*1200*2200 2200*1200*2200 2200*1200*2200


Advantage

1 . Armored design, compact structure


2 . Precise control of working temperature


3 . Optional explosion-proof model


4 . Large heat exchange area, continuous heat transfer


5 . The hot oil pump circulates the heat carrier


6 . Long service life
